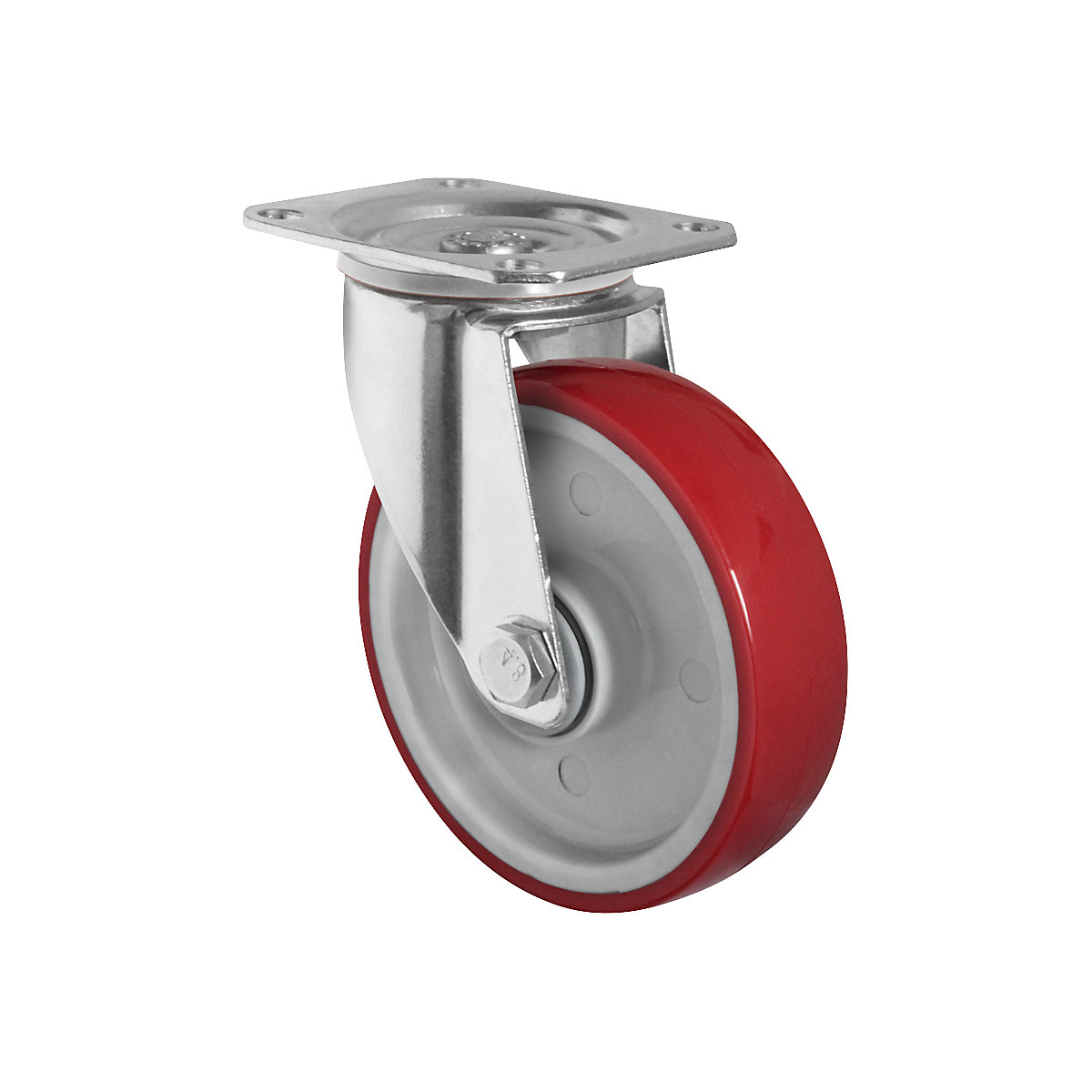

EUROKRAFTbasic – PU tyre, red on nylon rim wheel Ø x width 100 x 32 mm, 2+ items
- Quiet running
- Does not damage floors, non-marking
- Largely resistant against many thinned oils, greases, and chemicals
- Hardness 95 Shore A
- Temperature resistant from –40 °C to +80 °C
3 year guarantee
Non-marking
Low rolling resistance
Ref.: 568274 10
EUROKRAFTbasic – PU tyre, red on nylon rim, wheel Ø x width 100 x 32 mm, 2+ items, fixed castor
Properties
Structure: fixed castor, Weight [kg]: 0.54
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Fast delivery
We will be happy to help you
export@kaiserkraft.com
Monday to Friday from 8.00 am to 4.00 pm CET
Product description
Sheet steel housing, electrolytically zinc plated in blue. Swivel bearing with dual turntable bearing. Ball bearing.
- Quiet running
- Does not damage floors, non-marking
- Largely resistant against many thinned oils, greases, and chemicals
- Hardness 95 Shore A
- Temperature resistant from –40 °C to +80 °C
3 year guarantee
Non-marking
Low rolling resistance
Technical data
| Supplied | assembled |
|---|---|
| Overall height | 128 mm |
| Type of mounting | with top plate |
| Material of rim | nylon |
| Housing material | steel |
| Housing surface | zinc plated by galvanization |
| Hub bore | 8 mm |
| Hub length | 40 mm |
| Fixed castor plate dimensions | 105 x 80 mm |
| Swivel castor plate dimensions | 105 x 80 mm |
| Product type | transport castors |
| Wheel width | 32 mm |
| Wheel diameter | 100 mm |
| Wheel bearing | ball bearing |
| Wheel material | polyurethane (PU) |
| Screw hole spacing | 80/77 x 60 mm |
| Screw hole diameter | 8 mm |
| Shore hardness | 95 A |
| Temperature resistance | –40 °C to +80 °C |
| Max. load at 4 km/h | 150 kg |
