Ref.: 568385 10

TPE tyres on PP rim, ESD, 2+ items wheel Ø x width 160 x 40 mm

TPE tyres on PP rim, ESD, 2+ items

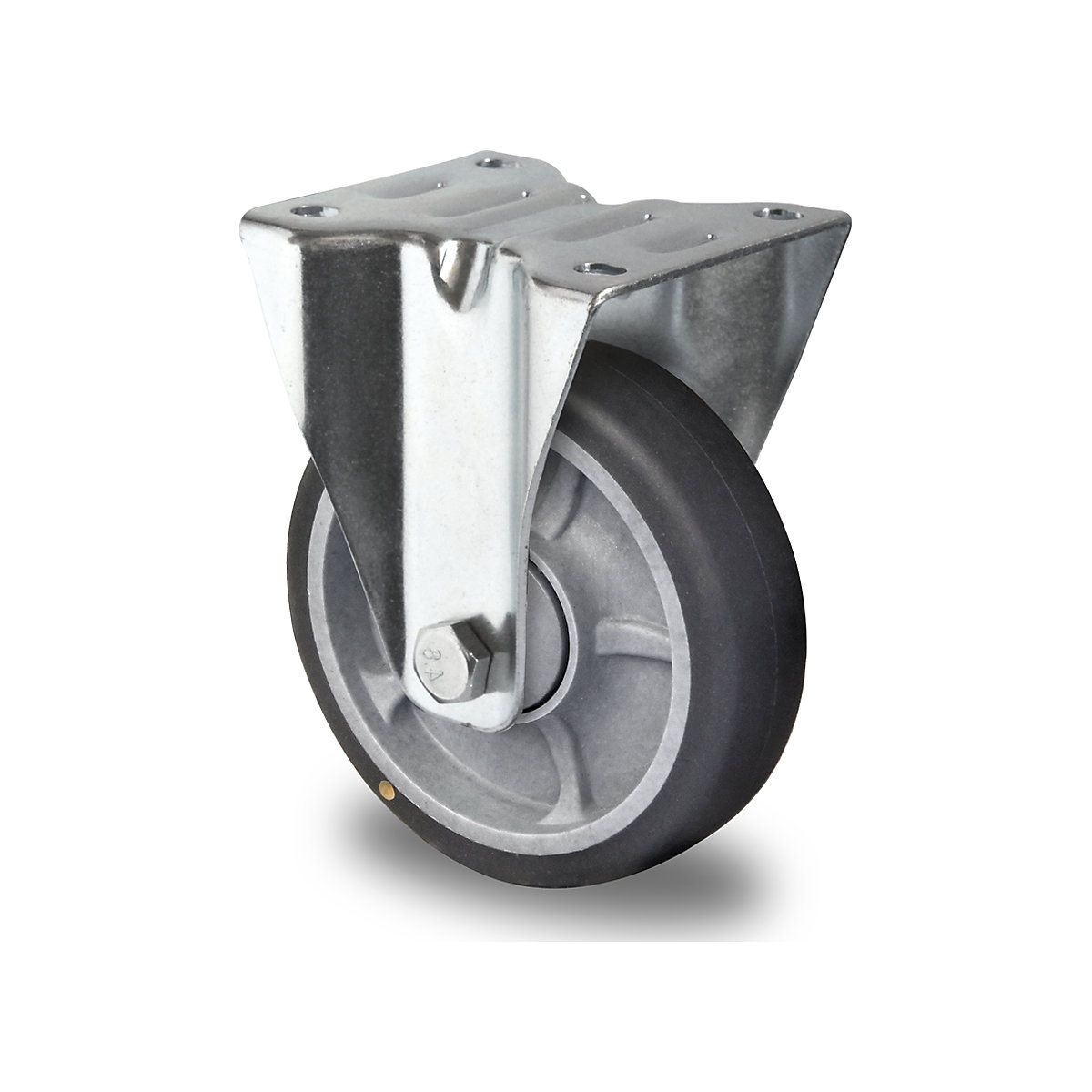

TPE tyres on PP rim, ESD, 2+ items, wheel Ø x width 160 x 40 mm, fixed castor-0
TPE tyres on PP rim, ESD, 2+ items, wheel Ø x width 160 x 40 mm, swivel castor-1
TPE tyres on PP rim, ESD, 2+ items, wheel Ø x width 160 x 40 mm, fixed castor-2
TPE tyres on PP rim, ESD, 2+ items, wheel Ø x width 160 x 40 mm, swivel castor with double stop-3

fixed castor

51,90 €
Price / item (Ex. VAT)


Product description
With an electrical conductivity up to a resistance of 0 – 5,000,000 ohm.
Sheet steel housing, electrolytically zinc plated in blue. Swivel bearing with dual turntable bearing. Small plastic thread guard. Ball bearings.
TPE wheels may leave oily marks on open-pored, unsealed and absorbent flooring.
We are happy to advise you about use on parquetry, stone or other sensitive flooring.
  • ESD model
  • Do not damage floors, non-marking
  • Low rolling resistance, quiet, very smooth running
  • Hardness 65 – 70 Shore A
  • Temperature resistant from –20 °C to +60 °C
Anti-static
This symbol indicates that the product is a conductive version (in relation to electricity or static charges).
Anti-static. This symbol indicates that the product is a conductive version (in relation to electricity or static charges).
Low rolling resistance
Low rolling resistance
Non-marking
Non-marking
Technical data
Wheel diameter160 mm
Wheel materialrubber – thermoplastic rubber elastomer (TPE)
Material of rimpolypropylene
Housing materialsteel
Max. load at 4 km/h135 kg
Type of mountingwith top plate
Wheel width40 mm
Overall height195 mm
Wheel bearingball bearing
Temperature resistance–20 °C to +60 °C
Swivel castor offset55 mm
Screw hole diameter12 mm
Hub length59 mm
Hub bore12 mm
Fixed castor plate dimensions135 x 110 mm
Swivel castor plate dimensions135 x 110 mm
Screw hole spacing105 x 84/76 mm
Housing surfacezinc plated by galvanization
Shore hardness65 – 70
Product typeESD castors
Suppliedassembled
Structurefixed castor
Weight1.08 kg
