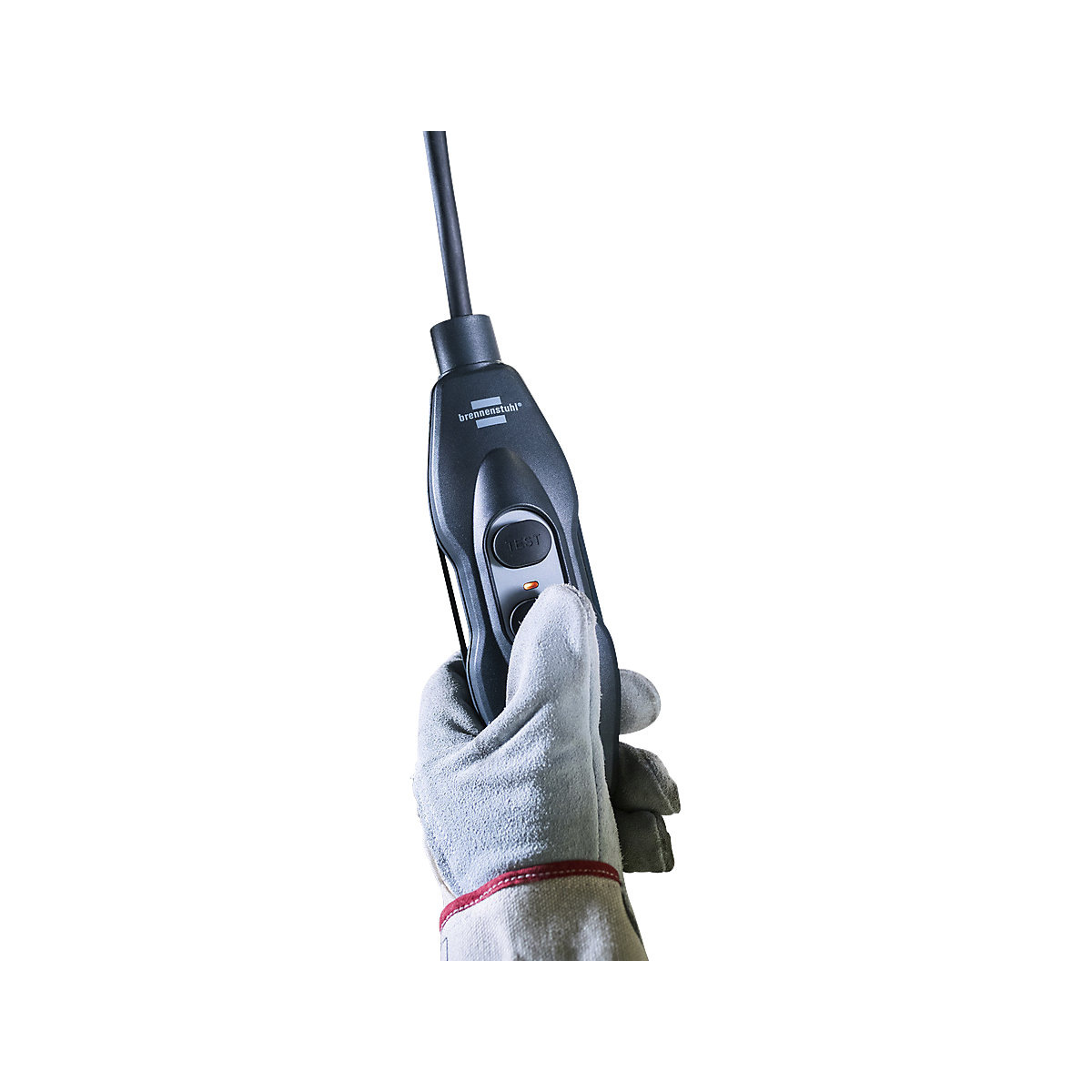

Professional PRCD-S ADVANCED personal protection intermediate switch mobile
IP44
Ref.: 858690 10
Professional PRCD-S ADVANCED personal protection intermediate switch mobile
IP44
IP44
New
on request
Price / item (Ex. VAT)
Availability: 3-4 weeks
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Efficient order processes for business customers
We will be happy to help you
export@kaiserkraft.com
Do you have any questions about this product?on request
Price / item (Ex. VAT)
Product description
- Intermediate switch for cable installation
- For safe operation of electrical appliances
- Mobile personnel protection for deployment on construction sites
- Improved test for protective conductor interruption from as low as approximately 1 kΩ
- Mobile residual current device Type A, all-pole switching
- Fulfils the requirements of DGUV Information 203-006
The mobile Professional PRCD-S ADVANCED personal protection intermediate switch from Brennenstuhl offers maximum safety when operating electrical appliances at sockets whose perfect function is unknown. This intermediate switch for on-site cable installation is specially designed for construction site use and continuous outdoor use and meets the requirements of DGUV Information 203-006 (formerly BGI 608).
The residual current device type A (30 mA, all-pole switching: L/N/PE) features an undervoltage release, which prevents automatic re-switching after voltage recovery. Additional safety functions such as the improved test for protective conductor interruption from approx. 1 kΩ, glove detection (no switching on in case of fault, even with insulating gloves) and a comprehensive function test ensure maximum safety.
The mobile personal protection intermediate switch is tested according to VDE 0661 and can be connected to extension leads, cable reels, power distributors and electrical appliances. It supports cables with a connection cross-section of 1.5 mm² or 2.5 mm² and a cable diameter of 8 – 14 mm.
The residual current device type A (30 mA, all-pole switching: L/N/PE) features an undervoltage release, which prevents automatic re-switching after voltage recovery. Additional safety functions such as the improved test for protective conductor interruption from approx. 1 kΩ, glove detection (no switching on in case of fault, even with insulating gloves) and a comprehensive function test ensure maximum safety.
The mobile personal protection intermediate switch is tested according to VDE 0661 and can be connected to extension leads, cable reels, power distributors and electrical appliances. It supports cables with a connection cross-section of 1.5 mm² or 2.5 mm² and a cable diameter of 8 – 14 mm.
Note: the professional connection must be carried out by a qualified electrician.
Technical data
| Protection type | IP44 |
|---|---|
| Product type | cable drums |
| Supplied | assembled |
| Weight | 0.34 kg |
