Ref.: 679708 10

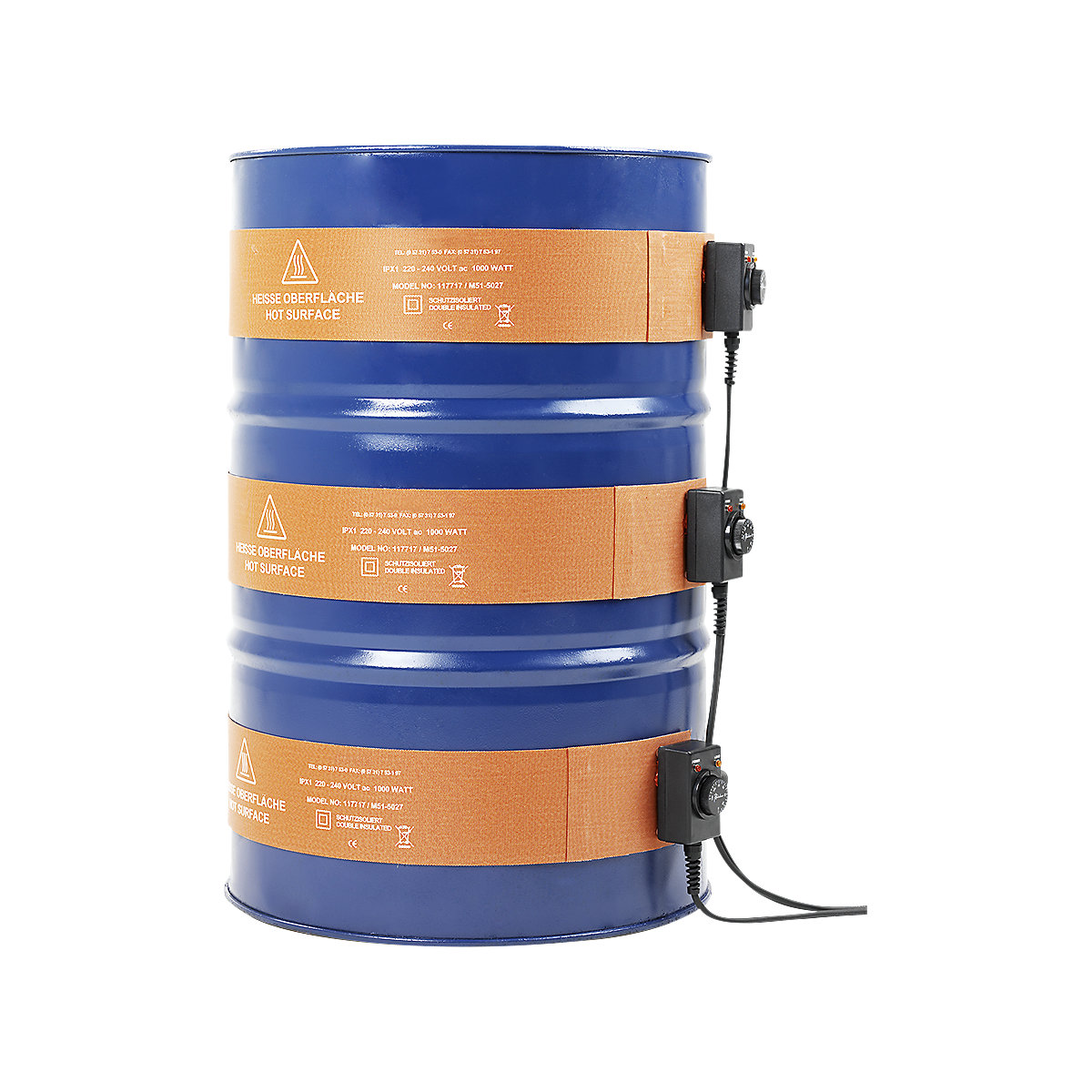

ECO drum heating belt 200 – 220 l steel drums, 1000 W

ECO drum heating belt

silicone, max. 120 °C, IP40

799,00 €
Price / item (Ex. VAT)
Availability: 3-4 weeks
Product description
  • Flexible silicone heating belt for fast heating and maintaining the temperature of media
  • Suitable for 200 – 220 litre steel drums
  • Up to 3 heating belts – also with different heating zones – can be combined
  • Thermostat continuously adjustable from 0 – 120 °C with analogue temperature controller
  • Easy installation using spring lock fastener
  • With 230 V earthed electrical connection and 2 metre connection cable for flexible positioning
Medium output drum heating jacket with analogue temperature controller.
For safe warming and maintaining the temperature of liquids.
Oils, paints, glue, etc. can be easily and quickly brought to and maintained at a temperature required for use.

Suitable for 200 – 220 litre steel drums.
Please note:
Check/observe maximum temperature resistance of the containers (especially when made of plastic).
The temperatures specified are only values to provide orientation.
The temperatures that can be reached depend on many variables – for example, the ambient temperature, the supply voltage, the medium, the material that the container is made of, the container size, whether an agitator is used and many other factors.
Technical data
Suitable for200 – 220 l steel/plastic drums
Purpose of usewarming up/keeping warm
For container circumference1760 mm
Height150 mm
Width1950 mm
Depth100 mm
Control range120 °C
Power1000 watt
Nominal voltage230 V
Protection typeIP40
Test symbolEC Directive (manufacturer's declaration)
Fittingsanalogue temperature controller
Cable length2000 mm
Product typeheating belts
Type of mountingwith tension spring
Materialsilicon
Place of useindoor use
Colourorange
Suppliedassembled
Weight1.2 kg
