Ref.: 679704 10

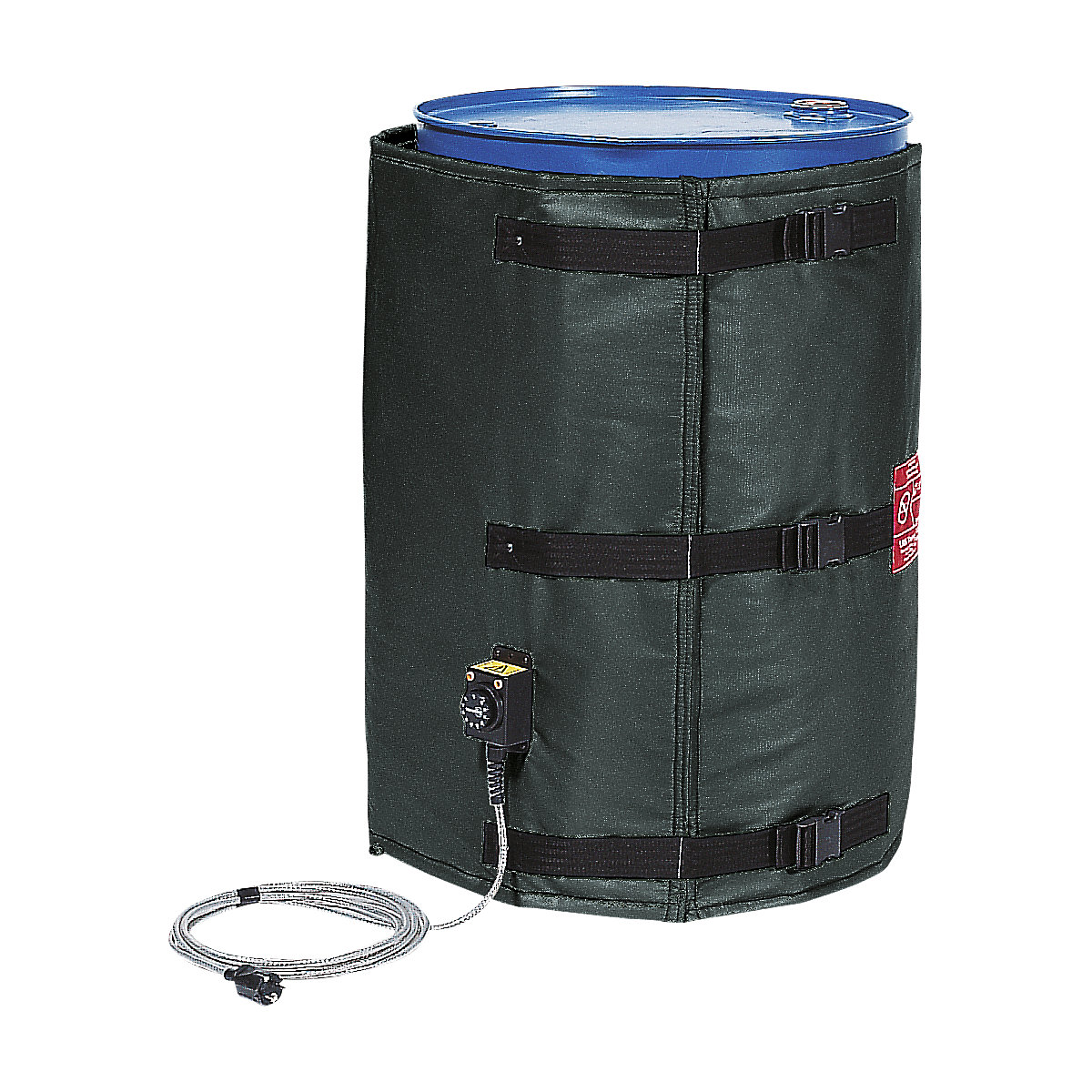

PRO drum heating jacket 200 – 220 l drums, 1100 W
nylon, max. 90 °C, IP44
Ref.: 679704 10
PRO drum heating jacket 200 – 220 l drums, 1100 W
nylon, max. 90 °C, IP44
nylon, max. 90 °C, IP44
1.580,00 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Fast delivery
We will be happy to help you
export@kaiserkraft.com
Do you have any questions about this product?1.580,00 €
Price / item (Ex. VAT)
Product description
- Heating jacket made of fibreglass material with full-surface outer nylon fabric for rapid and safe heating of media
- Infinitely adjustable thermostat (0 – 90 °C) with analogue temperature controller
- With 240 V earthed electrical connection and 5 m connection cable for flexible positioning
- Water repellent and hardwearing surface, certified in accordance with protection class IP44
Drum heating jacket with manually adjustable analogue temperature controller with medium power.
For fast heating of liquids in applications requiring rapid heating up to approx. 50 – 70 °C.
For 200 – 220 l steel and plastic drums.
Quick and easy to fit to the drum using restraint straps.
For fast heating of liquids in applications requiring rapid heating up to approx. 50 – 70 °C.
For 200 – 220 l steel and plastic drums.
Quick and easy to fit to the drum using restraint straps.
Please note:
Check/observe maximum temperature resistance of the containers (especially when made of plastic).
The temperatures specified are only values to provide orientation.
The temperatures that can be reached depend on many variables – for example, the ambient temperature, the supply voltage, the medium, the material that the container is made of, the container size, whether an agitator is used and many other factors.
Check/observe maximum temperature resistance of the containers (especially when made of plastic).
The temperatures specified are only values to provide orientation.
The temperatures that can be reached depend on many variables – for example, the ambient temperature, the supply voltage, the medium, the material that the container is made of, the container size, whether an agitator is used and many other factors.
Technical data
| Suitable for | 200 – 220 l steel/plastic drums |
|---|---|
| Purpose of use | heating |
| For container circumference | 1800 mm |
| Height | 850 mm |
| Width | 1950 mm |
| Depth | 100 mm |
| Control range | 90 °C |
| Power | 1100 watt |
| Nominal voltage | 240 V |
| Protection type | IP44 |
| Test symbol | EU Directive (2014/30/EU), (2014/35/EU), (2011/65/EU) |
| Fittings | analogue temperature controller |
| Cable length | 5000 mm |
| Product type | heater jackets |
| Type of mounting | with restraint strap |
| Material | nylon |
| Finish | fabric |
| Place of use | indoor use |
| Colour | black |
| Supplied | assembled |
| Weight | 5 kg |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
| Criteria | Weighting | Score |
|---|---|---|
| 30% | 5.4 | |
| 30% | 1.5 | |
| 25% | 2.0 | |
| 10% | 4.0 | |
| 5% | 3.5 | |
| Overall score | 3.6 | |
