Ref.: 654993 10

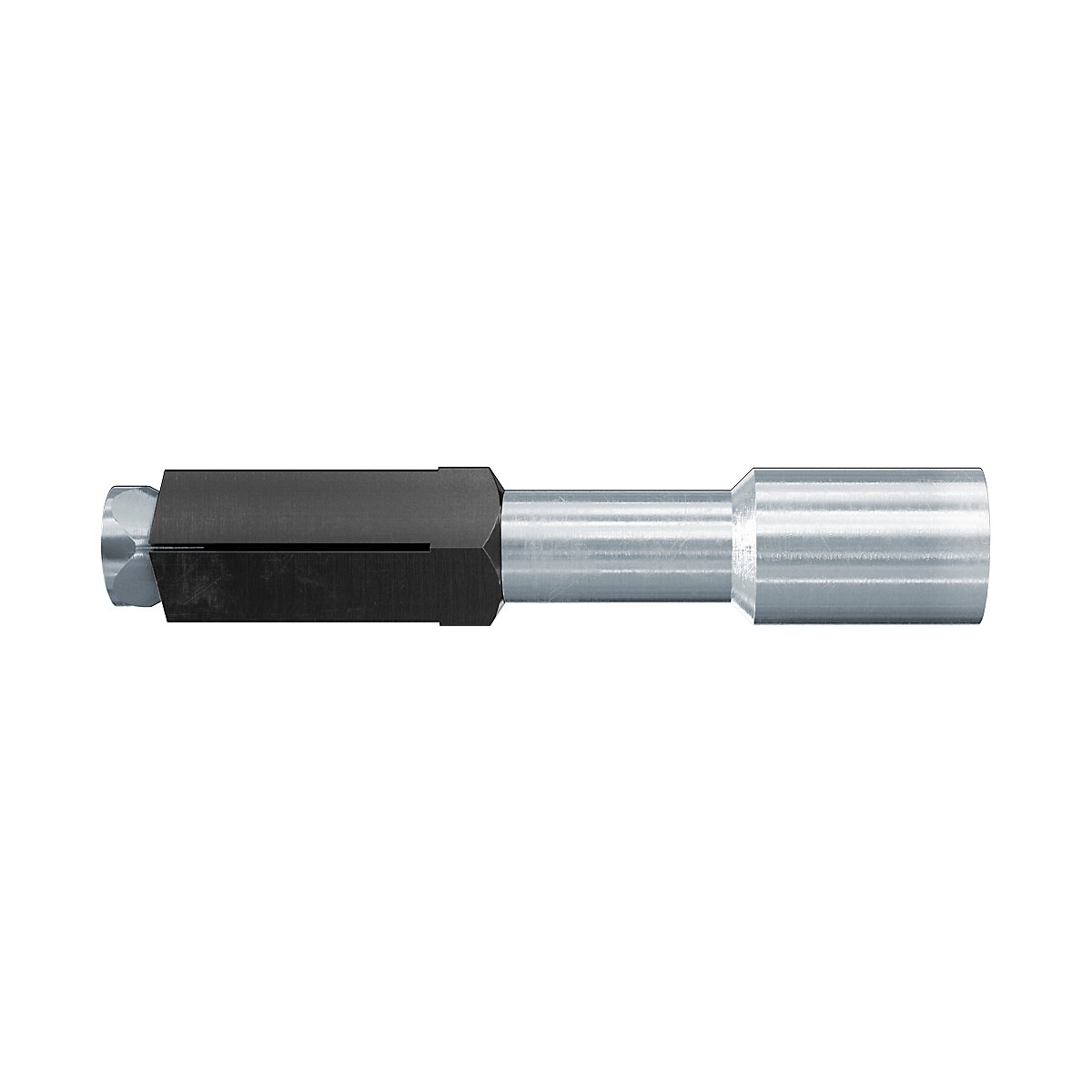

Aerated concrete anchor FPX – fischer external Ø 14 mm, pack of 25

Aerated concrete anchor FPX – fischer

min. screw-in depth 10 mm

Min. screw-in depth [mm]
pack of 25 only
163,00 €
Price / pack (Ex. VAT)
6,52 €
/ each
You will receive 25 items
Availability: 5-8 Working Days
Product description
  • The FPX-I is easy to tighten by using a hexagonal key with a cordless screwdriver or ratchet, thereby offering maximum ease of installation
  • The displacement controlled expansion of the anchor with its hexagon socket ensures secure and uniform installation without requiring excessive force
  • The unique 4-fold expansion of the FPX-I prevents the anchor from rotating in the drill hole by means of a square expansion sleeve, ensures high tensile and shear loads are absorbed, and therefore results in fewer installation points
  • The release of the hexagonal key provides an automatic check that the anchor is set correctly with every setting process
  • The first steel anchor with an ETA approval and fire protection for installation in aerated concrete can also be used for other installations relevant to safety

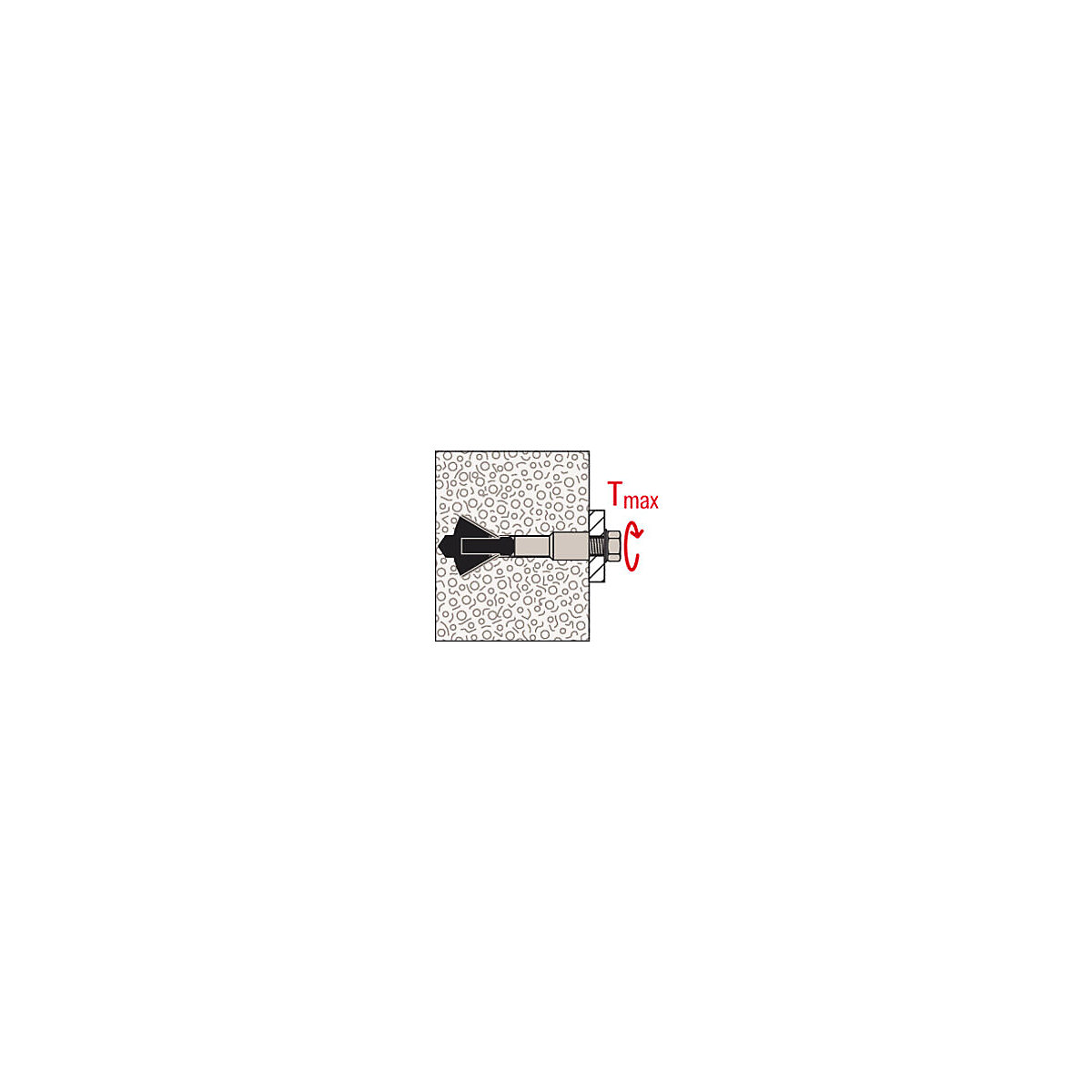

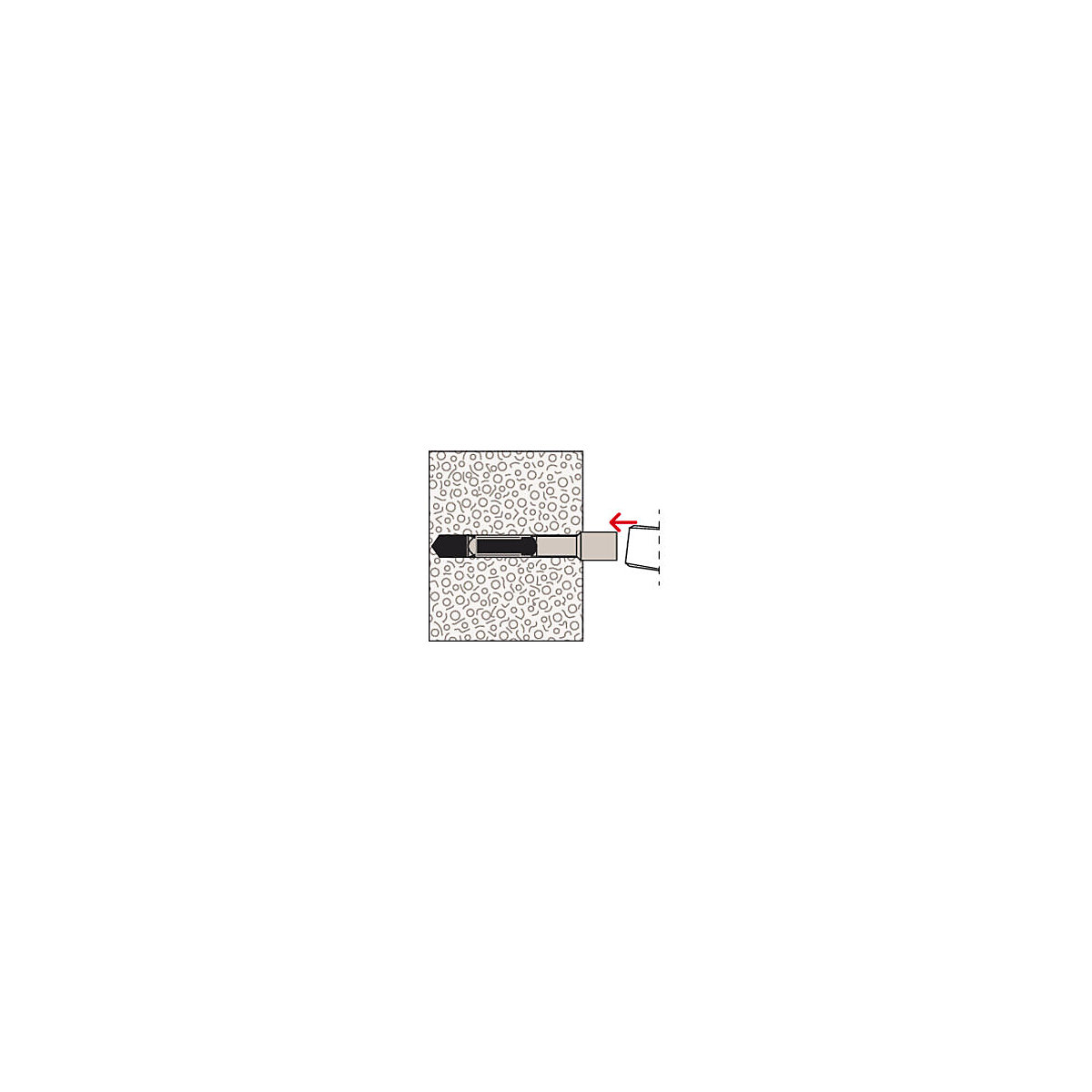

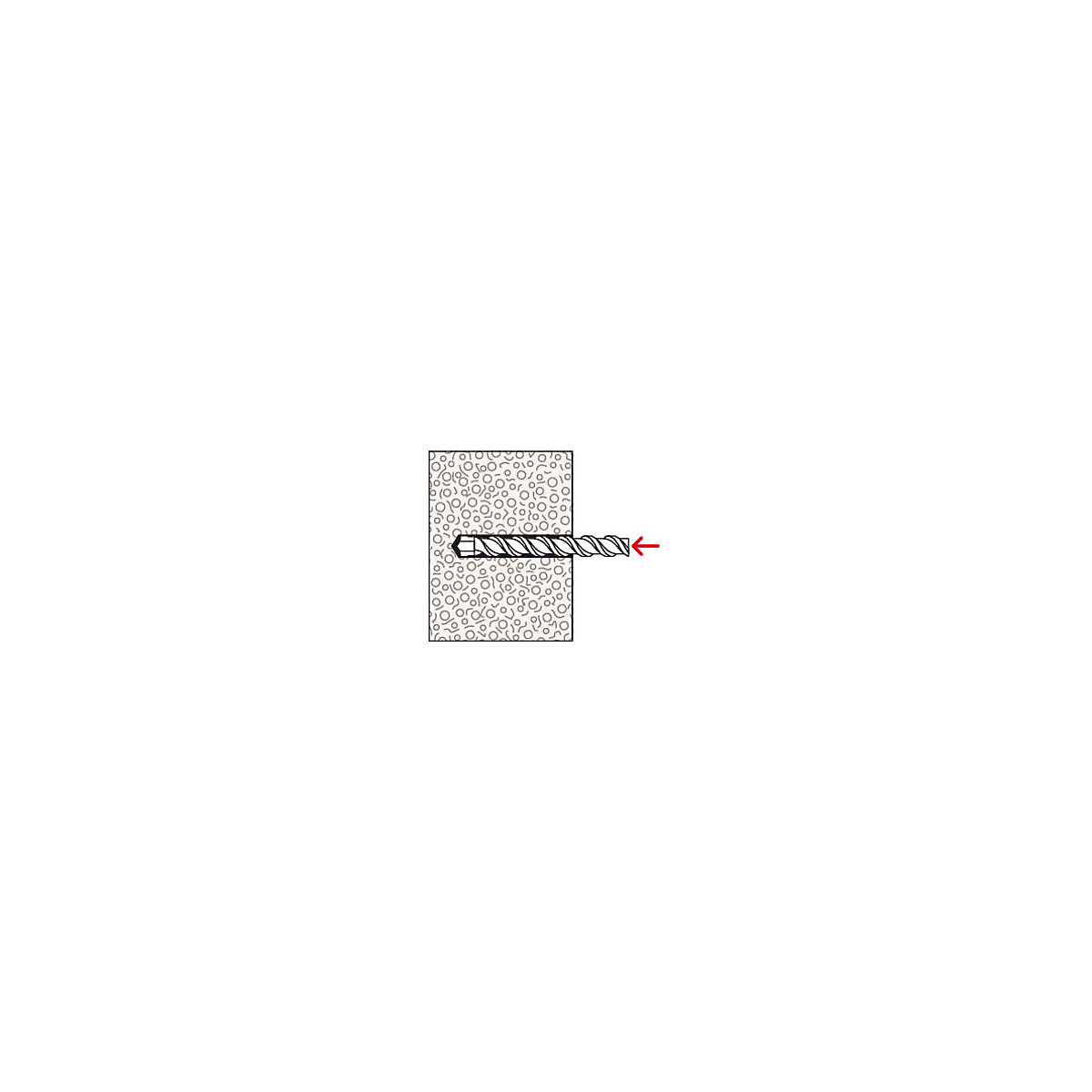

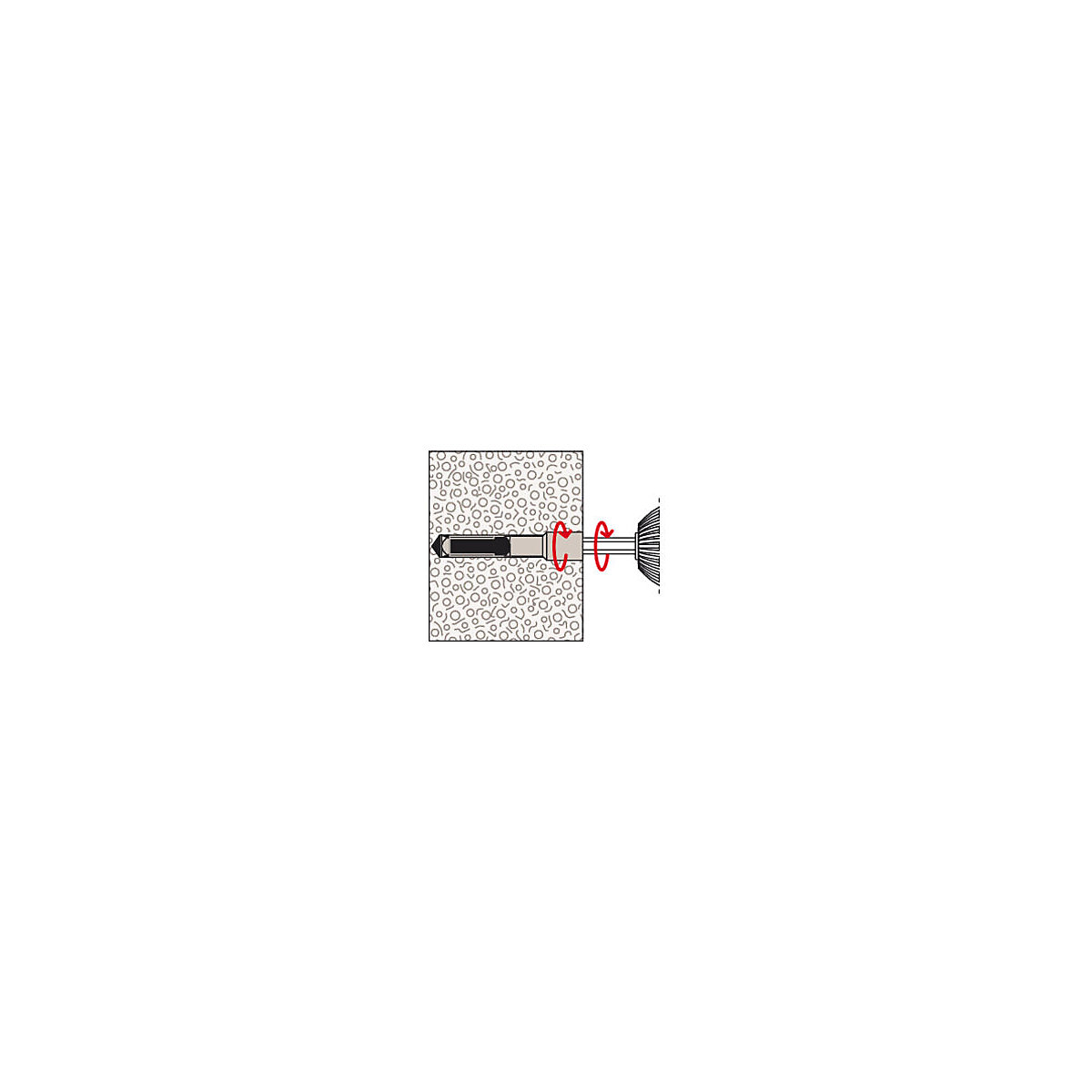

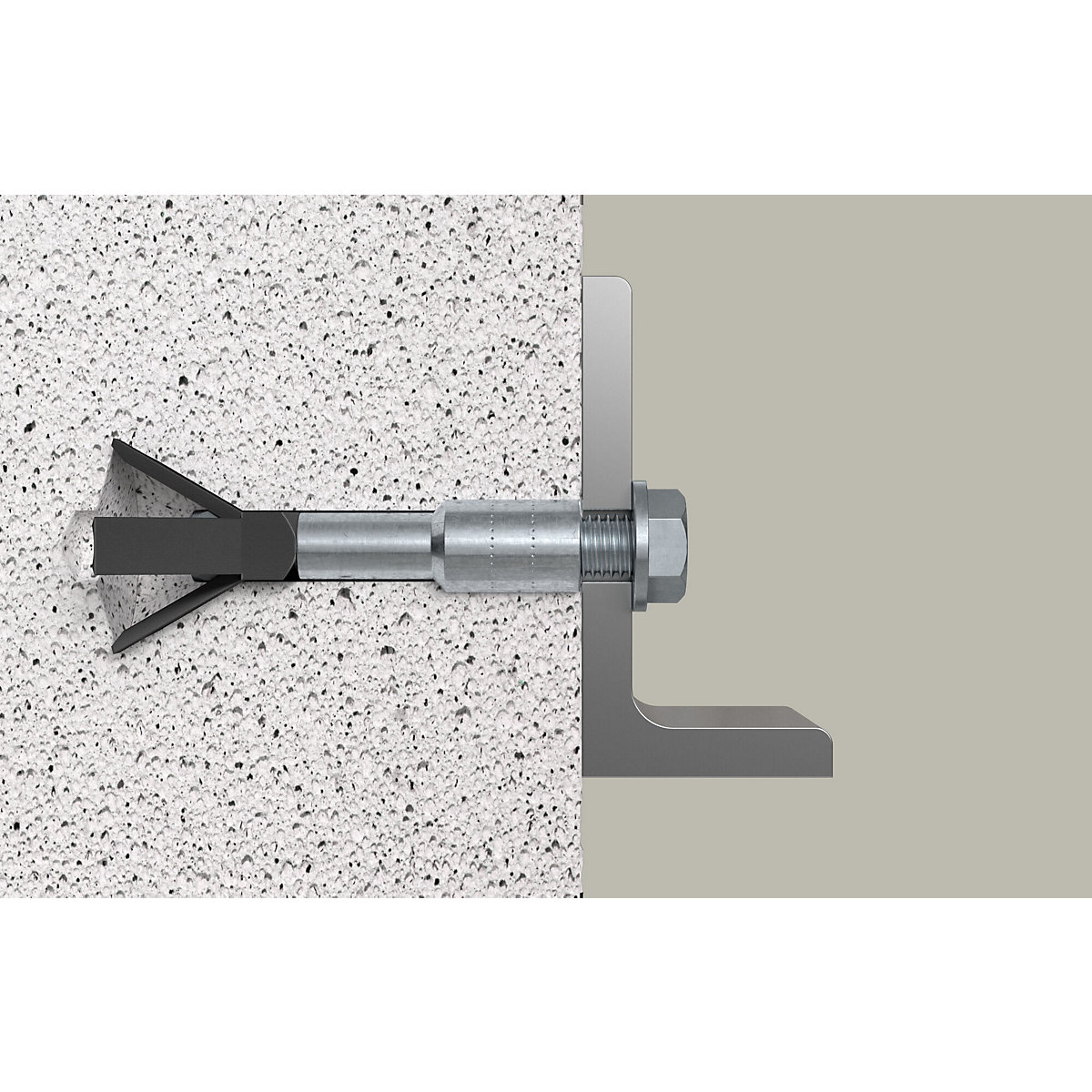

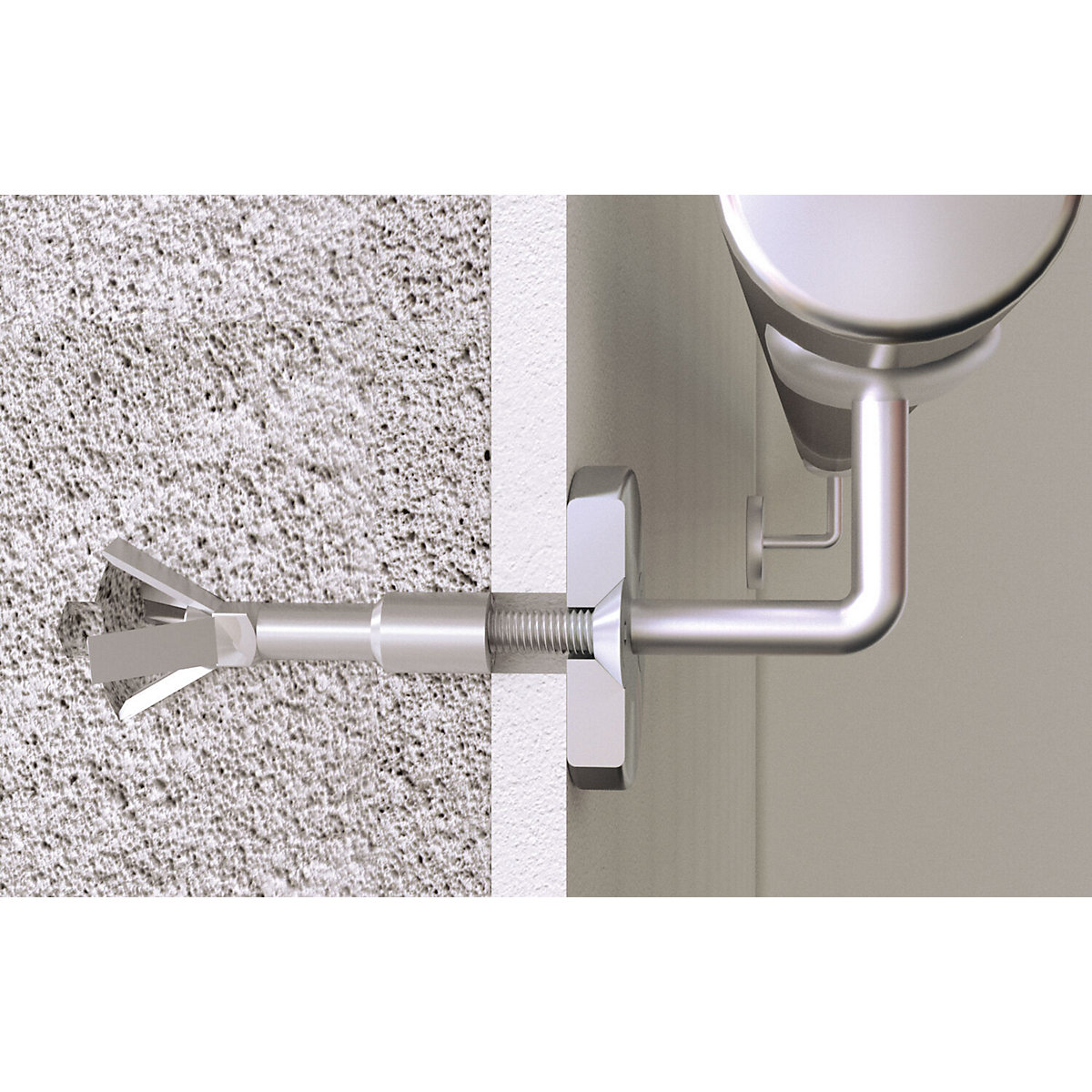

The fischer FPX-I aerated concrete anchor is made of zinc plated steel. After pre-drilling a hole, it is easy to drive the FPX-I in with a hammer. The drill hole does not need to be cleaned. The fischer aerated concrete anchor is tightened by using a hexagonal key with a cordless screwdriver or a ratchet. This pulls the cone into the expansion sleeve. The four wings thereby create an undercut in the drill hole. After expansion, the hexagonal key is automatically released. The fischer FPX-I aerated concrete anchor is ideal for installing suspended ceilings, banisters or kitchen cupboards in aerated concrete.

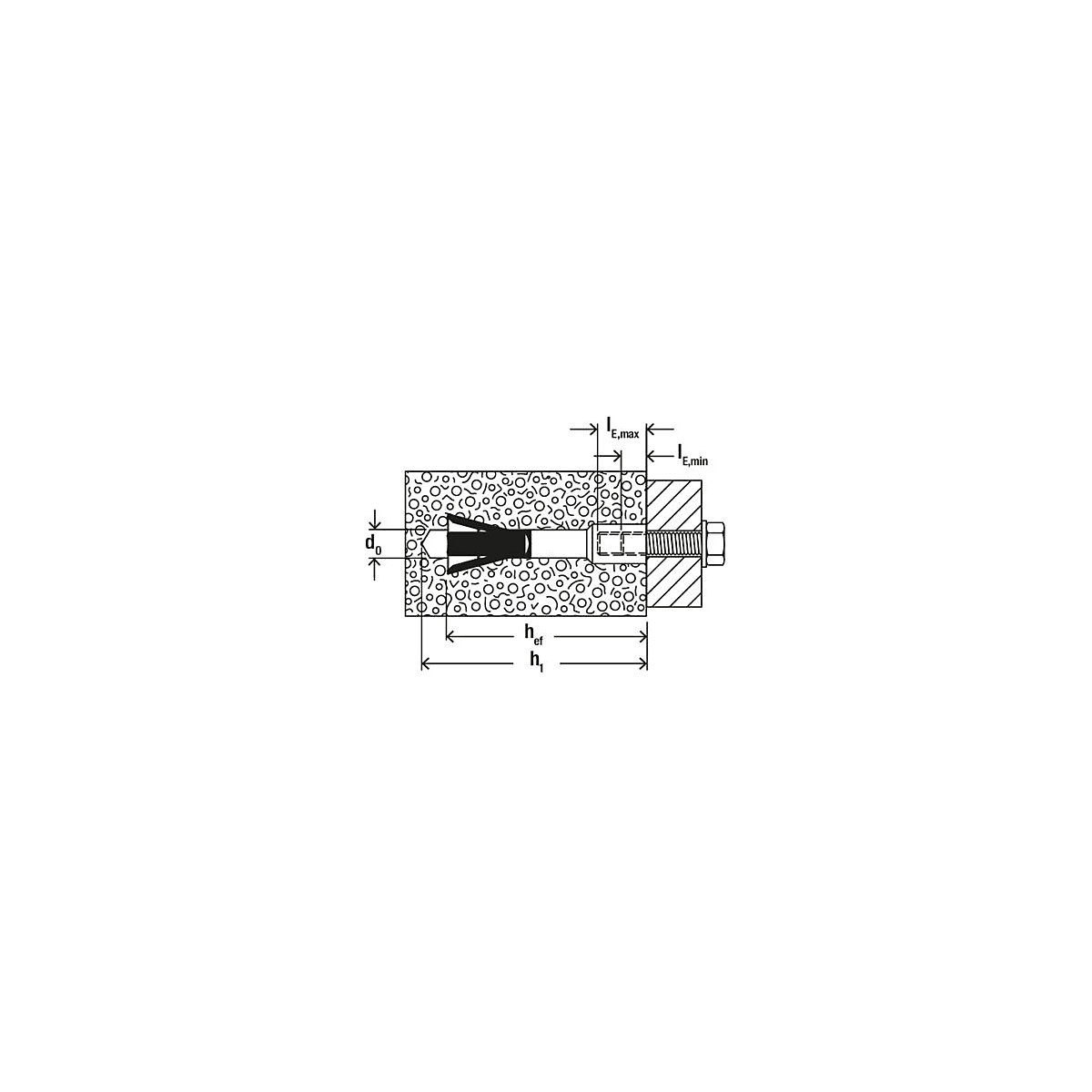

Technical data
Diameter14 mm
Nominal drill hole diameter10 mm
Plug length75 mm
Max. screw-in depth15 mm
Min. drill hole depth for pre-assembly95 mm
Min. anchoring depth70 mm
Product typebolt anchors
Suppliedpre-assembled, final assembly by customer
Min. screw-in depth10 mm
Weight13.45 kg
