Ref.: 655005 10

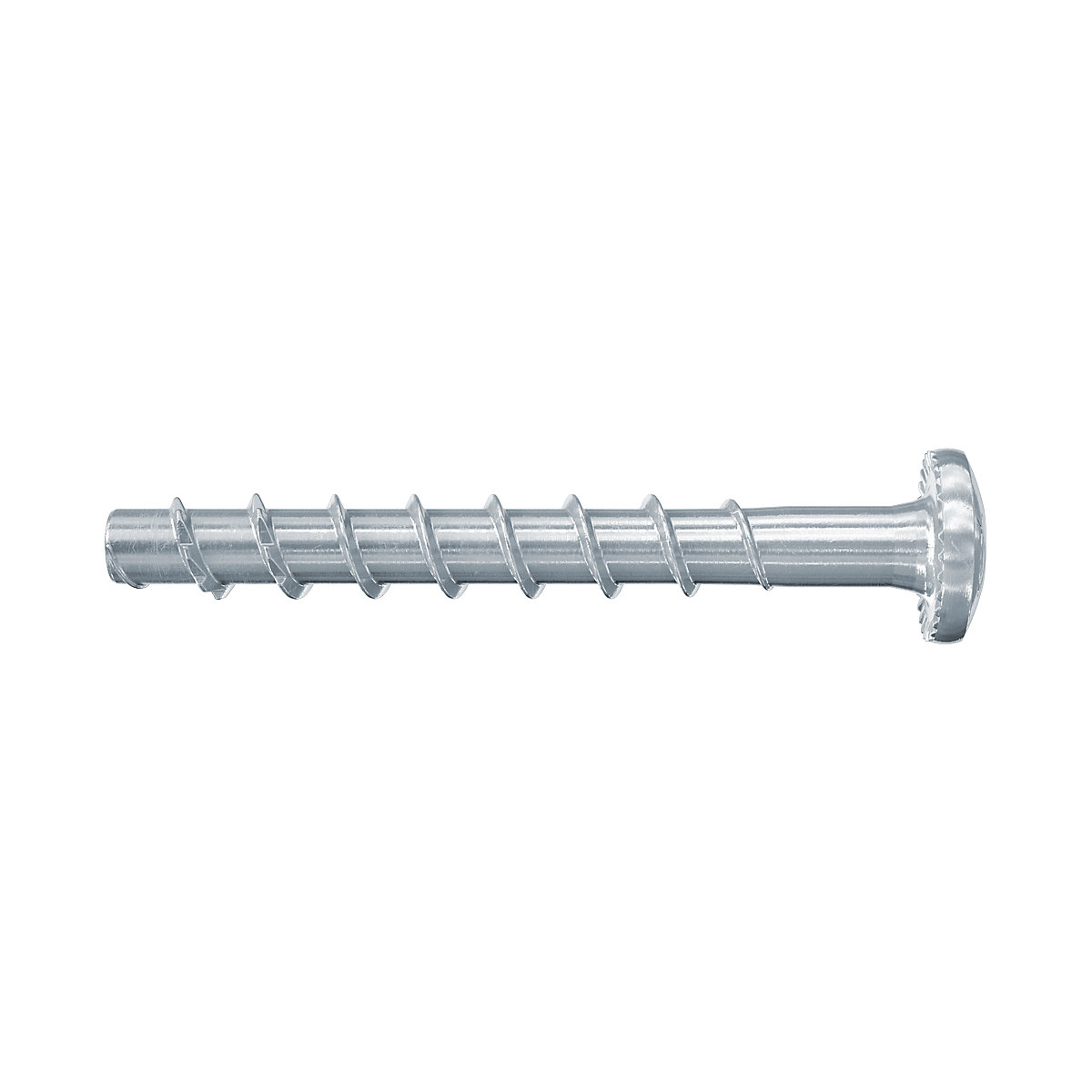

ULTRACUT FBS II 6 LP concrete screw – fischer with large panhead, pack of 100

ULTRACUT FBS II 6 LP concrete screw – fischer

length 40 mm

pack of 100 only
137,00 €
Price / pack (Ex. VAT)
1,37 €
/ each
You will receive 100 items
Availability: 5-8 Working Days
Product description
  • The first concrete screw with a diameter of 6 and a variable screw-in depth offers a high degree of flexibility and can be adapted to absorb the applicable loads
  • The ETA assessment (option 1) covers use in cracked and non-cracked concrete for the highest safety requirements
  • The first concrete screw with a diameter of 6 with an ETA rating for seismic performance category C1 for additional safety
  • The FBS II 6 has been approved for anchoring non load bearing systems multiple times, therefore making it ideal for anchoring pipelines and cable trays in prestressed concrete hollow core slabs

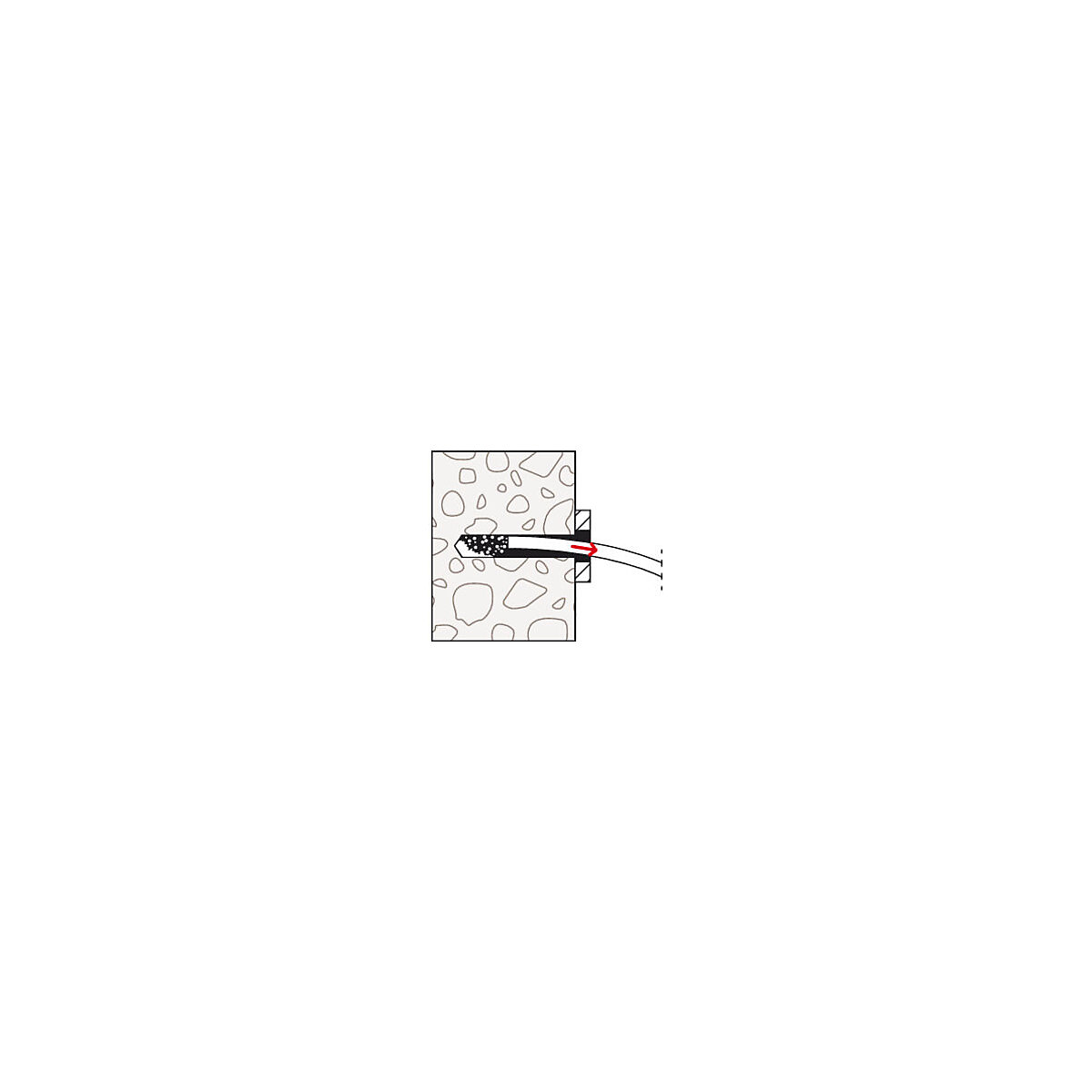

  • When installed vertically (in ceilings and floors), the drill hole does not need to be cleaned. When drilling into the floor, the depth of the drill hole must be 3x the drill diameter
  • The differently shaped heads offer maximum flexibility and optimum adaptation for a wide range of uses
  • The concrete screw with pan head and large pan head satisfies the requirements of visually demanding installation

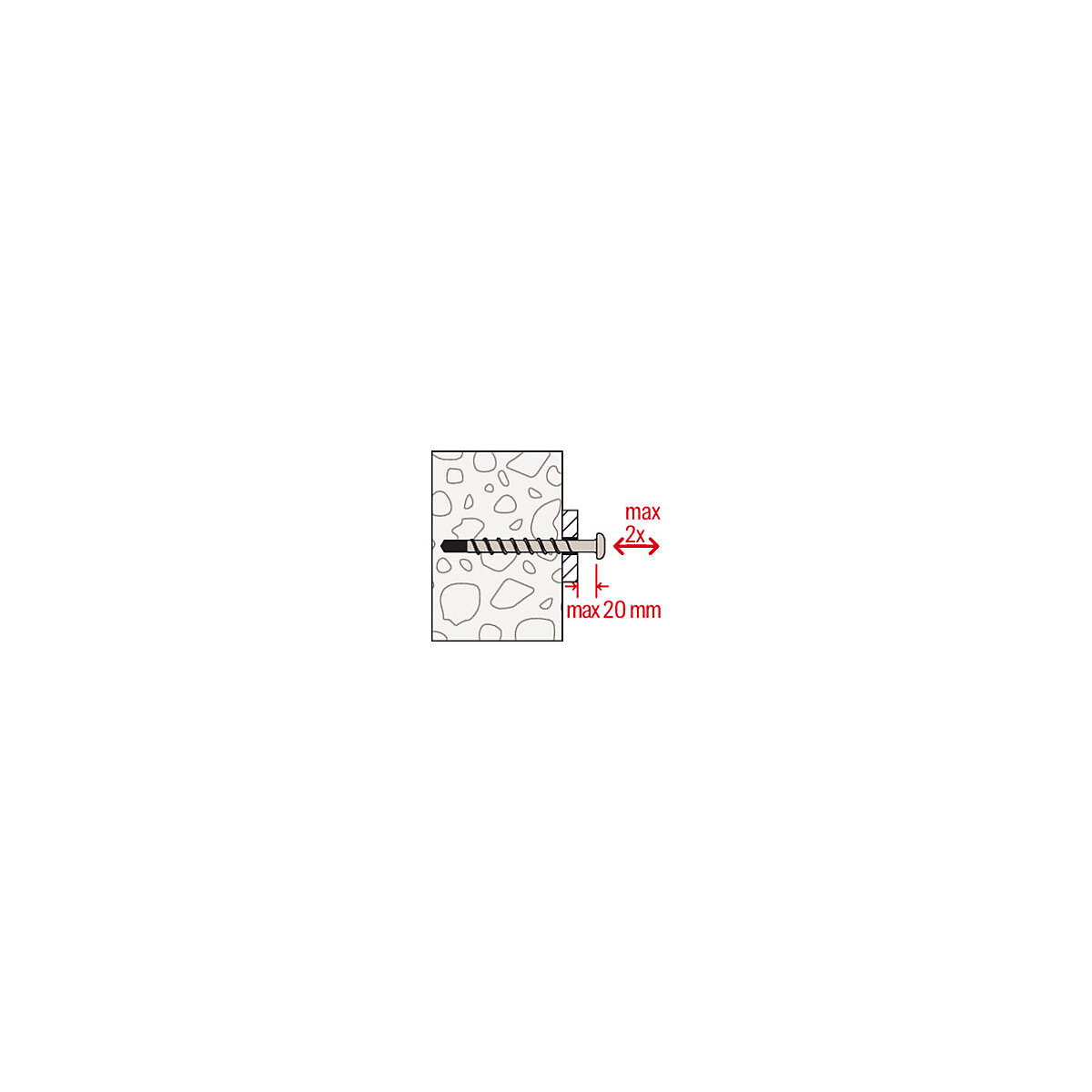

  • Approval compliant adjustment allows the screw to be undone twice for 20 mm in total, a washer of maximum 10 mm to be placed underneath, and alignment of the add-on part
  • The UltraCut FBS II 6 zinc plated concrete screw can be used in masonry (solid construction material)

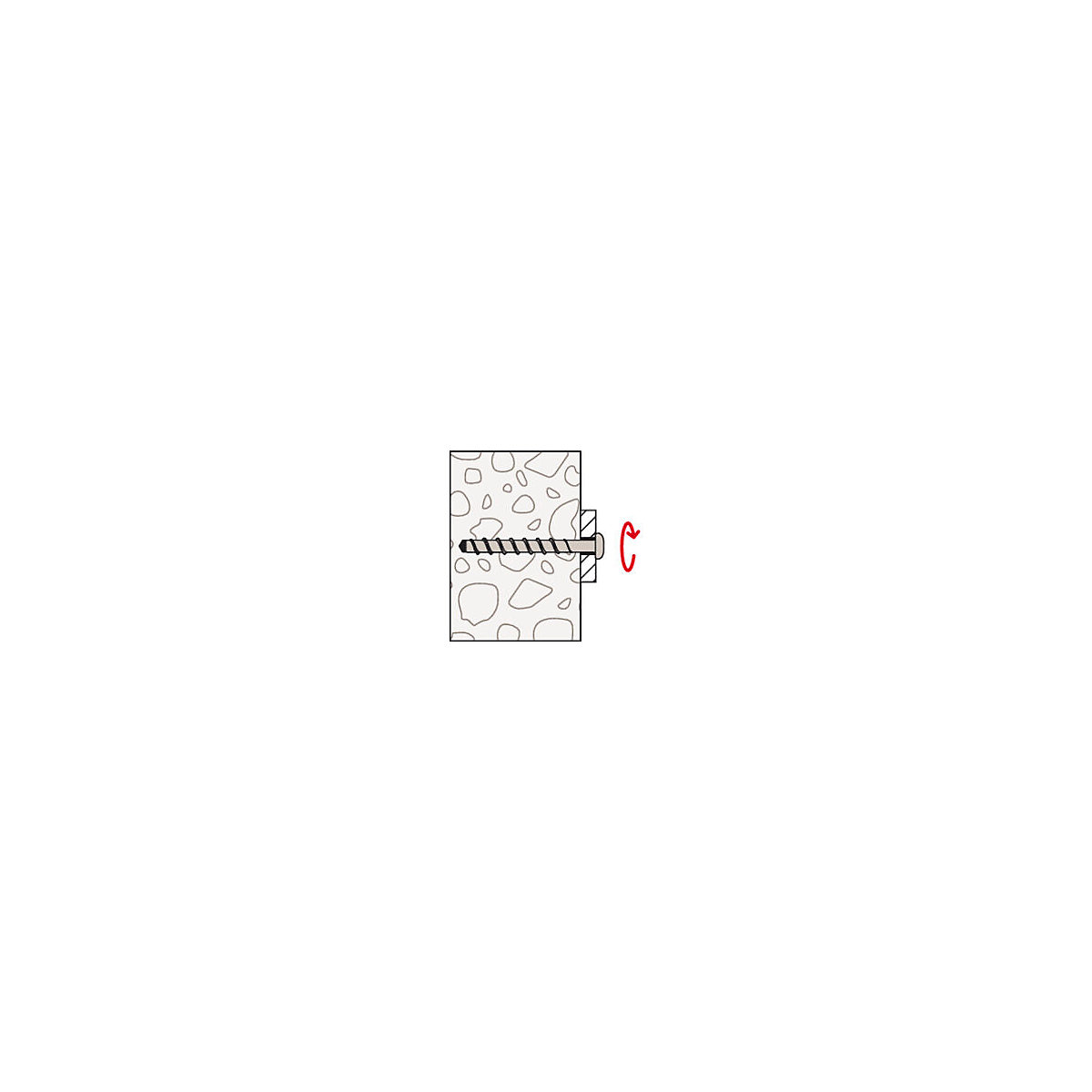

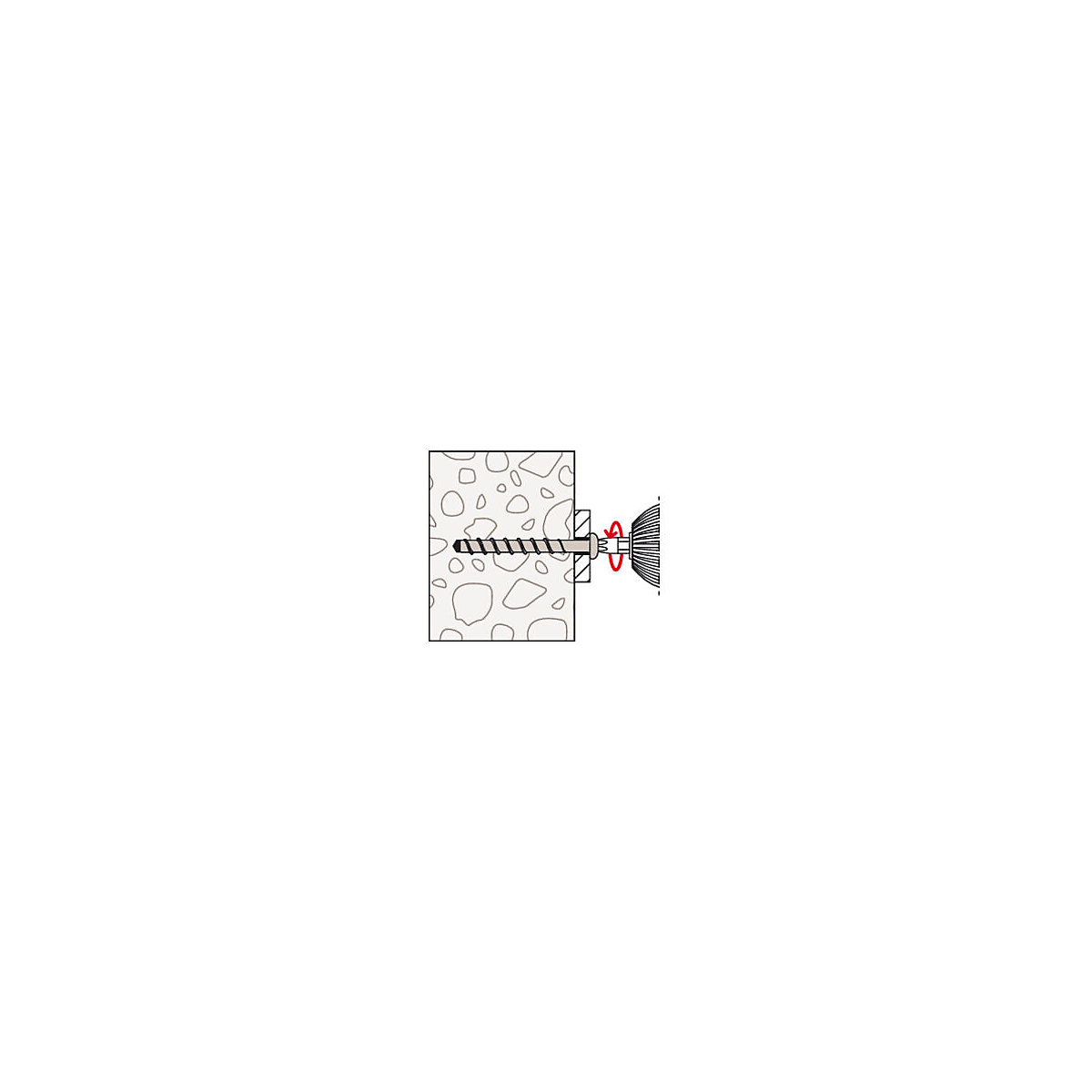

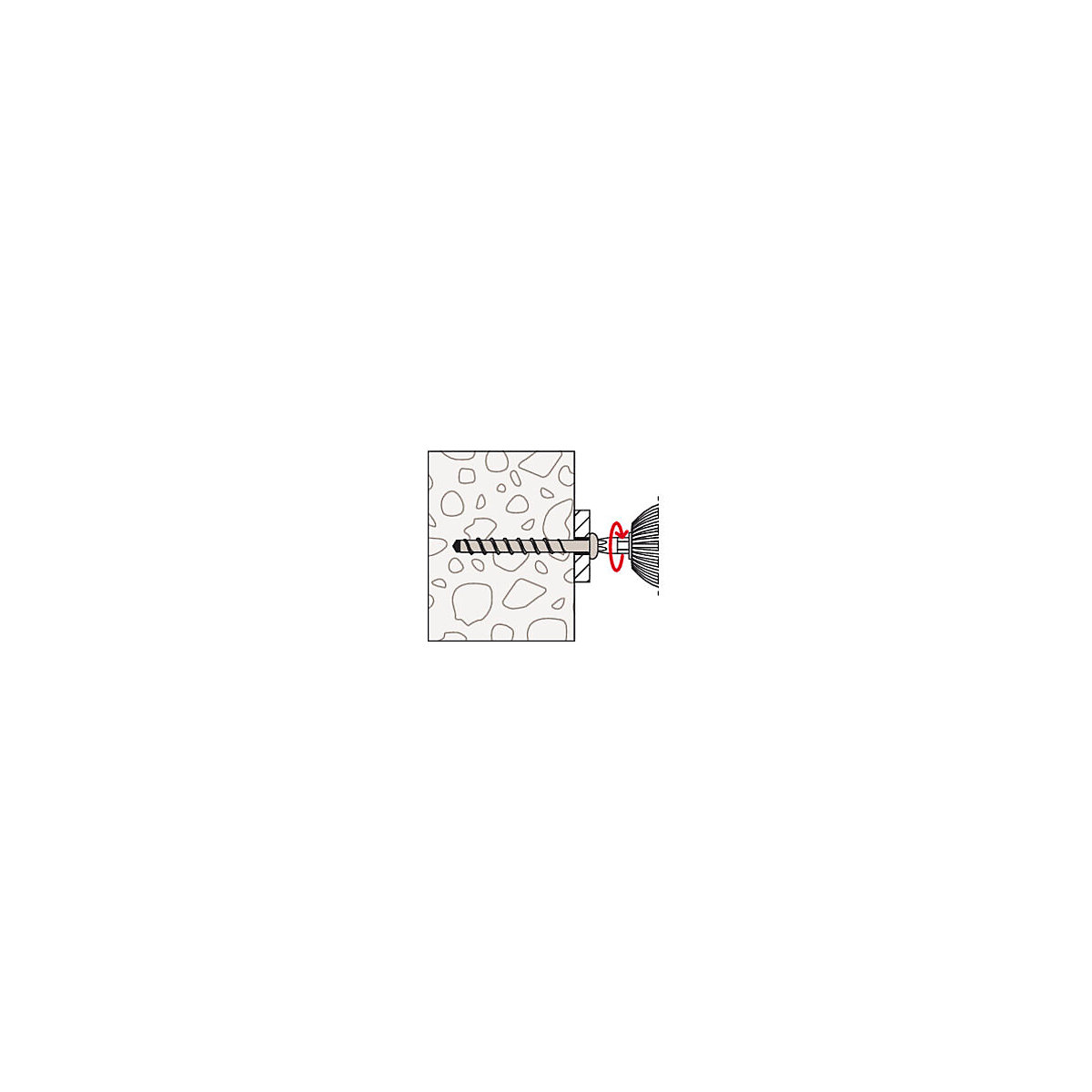

The fischer concrete screw ULTRACUT FBS II 6 P / LP is an anchoring solution made of zinc plated steel and with an attractive recess for panhead screws. The ULTRACUT FBS II 6 P / LP is ideal for securing pipes, rails, ventilation ducts and components for building services. When the concrete screw is screwed into the drill hole using an impact wrench, the thread flanks produce a flush fitting cut in the concrete, and ensure a maximum load bearing capacity. The low effort required for drilling saves time when installing multiple screws. The European Technical Assessment for cracked and non-cracked concrete as well as for seismic loads and the fire suitability for fire resistance class R 120 guarantee additional safety.
Technical data
Nominal drill hole diameter6 mm
Min. drill hole depth for push-through installation50 mm
Screw length40 mm
Product typeconcrete screws
Suppliedpre-assembled, final assembly by customer
Weight13.51 kg
Sustainability
Sustainable product

This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.

You can find out more about product evaluation and our sustainability initiative on our information page .
CriteriaWeightingScore
Icon Climate protectionClimate protection30%1.7
Icon Circulatory economyCirculatory economy30%3.7
Icon BiodiversityBiodiversity25%3.0
Icon Economic efficiencyEconomic efficiency10%5.0
Icon InnovationInnovation5%3.9
Overall score3.5
