Ref.: 655003 10

ULTRACUT FBS II US A4 concrete screw – fischer SW 15 drive, pack of 50

ULTRACUT FBS II US A4 concrete screw – fischer

dimensions 12 x 90 mm

Screw-in depth with mounting part thickness [mm]
pack of 50 only
739,00 €
Price / pack (Ex. VAT)
14,78 €
/ each
You will receive 50 items
Availability: 5-8 Working Days
Product description
  • The specially hardened red tip ensures noticeably faster and safer installation
  • The stainless steel concrete screw ensures a very high level of corrosion protection, making it suitable for use in wet rooms and outdoors
  • The special sawtooth geometry makes fast work of cutting into concrete
  • When installed vertically (in ceilings and floors) and hollow drills are used, the drill hole does not need to be cleaned; when drilling into the floor, the depth of the drill hole must be 3x the drill diameter
  • The ETA assessment covers use in cracked concrete as well as the seismic performance categories C1 and C2
  • Approval compliant adjustment allows the concrete screw to be undone twice, and the placement of washers underneath and/or alignment of the add-on part
  • Three approved screw-in depths make it suitable for use for a wide range of purposes and thereby ensure great flexibility
  • The short model with a lower screw-in depth allows shorter drill hole depths, fast installation and fewer reinforcement hits

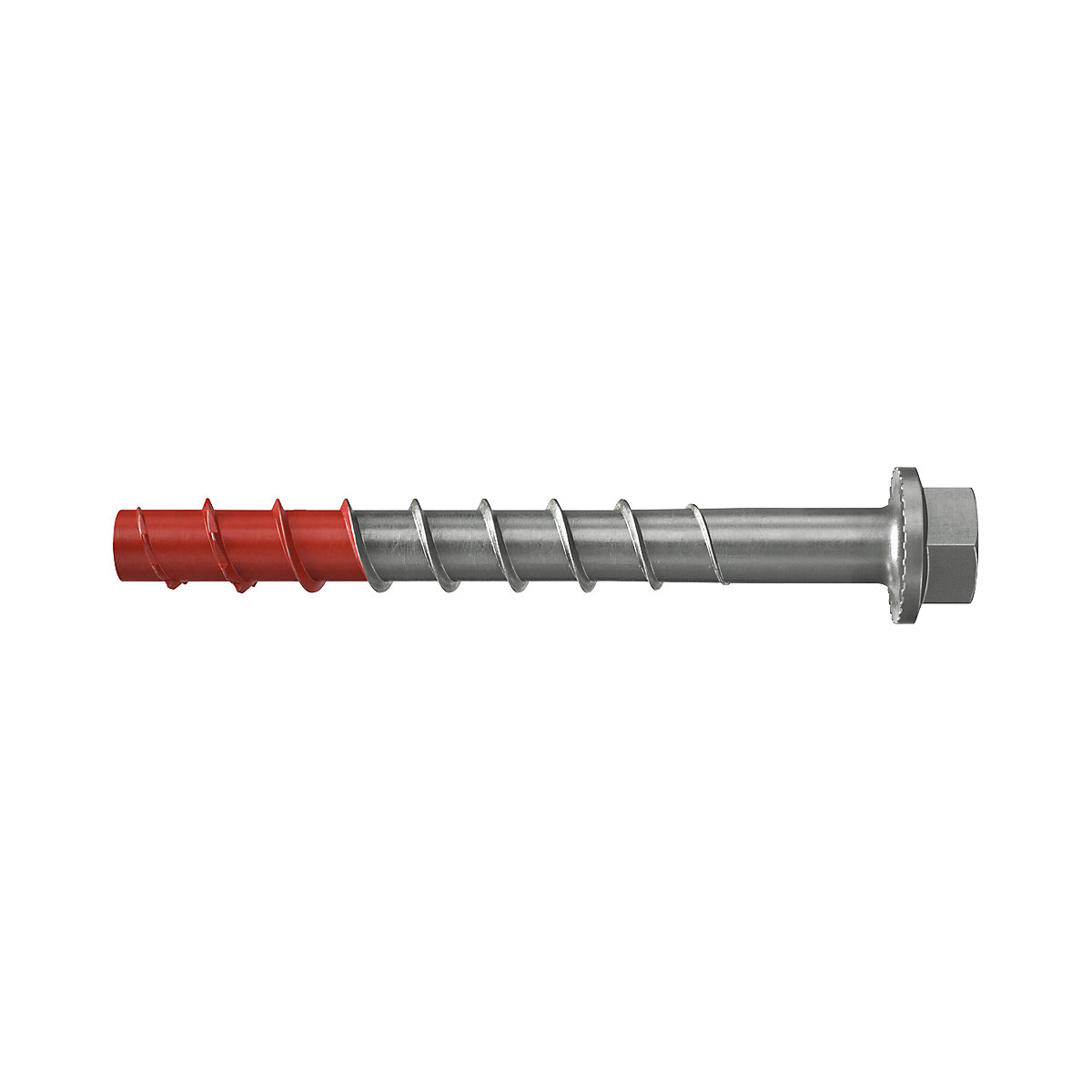

The fischer ULTRACUT FBS II US A4 concrete screw with its specially hardened red tip is a high performance anchoring solution for fast installation. The concrete screw with the pressed-on washer is ideal for outdoor use or for use in wet rooms. The European Technical Assessment for cracked and non-cracked concrete as well as for seismic loads and fire suitability for fire resistance class R 120 guarantee additional safety. The sawtooth geometry makes installation fast, without requiring force. The drill hole does not have to be cleaned for installation in ceilings and floors. Anchoring without expansion pressure minimal edge and centre distances.
Technical data
DriveSW 15
Nominal drill hole diameter10 mm
Product typeconcrete screws
Suppliedpre-assembled, final assembly by customer
Screw-in depth with mounting part thickness85 / 5 mm
Min. drill hole depth for push-through installation100 mm
Screw dimensions12 x 90 mm
Weight36.06 kg
Sustainability
Sustainable product

This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.

You can find out more about product evaluation and our sustainability initiative on our information page .
CriteriaWeightingScore
Icon Climate protectionClimate protection30%2.0
Icon Circulatory economyCirculatory economy30%3.7
Icon BiodiversityBiodiversity25%3.0
Icon Economic efficiencyEconomic efficiency10%2.5
Icon InnovationInnovation5%3.9
Overall score3.4
More about our sustainability approach.
‌
‌
‌
‌
