Ref.: 654998 10

ULTRACUT FBS II US concrete screw – fischer SW 15 drive, pack of 50

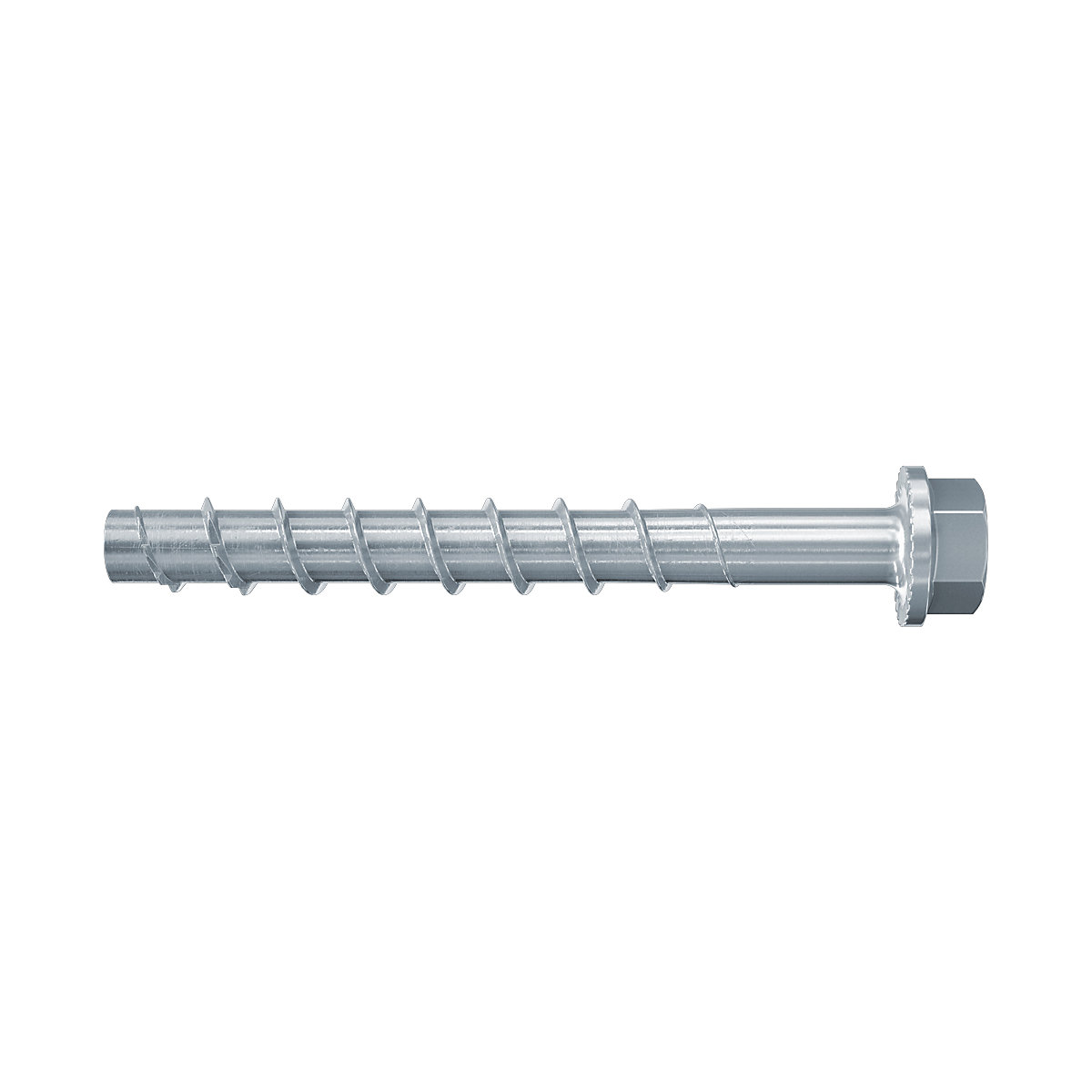

ULTRACUT FBS II US concrete screw – fischer

dimensions 12 x 80 mm

Screw-in depth with mounting part thickness [mm]
pack of 50 only
183,00 €
Price / pack (Ex. VAT)
3,66 €
/ each
You will receive 50 items
Availability: 5-8 Working Days
Product description
  • Maximum flexibility when it comes to the load and thickness of add-on parts due to up to three approved screw-in depths
  • The special sawtooth geometry makes fast work of cutting into concrete
  • When installed vertically (in ceilings and floors) and hollow drills are used, the drill hole does not need to be cleaned; when drilling into the floor, the depth of the drill hole must be 3x the drill diameter
  • Anchoring without expansion pressure (undercut) ensures minimal edge and centre distances
  • The ETA assessment covers use in cracked concrete as well as the seismic performance categories C1 and C2
  • Approval compliant adjustment allows the concrete screw to be undone twice, and the placement of washers underneath and/or alignment of the add-on part
  • The national approval covers multiple use for temporary anchoring (e.g. formwork construction)
  • Wooden beams can be adjusted quickly and easily using the FSW adjustment washer and the fischer UltraCut concrete screw FBS II 10 US
The fischer ULTRACUT FBS II is a concrete screw for maximum installation convenience. The special sawtooth geometry makes fast work of cutting into concrete. No hole cleaning is required for installation in ceilings or floors. The national approval covers regulations for multiple use for temporary anchoring, e.g. in formwork construction. A tangential impact driver with a socket or a special TX bit suitable for use in an impact driver is recommended for installing the wall screw. The concrete screw is ideal for securing railings, impact protection, brackets or formwork supports, for example.
Technical data
DriveSW 15
Nominal drill hole diameter10 mm
Product typeconcrete screws
Suppliedpre-assembled, final assembly by customer
Screw-in depth with mounting part thickness- / - mm
Min. drill hole depth for push-through installation90 mm
Screw dimensions10 x 80 mm
Weight33.24 kg
Sustainability
Sustainable product

This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.

You can find out more about product evaluation and our sustainability initiative on our information page .
CriteriaWeightingScore
Icon Climate protectionClimate protection30%2.0
Icon Circulatory economyCirculatory economy30%3.7
Icon BiodiversityBiodiversity25%3.0
Icon Economic efficiencyEconomic efficiency10%1.3
Icon InnovationInnovation5%3.9
Overall score3.3
