Ref.: 846077 10

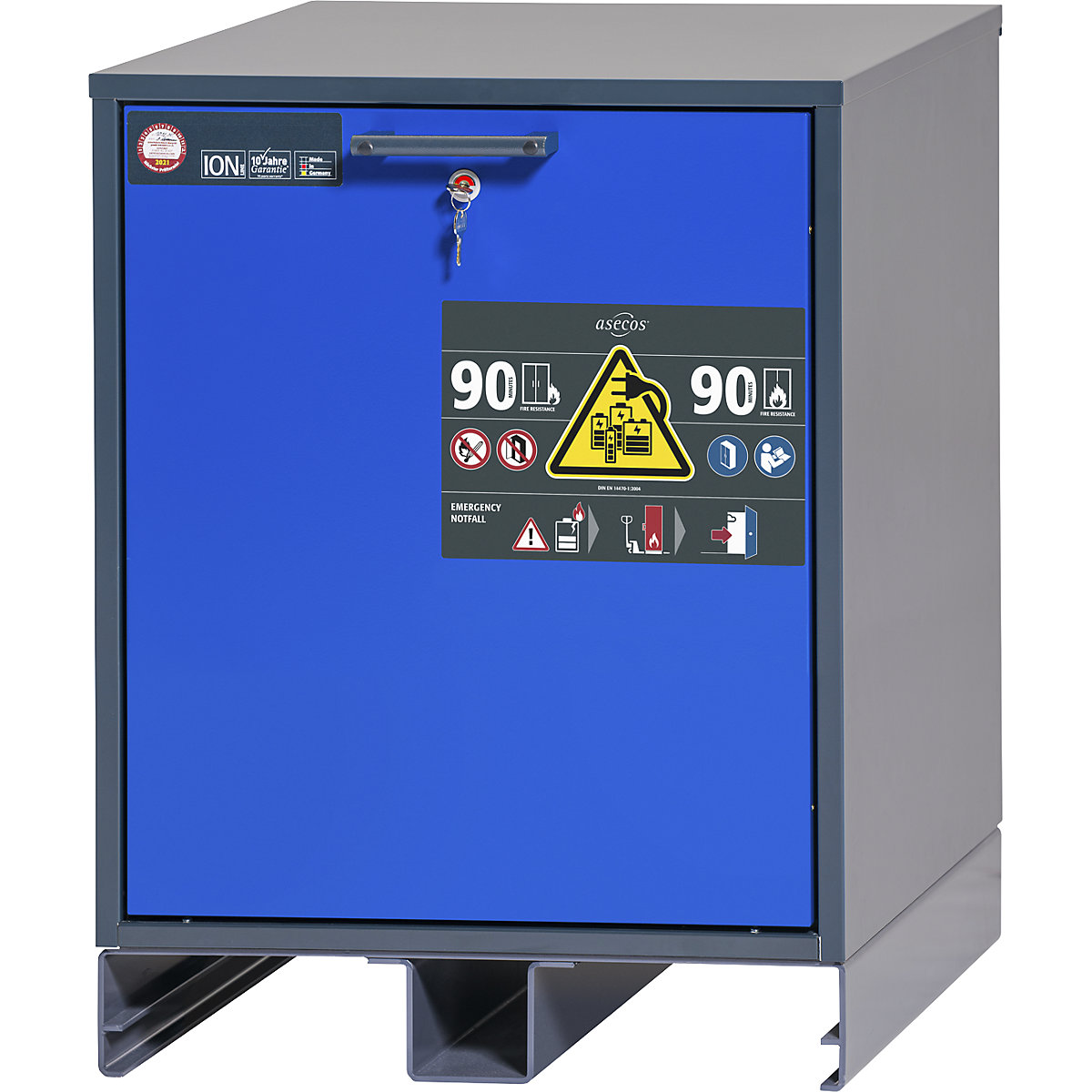

ION-CHARGE-90 battery safety cabinet – asecos HxWxD 780 x 593 x 574 mm
1 drawer
Ref.: 846077 10
ION-CHARGE-90 battery safety cabinet – asecos HxWxD 780 x 593 x 574 mm
1 drawer
1 drawer
New
on request
Price / item (Ex. VAT)
Availability: > 3 months
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Efficient order processes for business customers
We will be happy to help you
export@kaiserkraft.com
Do you have any questions about this product?on request
Price / item (Ex. VAT)
Product description
- Fire resistance 90 minutes (DIN EN 14470-1) as well as from inside to outside (DIN EN 1363-1)
- Smoke detector detects incipient fires and can forward alarms to the building management system
- Perfect for installation under work surfaces
- Safety inspection after 12 months included
- Delivery to the point of use (except in Scandinavia)
– Even in the event of an unoccupied workspace, the standard potential-free switching contact immediately forwards alarms to a connected control centre.
Optionally also with a telecommunication module for alarm forwarding via SMS and/or call to the mobile network (extra cost, see accessories).
– The transport base for internal transport can be used in case of fire to move the cabinet outdoors. The decision rests with the emergency services on site. (Castors can be optionally ordered in conjunction with the cabinet, factory fitted only.)
– DIN EN 14470-1: Fire resistance 90 minutes (Type 90) from outside to inside
– DIN EN 1363-1: Fire resistance 90 minutes from inside to outside
– CE compliant
Cabinet locking:
– with cylinder lock and locking status indicator (Red/Green)
Interior equipment:
– 2 x trailing socket, EU model
– 1 x second pull-out level, max. load: 25 kg, sheet steel powder coated, RAL 7035 light grey
– 1 x drawer tray, max. load: 50 kg, sheet steel powder coated, RAL 7035 light grey
Note: The trailing sockets are each equipped with 4 slots.
Optionally available: Telecommunication module for alarm forwarding via SMS and/or call to the mobile network, castor set with plinth panel for easy moving of the cabinet by integrated castors, see accessories.
Service: Safety inspection after 12 months included. Includes the first annual inspection: Function, safety and fire protection inspection as well as visual and legal safety control.
Optionally also with a telecommunication module for alarm forwarding via SMS and/or call to the mobile network (extra cost, see accessories).
– The transport base for internal transport can be used in case of fire to move the cabinet outdoors. The decision rests with the emergency services on site. (Castors can be optionally ordered in conjunction with the cabinet, factory fitted only.)
– DIN EN 14470-1: Fire resistance 90 minutes (Type 90) from outside to inside
– DIN EN 1363-1: Fire resistance 90 minutes from inside to outside
– CE compliant
Cabinet locking:
– with cylinder lock and locking status indicator (Red/Green)
Interior equipment:
– 2 x trailing socket, EU model
– 1 x second pull-out level, max. load: 25 kg, sheet steel powder coated, RAL 7035 light grey
– 1 x drawer tray, max. load: 50 kg, sheet steel powder coated, RAL 7035 light grey
Note: The trailing sockets are each equipped with 4 slots.
Optionally available: Telecommunication module for alarm forwarding via SMS and/or call to the mobile network, castor set with plinth panel for easy moving of the cabinet by integrated castors, see accessories.
Service: Safety inspection after 12 months included. Includes the first annual inspection: Function, safety and fire protection inspection as well as visual and legal safety control.
Technical data
| Height | 780 mm |
|---|---|
| Width | 593 mm |
| Depth | 574 mm |
| Mains voltage | 230 V |
| Internal height | 582 mm |
| Internal width | 470 mm |
| Internal depth | 452 mm |
| Fire resistance | 90 minutes |
| Internal fittings | 2 trailing sockets with 4 sockets 1 drawer tray 1 pull-out shelf |
| Material | special fire resistant boards sheet steel, powder coated |
| Body colour | charcoal RAL 7016 |
| Door colour | gentian blue RAL 5010 |
| Lock type | cylinder lock with lock status indicator |
| Door type | vertical pull-out |
| For media | lithium-ion batteries/rechargeable batteries |
| Product type | battery charging safety cabinets |
| Supplied | assembled |
| Weight | 147 kg |
