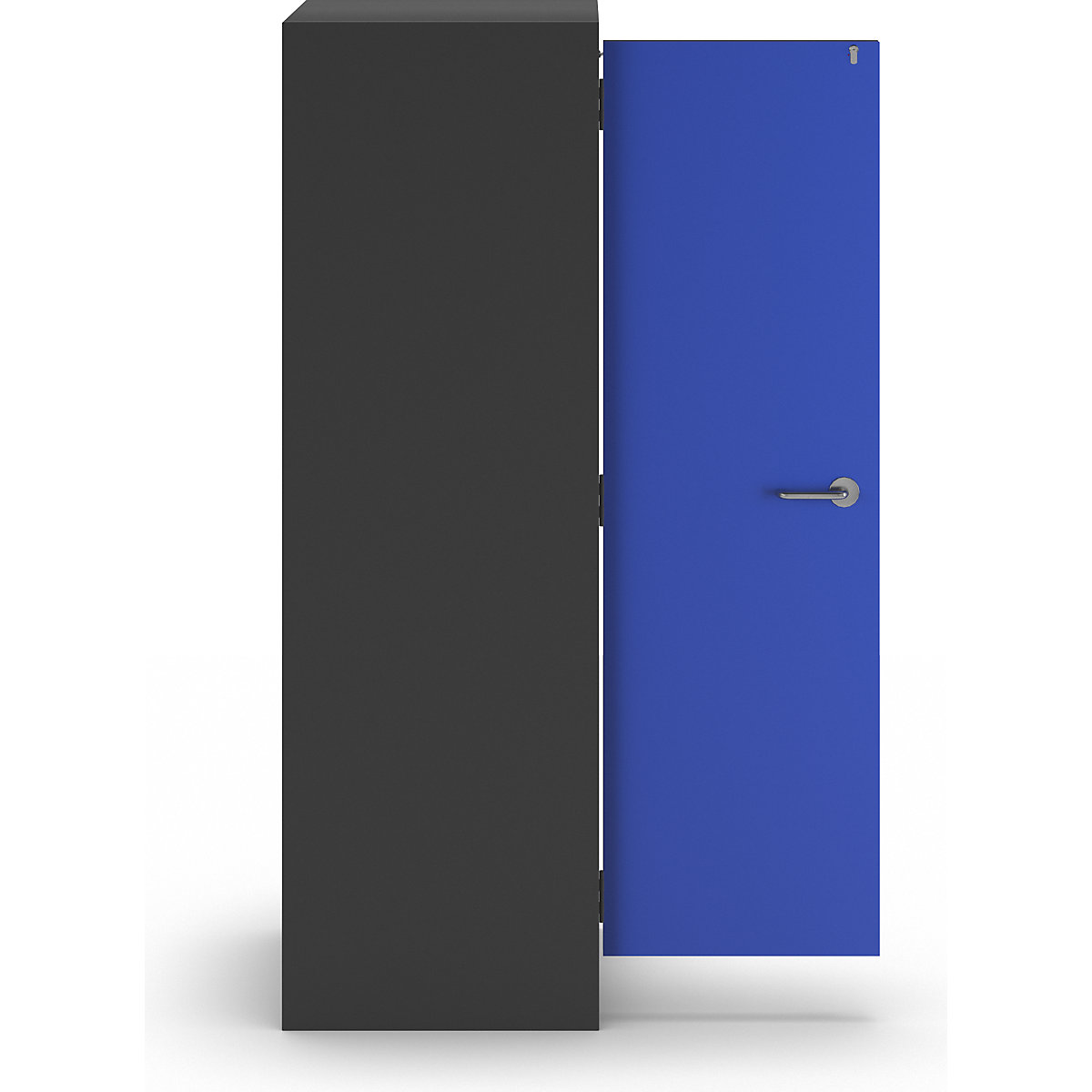

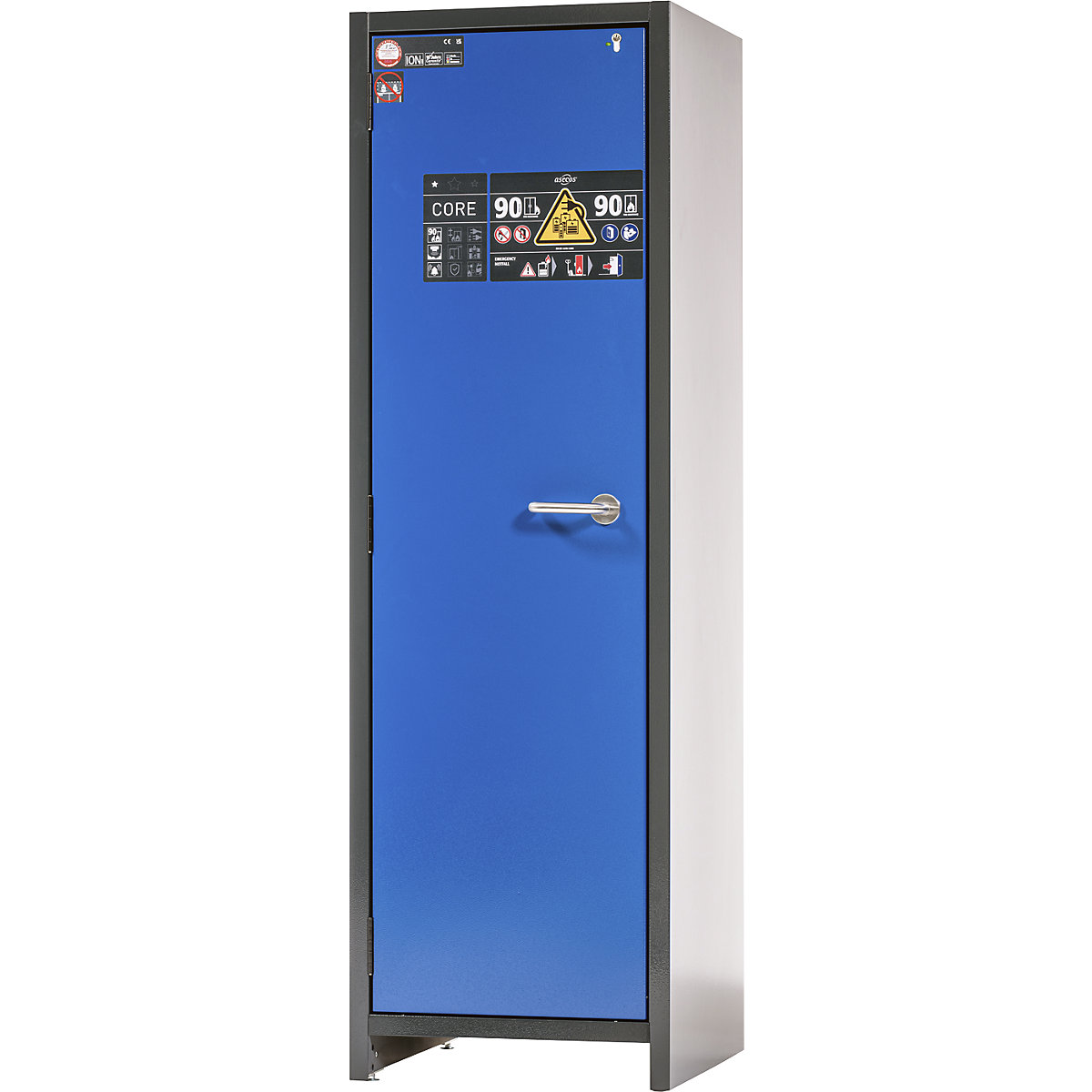

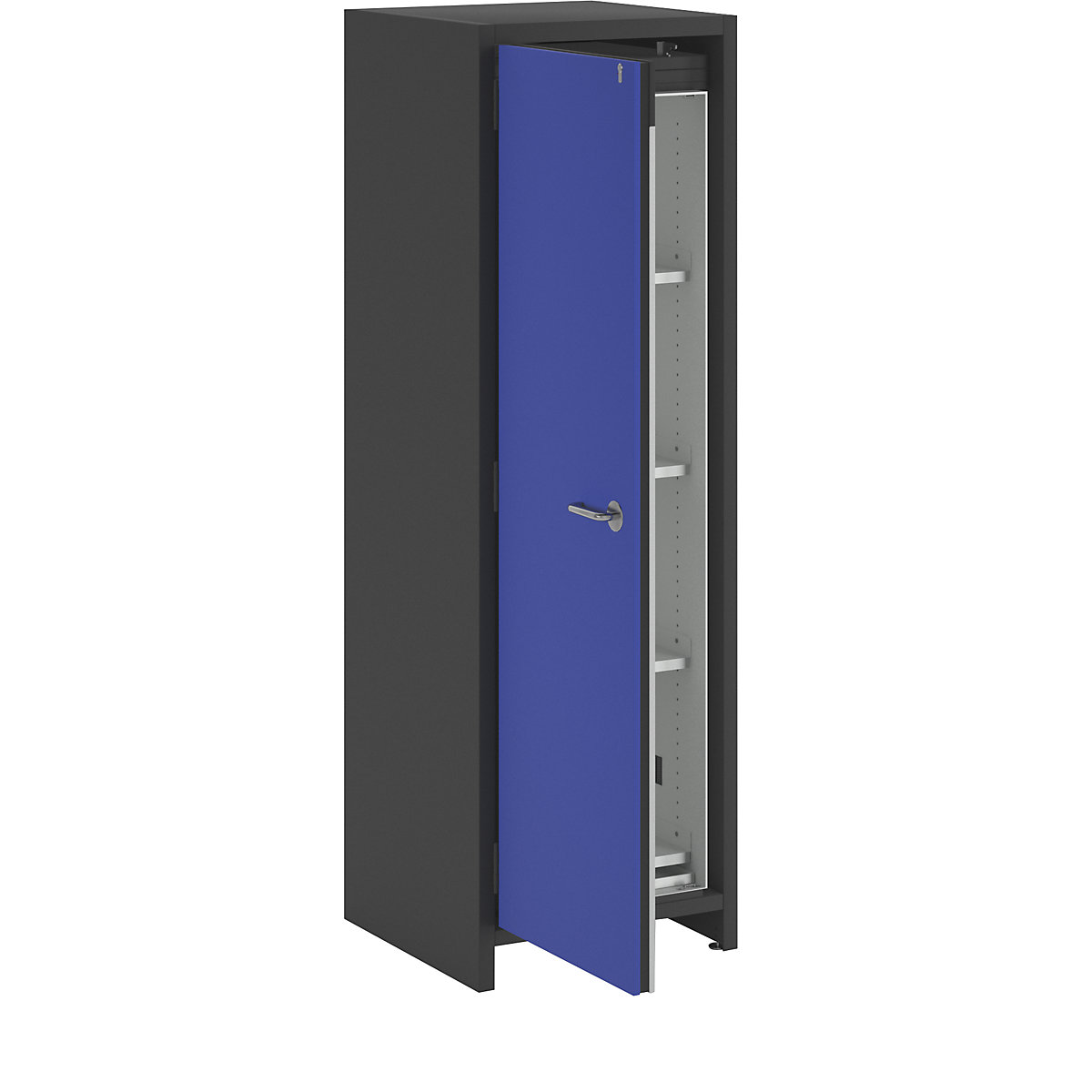

ION-CORE-90 battery safety cabinet – asecos HxWxD 1953 x 599 x 615 mm

– Insulated shelves – tested propagation safety on every storage level. In the event of a battery fire, the spread of fire to other batteries is prevented.
– Smoke detector detects even incipient fires and can forward alarms to the building management system at an early stage.
– Even in an unoccupied work area, the standard potential-free switching contact immediately forwards alarms to a connected control centre.
Optionally also available with a remote signalling module for alarm forwarding via SMS and/or call to the mobile network (extra cost, see under accessories).
– The cabinet has a transport base for internal transport. In the event of a fire, this can be used to move the cabinet outdoors. The decision is up to the emergency services on site.
– Levelling aids can be used to compensate for uneven flooring.

– DIN EN 14470-1: Fire resistance 90 minutes (Type 90) from the outside in
– DIN EN 1363-1: Fire resistance 90 minutes from the inside out
– CE compliant

Cabinet locking system:
– The 2-point locking system locks the cabinet doors permanently and securely
– With cylinder lock and lock status indicator (Red/Green)

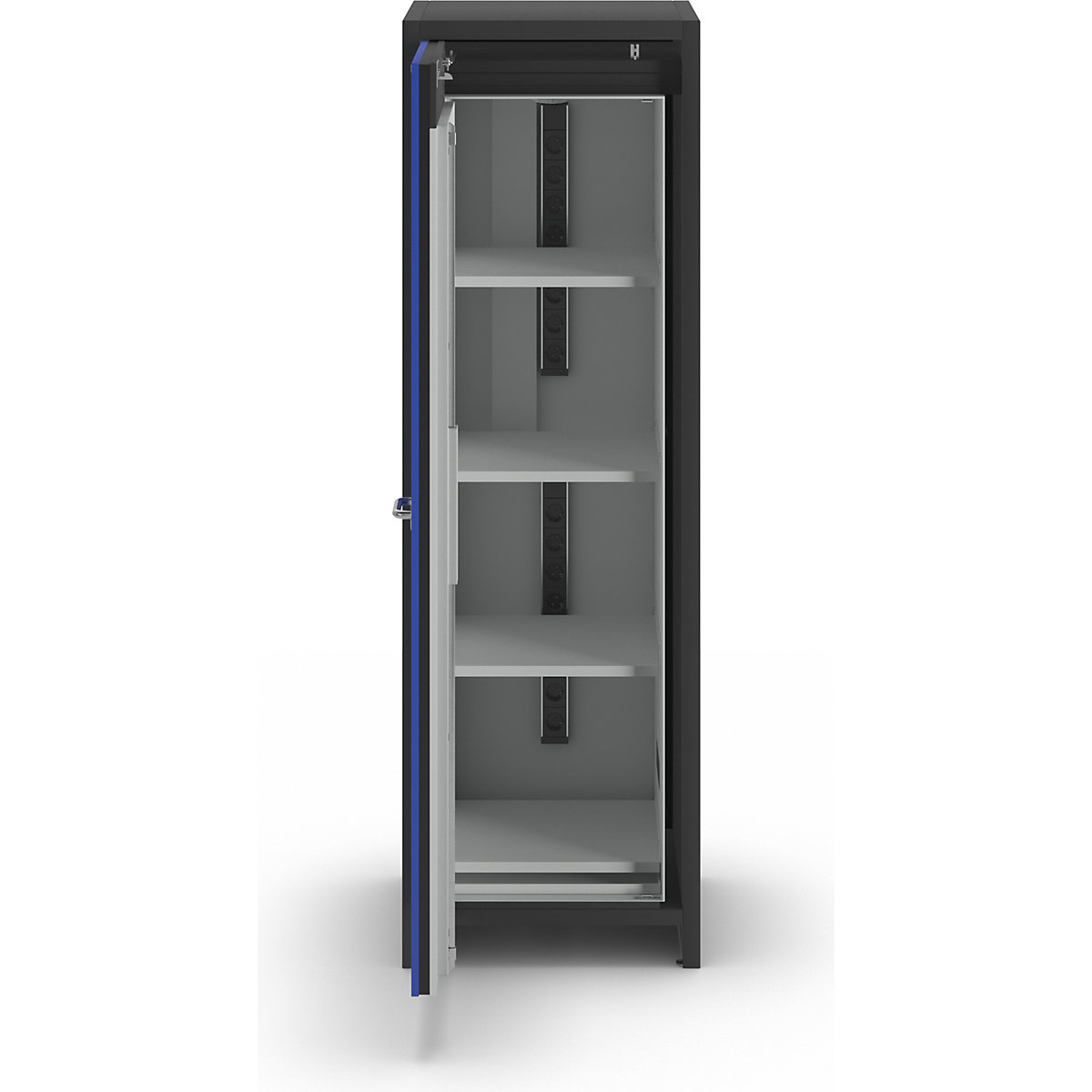

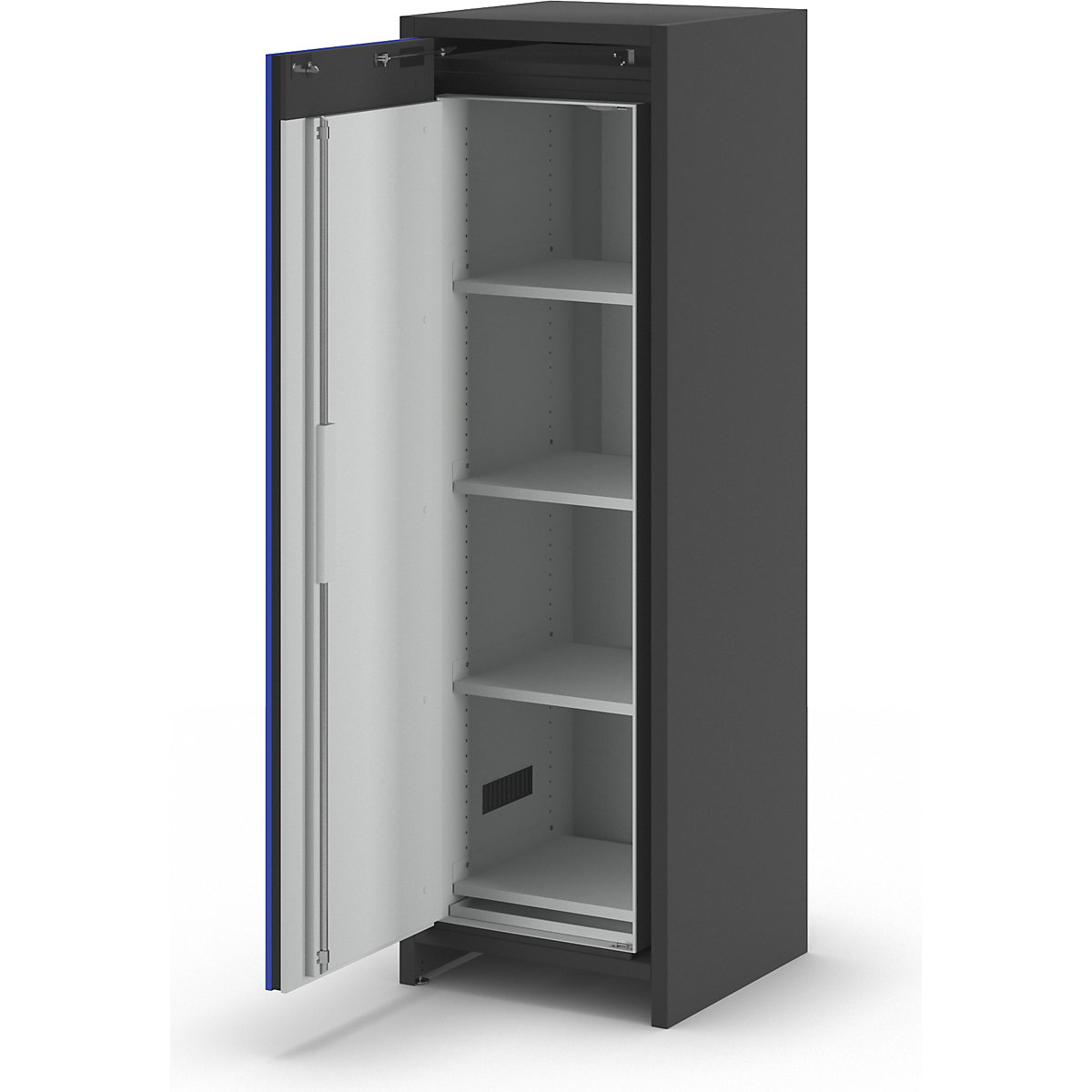

Interior fittings:
– 2 x trailing socket, EU model, mounted on the rear wall of the cabinet ready for operation
– 4 x insulated shelf, powder-coated sheet steel, RAL 7035 light grey
– 1 x base sump, volume: 1 litre, powder-coated sheet steel, RAL 7035 light grey
Note: The trailing sockets are each equipped with 8 sockets.

Optionally available: Remote signalling module for alarm forwarding via SMS and/or call to the mobile network and 400 V mains connection cable, see under accessories.

Service: Safety inspection after 12 months included. Includes the first annual inspection: functional, safety and fire protection test as well as a visual and legal compliance check.
