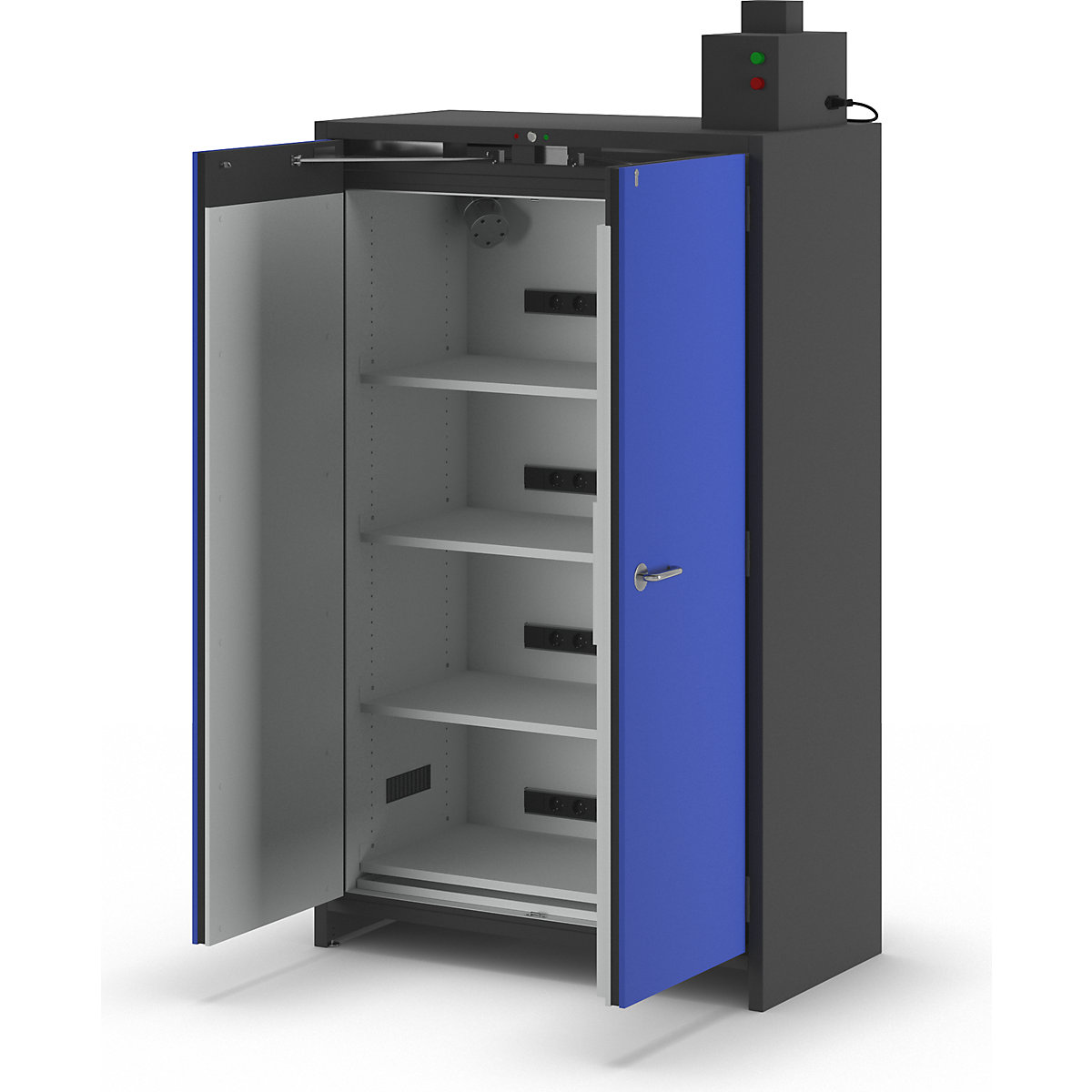

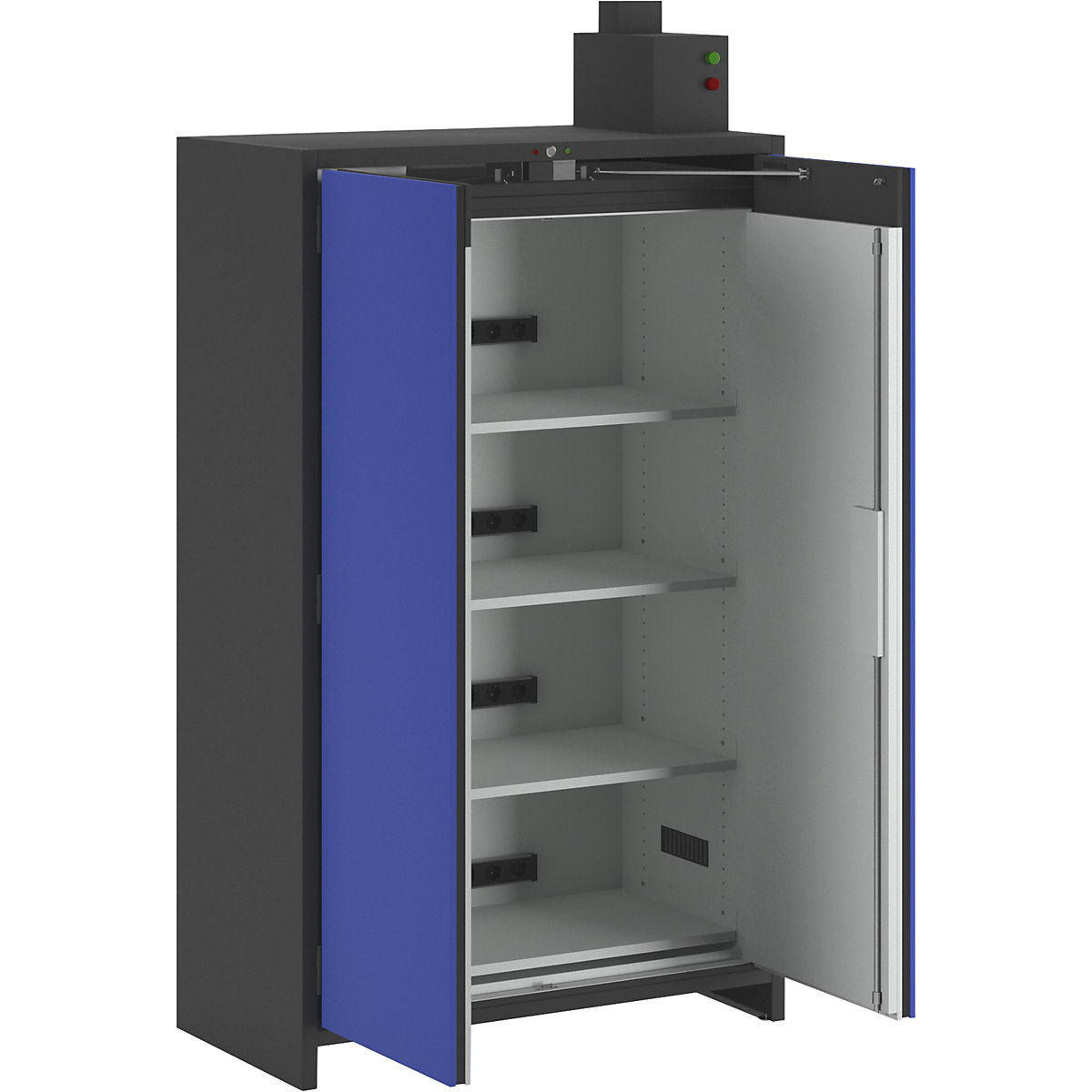

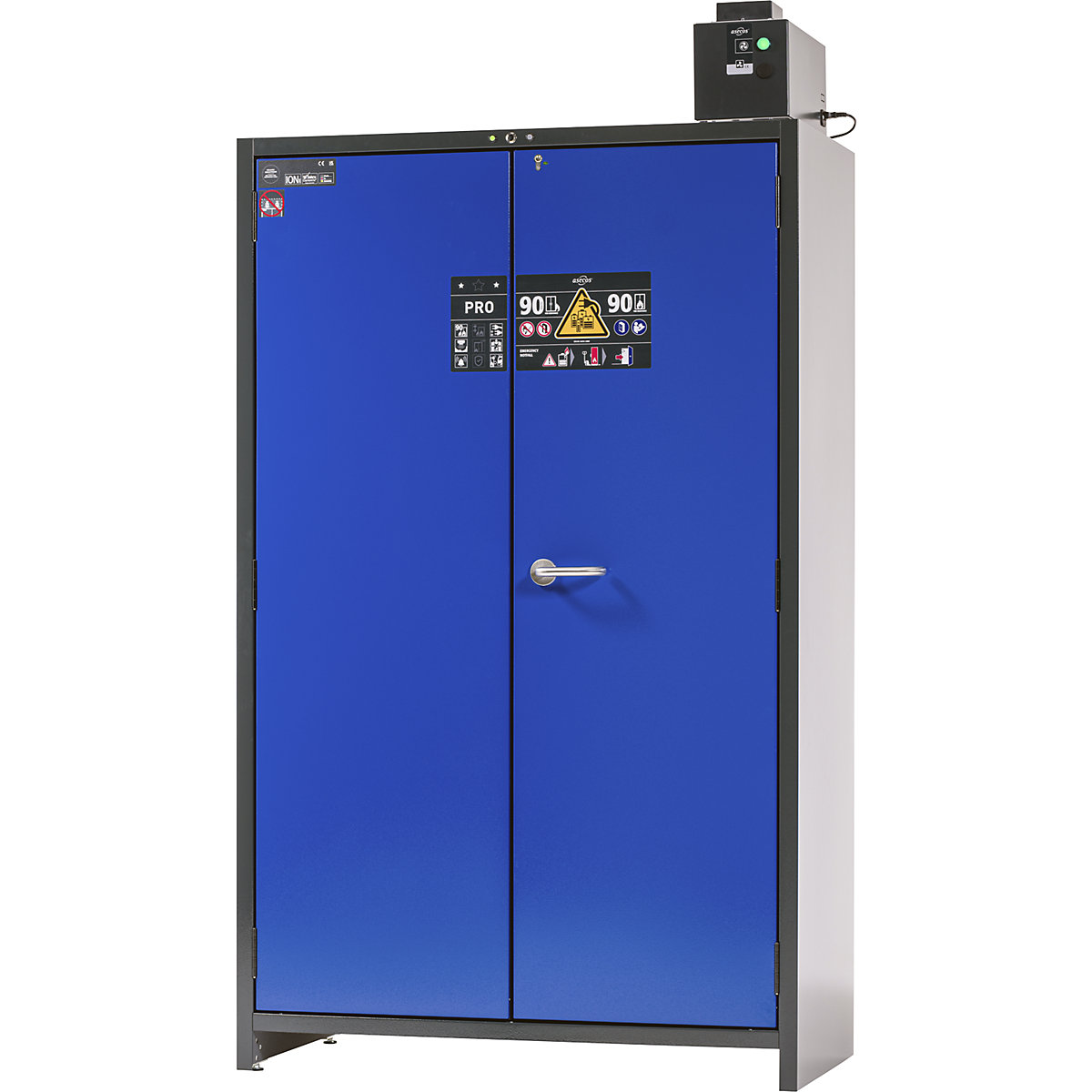

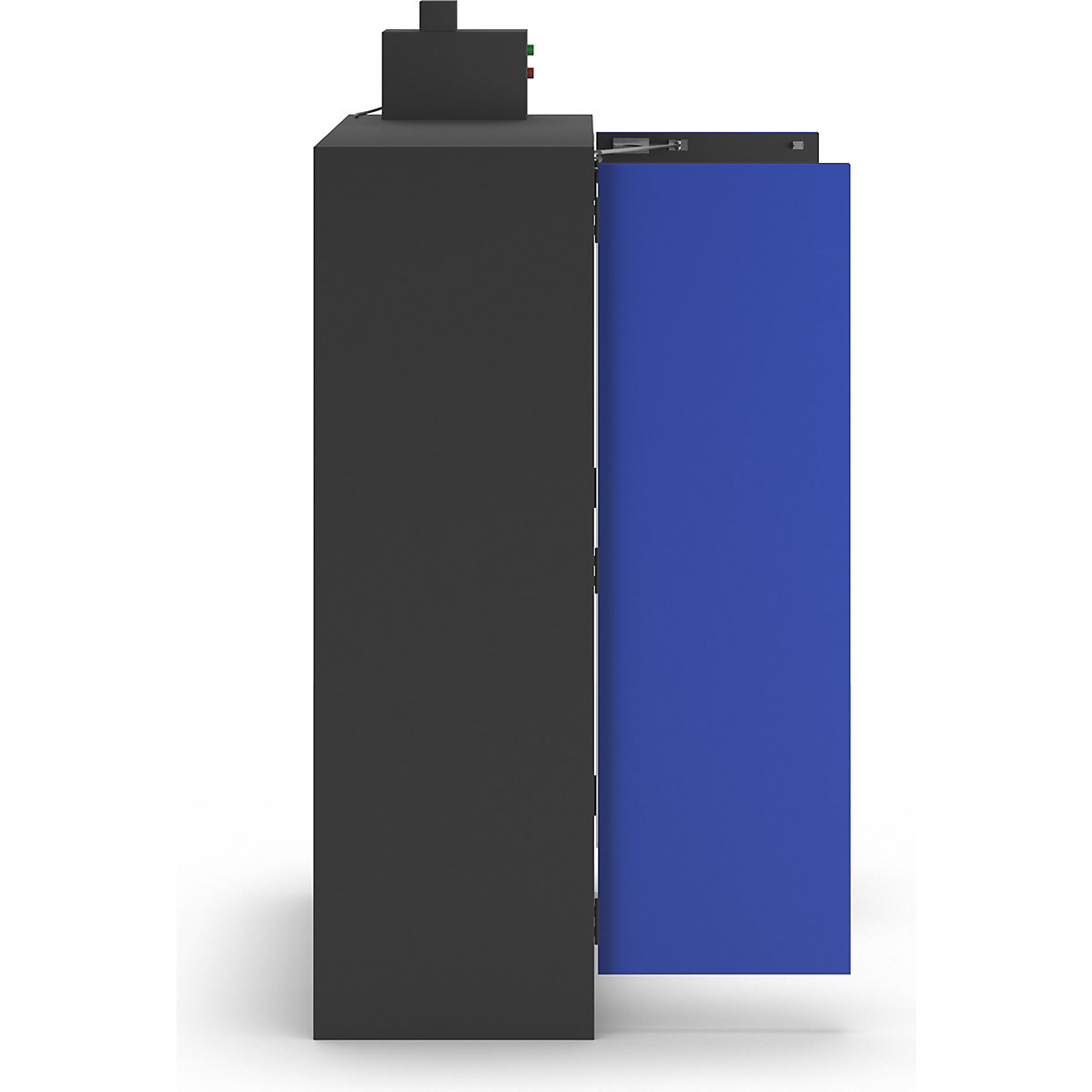

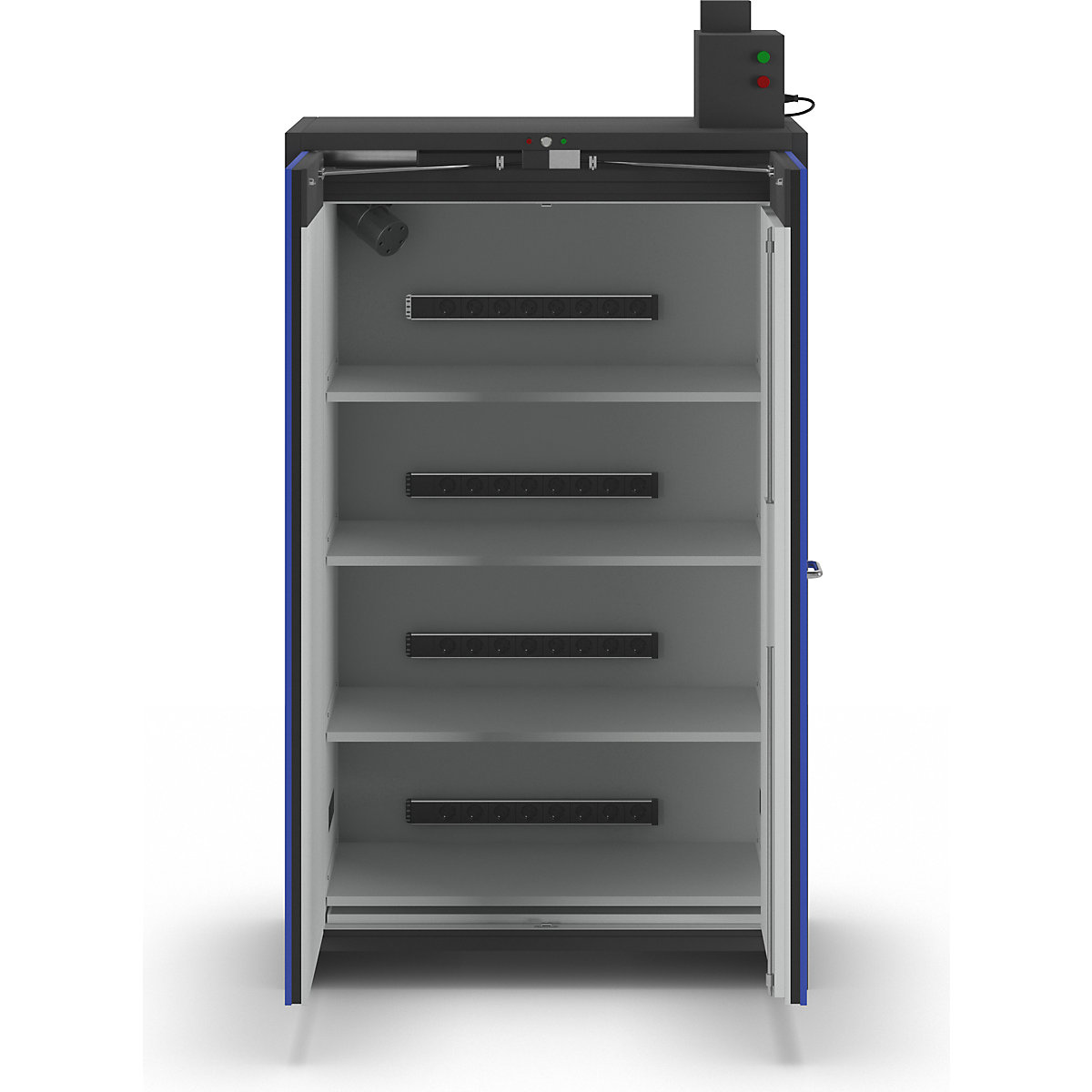

ION-PRO-90 battery safety cabinet – asecos HxWxD 2114 x 1193 x 615 mm

– Dangers safely detected – Through LED display and optical/acoustic alarms, you quickly detect developing fires without having to open the cabinet doors.
– Insulated shelves – tested propagation safety on every storage level. In the event of a battery fire, the spread of fire to other storage levels is prevented.
– Smoke detectors and temperature sensors even detect incipient fires and can forward alarms to the building management system early. For the connection of the signal, a potential-free interface is available as standard, with a relay module for distinguishing different alarm states or with a telemetry module for alarm forwarding perc SMS and/or call to the mobile network, extra cost see under accessories.
– The mounted ventilation attachment prevents heat build-up when charging the batteries. Delivery as standard with pressure relief flap and flue gas connection DN 100. Thus, the possibility of on-site flue gas extraction exists.
– The cabinets have a transport base for internal transport. In case of fire, this can be used to move the cabinet outdoors. The decision rests with the on-site emergency services.
– Adjustment aids can be used to compensate for uneven flooring.

– DIN EN 14470-1: Fire resistance 90 minutes (Type 90) from outside to inside
– DIN EN 1363-1: Fire resistance 90 minutes from inside to outside
– VDMA 24994: Fire resistance in the event of a thermal runaway by means of a real fire test
– CE compliant

Cabinet Locking:
– Convenient storage and retrieval: open two cabinet doors simultaneously with just one hand
– The additional 3-point locking combines comfortable operation with successfully tested security of closed doors in a real fire
– With cylinder lock and locking status indicator (Red/Green)

Interior Equipment:
– Power strips, EU model, ready for operation mounted on the cabinet rear wall
– Shelves insulated, powder-coated sheet steel, RAL 7035 light grey
– 1 base sump, capacity: 3 liters, powder-coated sheet steel, RAL 7035 light grey
Note: The power strips are each equipped with 8 sockets.

Optionally available: Fire suppression system, which automatically triggers in case of a fire inside the cabinet, relay or telemetry module for alarm forwarding perc SMS and/or call to the mobile network and power connection cable 400 V, see under accessories.

Service: Safety inspection included after 12 months. Includes the first annual inspection: functional, safety, and fire protection inspection as well as visual and legal compliance check.
