Ref.: 927475 10

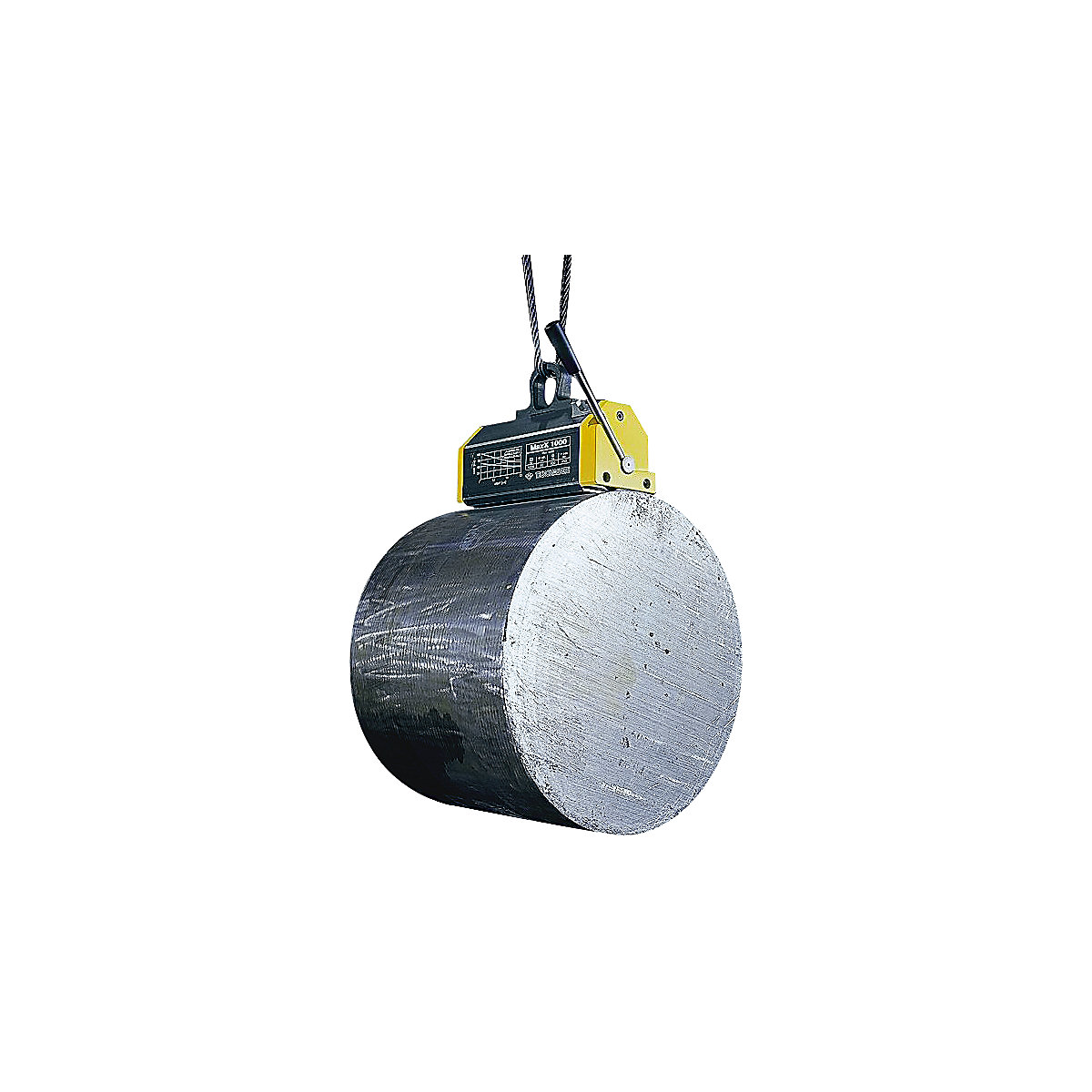

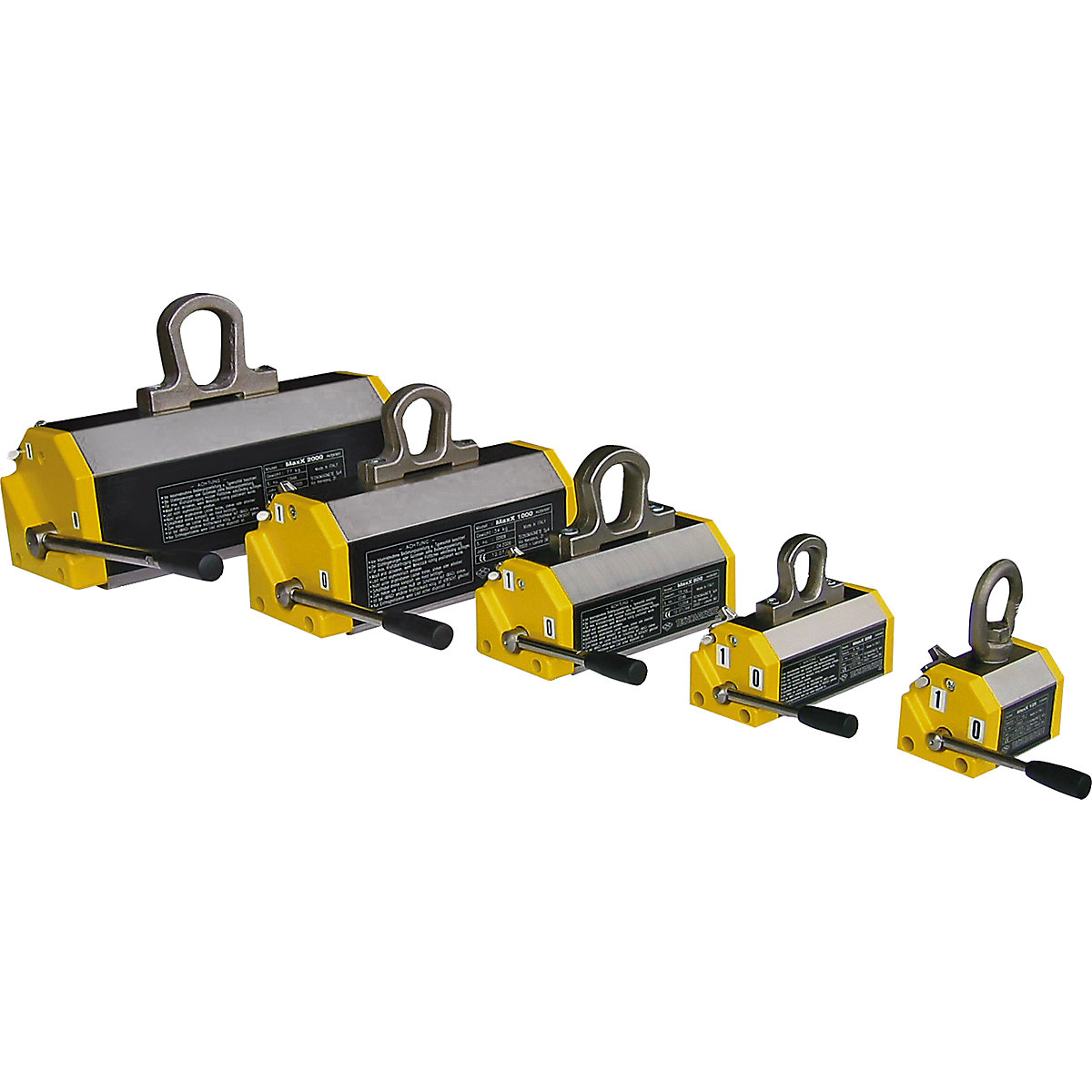

Stationary lifting magnet for flat and round material
lifting capacity 125 kg for flat material, 50 kg for round material
Max. load permitted for flat material [kg]
Ref.: 927475 10
Stationary lifting magnet for flat and round material
lifting capacity 125 kg for flat material, 50 kg for round material
lifting capacity 125 kg for flat material, 50 kg for round material
Max. load permitted for flat material [kg]
589,00 €
Price / item (Ex. VAT)
Only 13 available
Availability: 3-4 Working Days
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Fast delivery
We will be happy to help you
export@kaiserkraft.com
Do you have any questions about this product?589,00 €
Price / item (Ex. VAT)
Product description
- Very user friendly by simply flipping the lever
- Highly concentrated energy guarantees constant and reliable grip
- Magnetic force ensures the load is handled gently and is never damaged
Lifting magnets are used wherever safe handling of metallic objects is required. Simply flipping the lever switches this magnetic force on and off, and the integrated safety mechanism locks the lever during the holding phase.
The holding force is also concentrate where it is needed, and therefore prevents adjacent steel parts to the side of the load from being attracted.
Uneven surfaces are also no problem. The compact design and the comparatively low weight mean the lifting magnet can be used everywhere you need it.
The holding force is also concentrate where it is needed, and therefore prevents adjacent steel parts to the side of the load from being attracted.
Uneven surfaces are also no problem. The compact design and the comparatively low weight mean the lifting magnet can be used everywhere you need it.
Other loading capacities are available on request.
Technical data
| Product type | lifting magnets |
|---|---|
| Supplied | assembled |
| Max. load permitted for flat material | 125 kg |
| Max. load permitted for round material | 50 kg |
| Weight | 3.7 kg |
| Width | 79 mm |
| Max. diameter for round material | 300 mm |
| Height | 161 mm |
| Length | 121 mm |
| Min. wall thickness for round material | 10 mm |
| Min. wall thickness for flat material | 20 mm |
| Max. workpiece length | 1000 mm |
| Instructions |
