Ref.: 866329 10

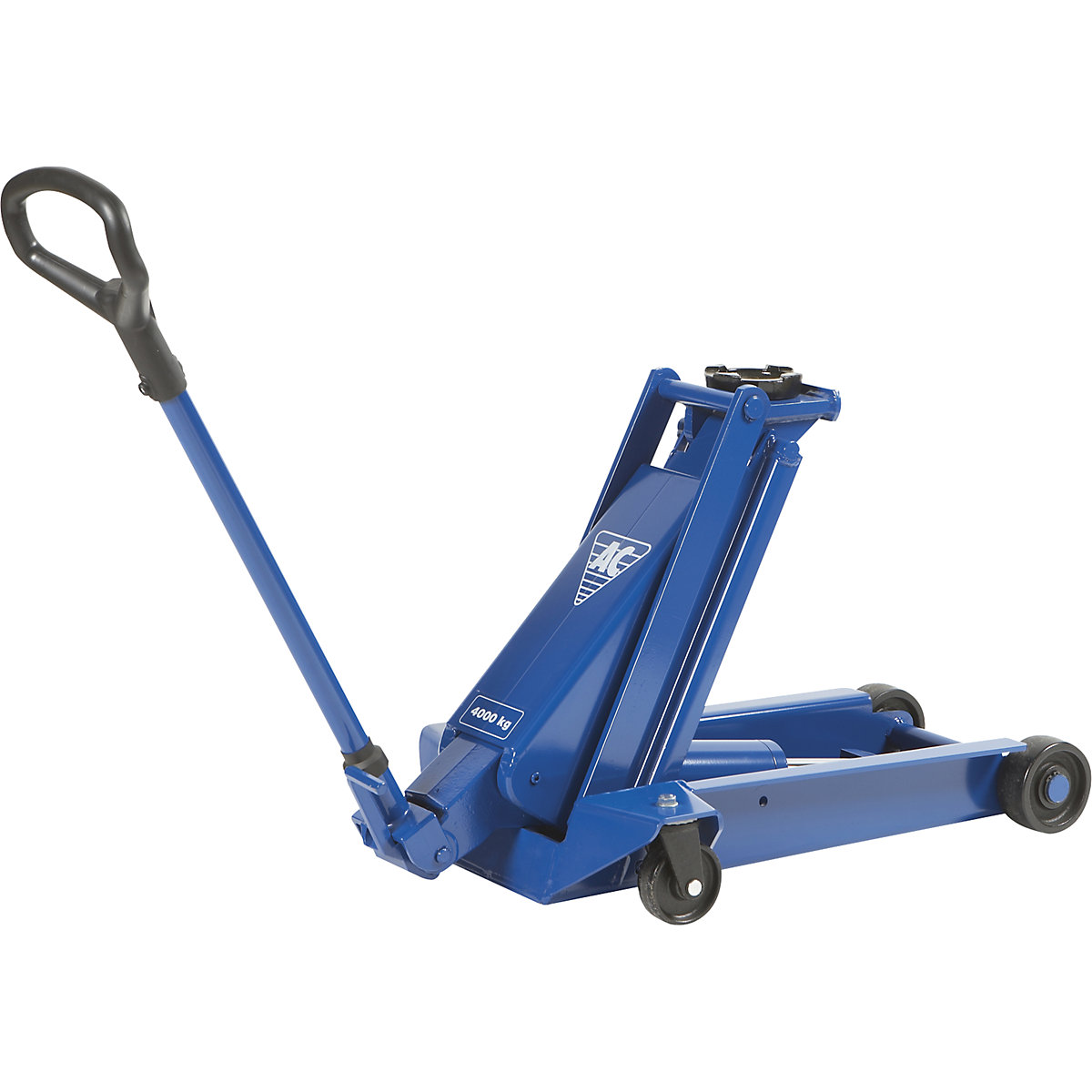

Hydraulic trolley jack – AC Hydraulic for trucks, agricultural and construction machinery
max. load 6000 kg
Length [mm]
Max. load [kg]
Ref.: 866329 10
Hydraulic trolley jack – AC Hydraulic for trucks, agricultural and construction machinery
max. load 6000 kg
max. load 6000 kg
Length [mm]
Max. load [kg]
New
on request
Price / item (Ex. VAT)
Availability: 3-4 weeks
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Efficient order processes for business customers
We will be happy to help you
export@kaiserkraft.com
Do you have any questions about this product?on request
Price / item (Ex. VAT)
Product description
- Safe lifting of heavy commercial vehicles and machines
- Quick-lift pedal for quick bridging of the empty stroke
- Safety valve prevents overloading
- Dead man's control for high safety

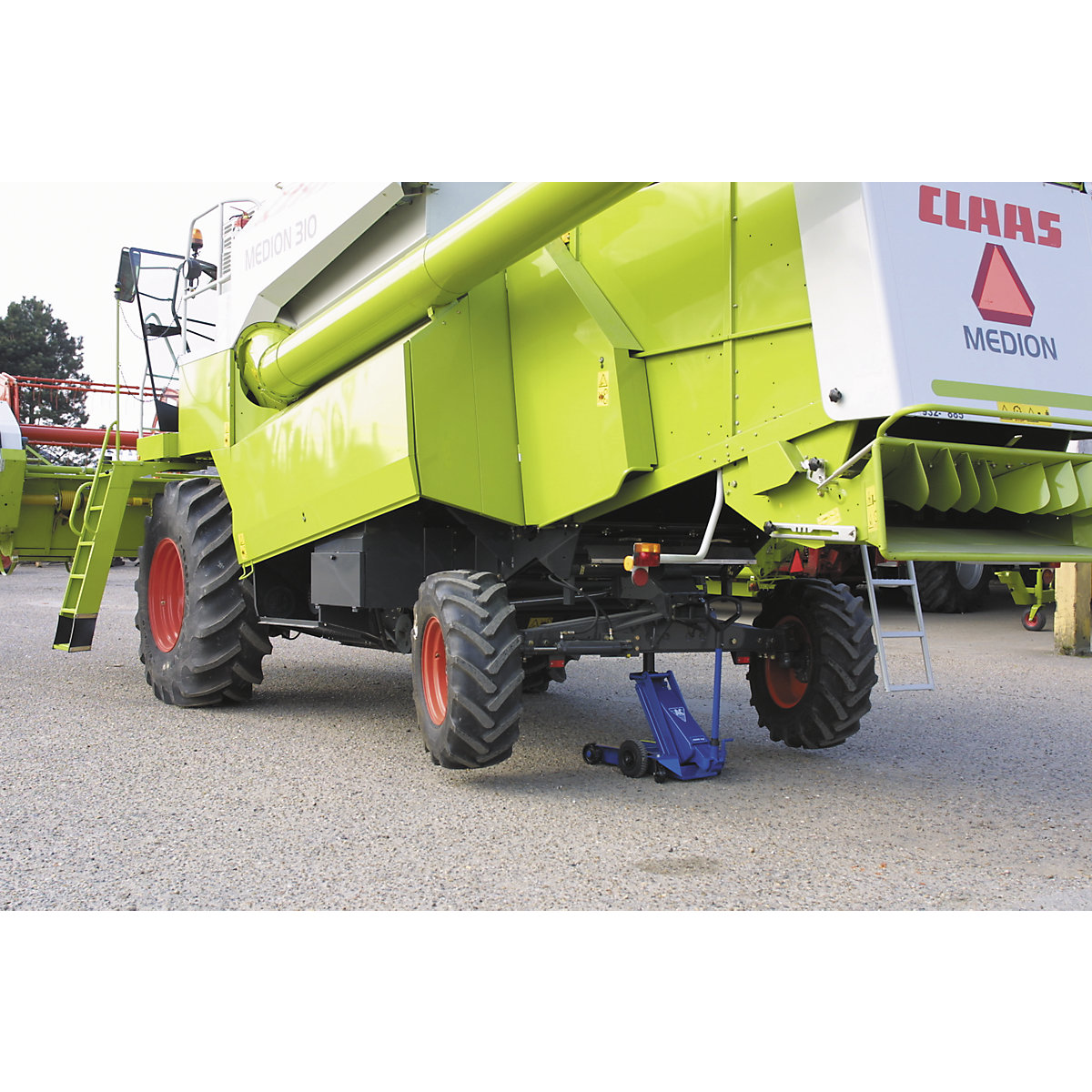

The hydraulic trolley jack is designed for professional use in workshops, vehicle fleets and service centres and is suitable for safely lifting lorries, agricultural vehicles and construction machinery.
The stable construction made of high-strength steel with a wide, torsion-resistant frame ensures high load capacity, is durable and provides reliable use even under demanding conditions. With a low minimum height of 140 mm, the jack can be easily positioned under vehicles with low ground clearance. The integrated quick-lift pedal allows the idle stroke to be quickly bypassed, so that the contact point on the vehicle is reached quickly and the lifting process is more efficient.
Several functions ensure safe operation: a directly controlled release for controlled lowering, a dead man's control and an integrated safety valve to protect against overloading, which reduces risks during operation. The ergonomic handle of the hydraulic trolley jack provides a secure, firm grip and allows for comfortable manoeuvring and precise positioning under the vehicle.
The stable construction made of high-strength steel with a wide, torsion-resistant frame ensures high load capacity, is durable and provides reliable use even under demanding conditions. With a low minimum height of 140 mm, the jack can be easily positioned under vehicles with low ground clearance. The integrated quick-lift pedal allows the idle stroke to be quickly bypassed, so that the contact point on the vehicle is reached quickly and the lifting process is more efficient.
Several functions ensure safe operation: a directly controlled release for controlled lowering, a dead man's control and an integrated safety valve to protect against overloading, which reduces risks during operation. The ergonomic handle of the hydraulic trolley jack provides a secure, firm grip and allows for comfortable manoeuvring and precise positioning under the vehicle.
Dimensions LxWxH refer to the dimensions of the frame.
Technical data
| Colour | gentian blue RAL 5010 |
|---|---|
| Material | steel |
| Product type | car jacks |
| Supplied | partially assembled |
| Length | 800 mm |
| Max. load | 6000 kg |
| Width | 500 mm |
| Lift | 460 mm |
| Weight | 95 kg |
| Lifting range with lifting head | 140 – 600 mm |
| Height | 240 mm |
