Ref.: 819975 10

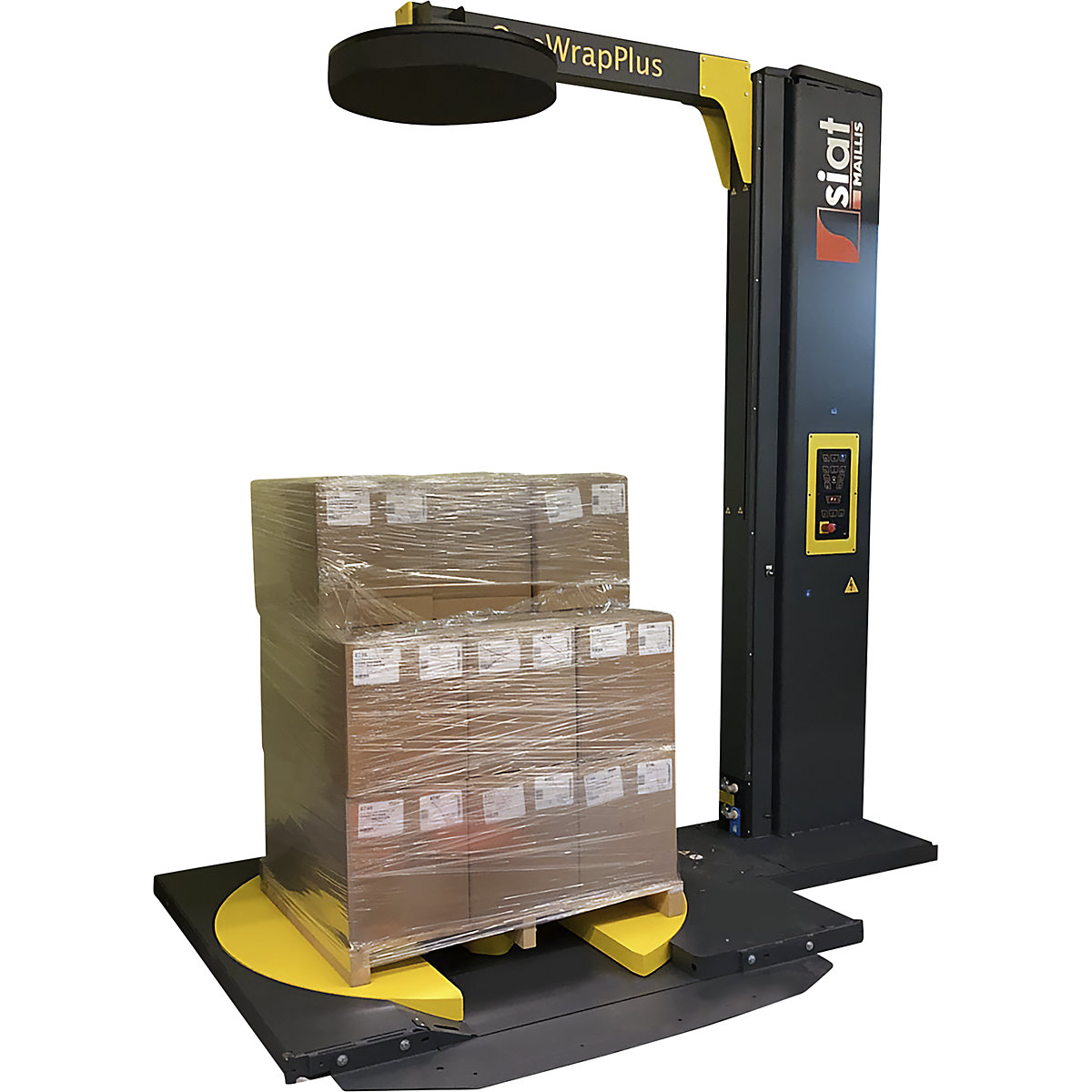

OneWrap+ pallet wrapper with open turntable

OneWrap+ pallet wrapper

pallet height 2200 mm, turntable Ø 1650 mm, electromagnetic brake

Model
16.700,00 €
Price / item (Ex. VAT)
Availability: 7–9 weeks
Product description
  • Automatic or manual winding mode

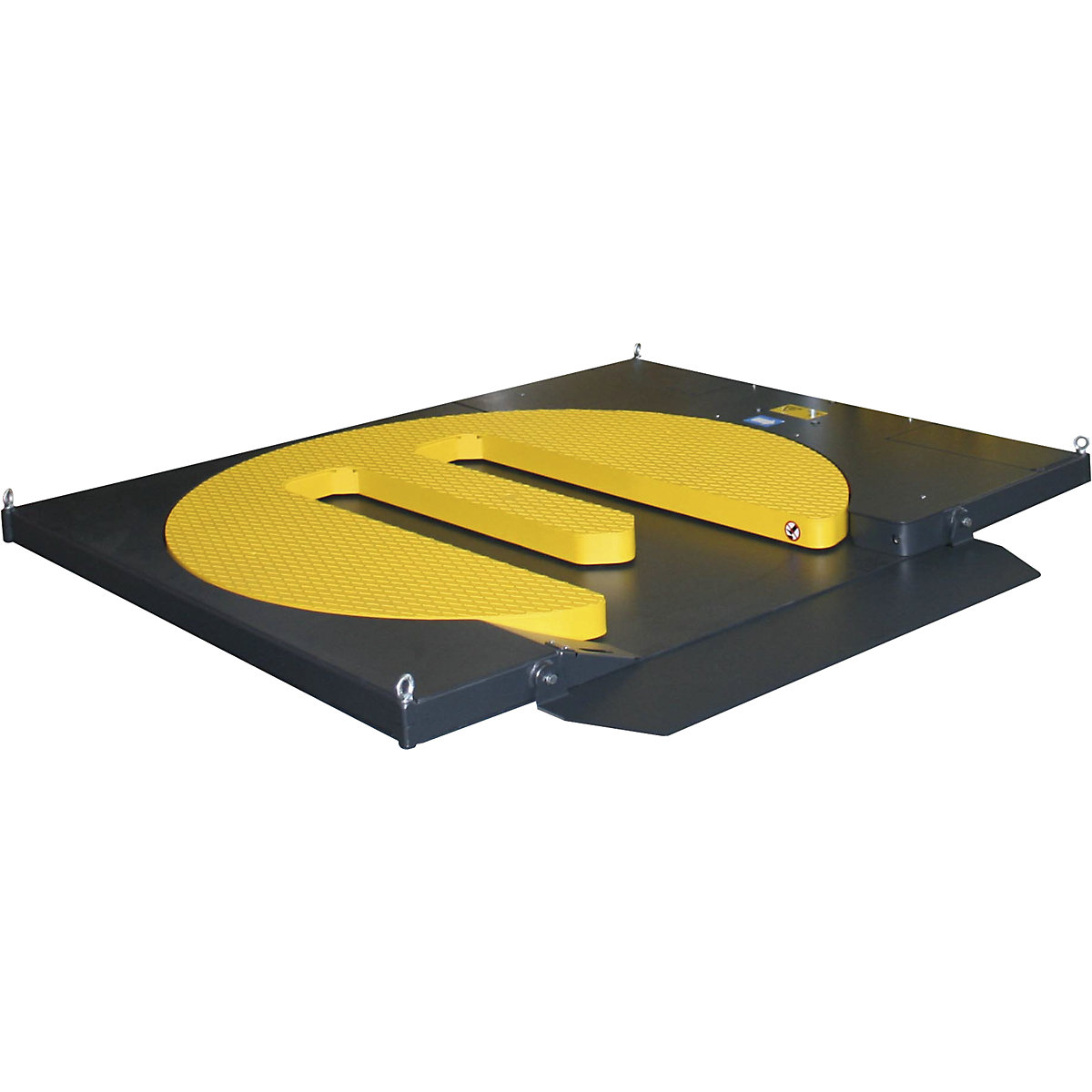

  • Horseshoe shaped turntable for space saving loading
  • Up to 10 wrapping programmes can be set

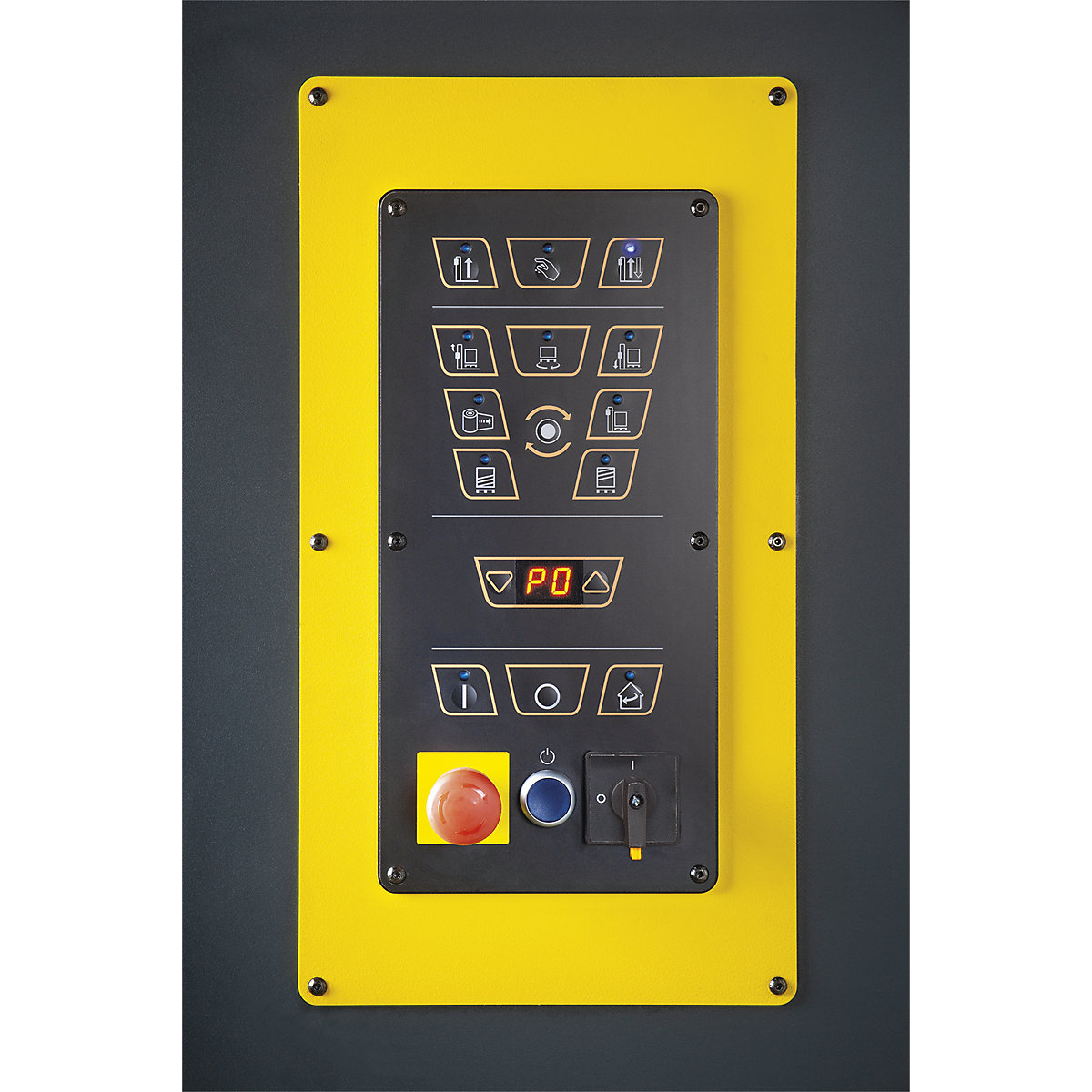

  • User friendly control panel with symbols
  • Maximum flexibility due to programmes that can be paused
  • Automatic height scanning
  • Individual speed adjustment
The semi-automatic stretch wrapper features a horseshoe shaped turntable for space saving use without a loading ramp: the packaged goods can be moved into the open turntable using a pallet truck and be placed directly on the stable working surface. The machine automatically detects the height of the load and wraps the pallets according to the selected programme. The versatile horizontal wrapper allows up to ten individual wrapping programmes to be saved using an extremely user friendly control panel with intuitive symbols. For maximum flexibility, the wrapping programmes can be paused at any time, for example to insert a pallet top sheet.
What's more, the stretch wrapper can be operated manually, allowing you to use the OneWrap+ wrapping machine exactly the way you require: choose between product versions from the basic model with a mechanical brake to machines with motor powered pre-stretch. Max. pallet weight: 1200 kg.

Power connection as standard with included CEE plug, SchuKo plug upon request.
Please always include the accessory item ''Commissioning'' with your order.
Technical data
Colourcharcoal RAL 7016
Fittingswith open turntable
Effective height2200 mm
Platform diameter1650 mm
For roll width500 mm
Max. load1200 kg
Dimensions of machine (HxWxD)2714 x 2881 x 1650 mm
For strap typePE stretch film
Mains voltage220/240 V 50/60 Hz 1 PH+N, 400 V 50/60 Hz 3 PH+N
Materialsteel
Product typestretch machines
Suppliedflat pack

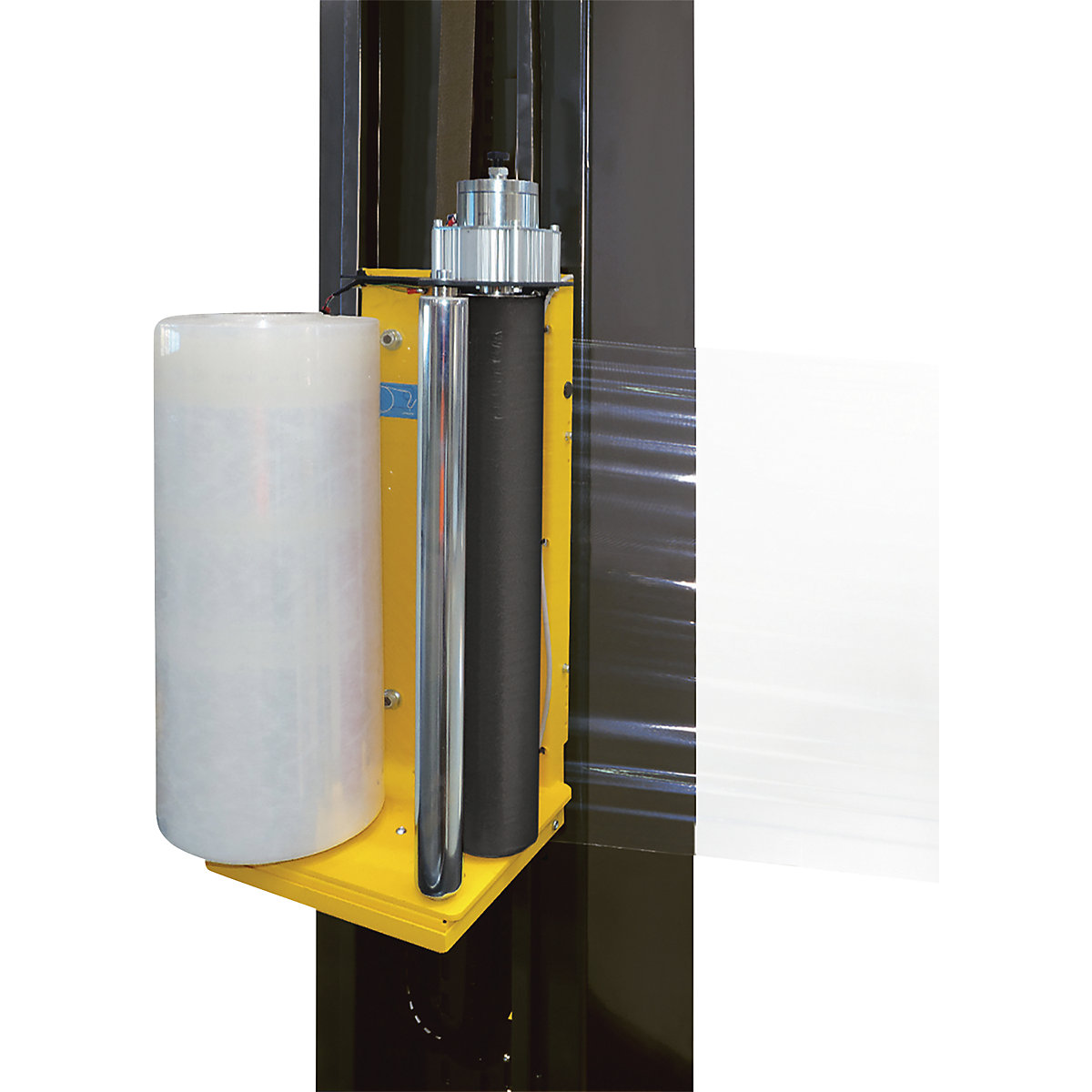

Modelfilm carriage with electromagnetic brake
Weight695 kg
