Ref.: 650227 10

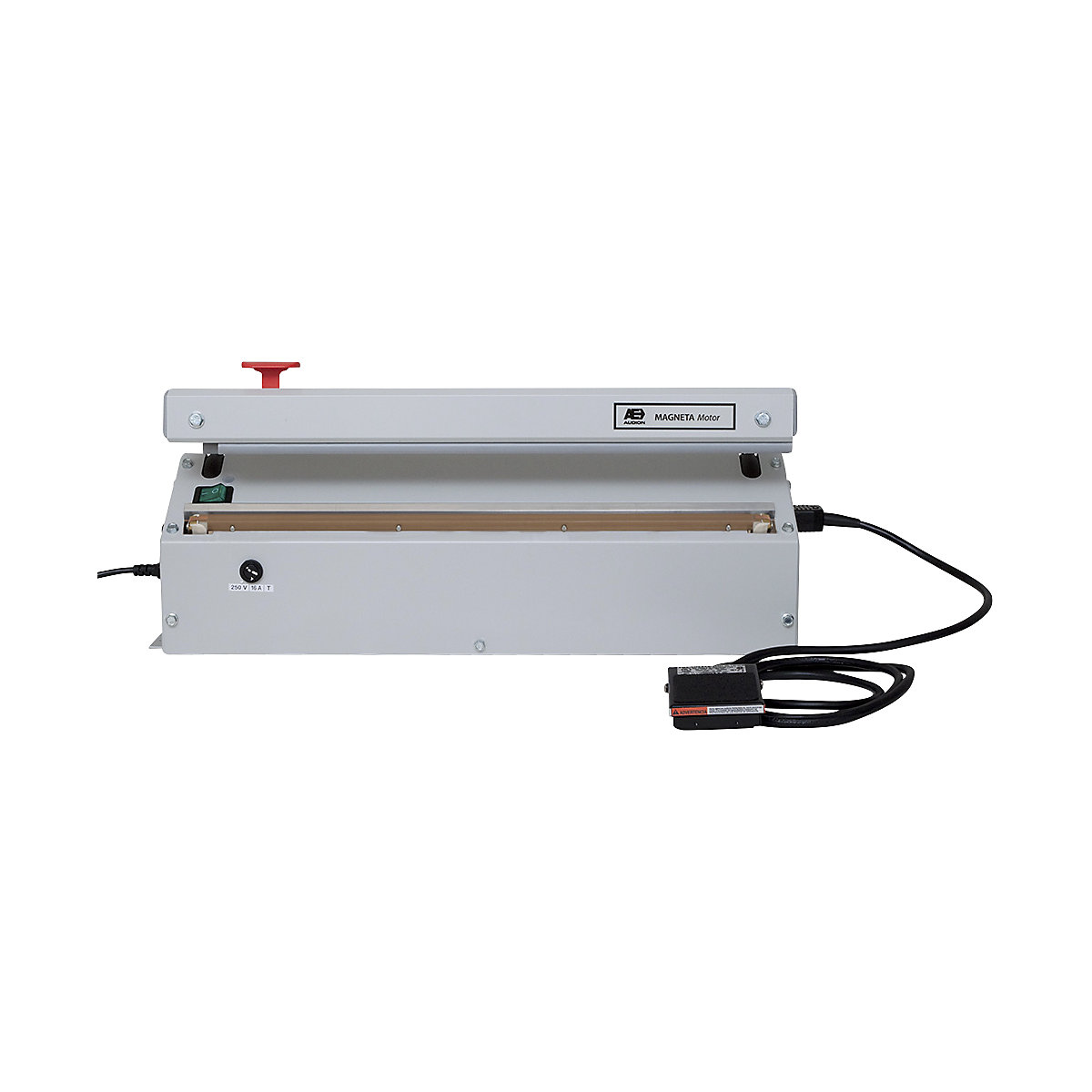

MAGNETA tabletop film sealing device – ratioform industrial model with foot pedal

MAGNETA tabletop film sealing device – ratioform

seal LxW 420 x 5 mm

Max. film thickness [µm]
Welding seam max. [mm]
2.775,00 €
Price / item (Ex. VAT)

Availability: 5-8 Working Days
Product description
  • Film sealing device with 5 mm sealing seam instead of the standard 3 mm sealing seam
  • Impulse sealing device with pedal or manually operated
  • Suitable for composite film, ready made pouches, PP, PE, tubular films
The MAGNETA film sealing device is powered by an electric motor and is equipped with an electric foot switch. This special system allows the sealing arm to be closed by lightly pressing the foot switch.
The pressure arm is held until the preset sealing and cooling time has elapsed. The pressure arm then opens automatically.
This model is equipped with a 5 mm wide sealing seam instead of the standard 3 mm wide sealing seam. The sealing band for these models is equipped with a sealing band holder, which ensures a good tension of the sealing bands and therefore also a longer service life.
Technical data
Type of usestanding unit desktop unit
Applicationcomposite films bags shrink films
Voltage230 V
Fittingswith cutting device
Width196 mm
Height250 mm
Product typefilm sealing devices
Suppliedassembled
Max. film thickness2 x 150 µm
Welding seam max.420 x 5 mm
Length568 mm
Power800 watt
Weight15.5 kg
