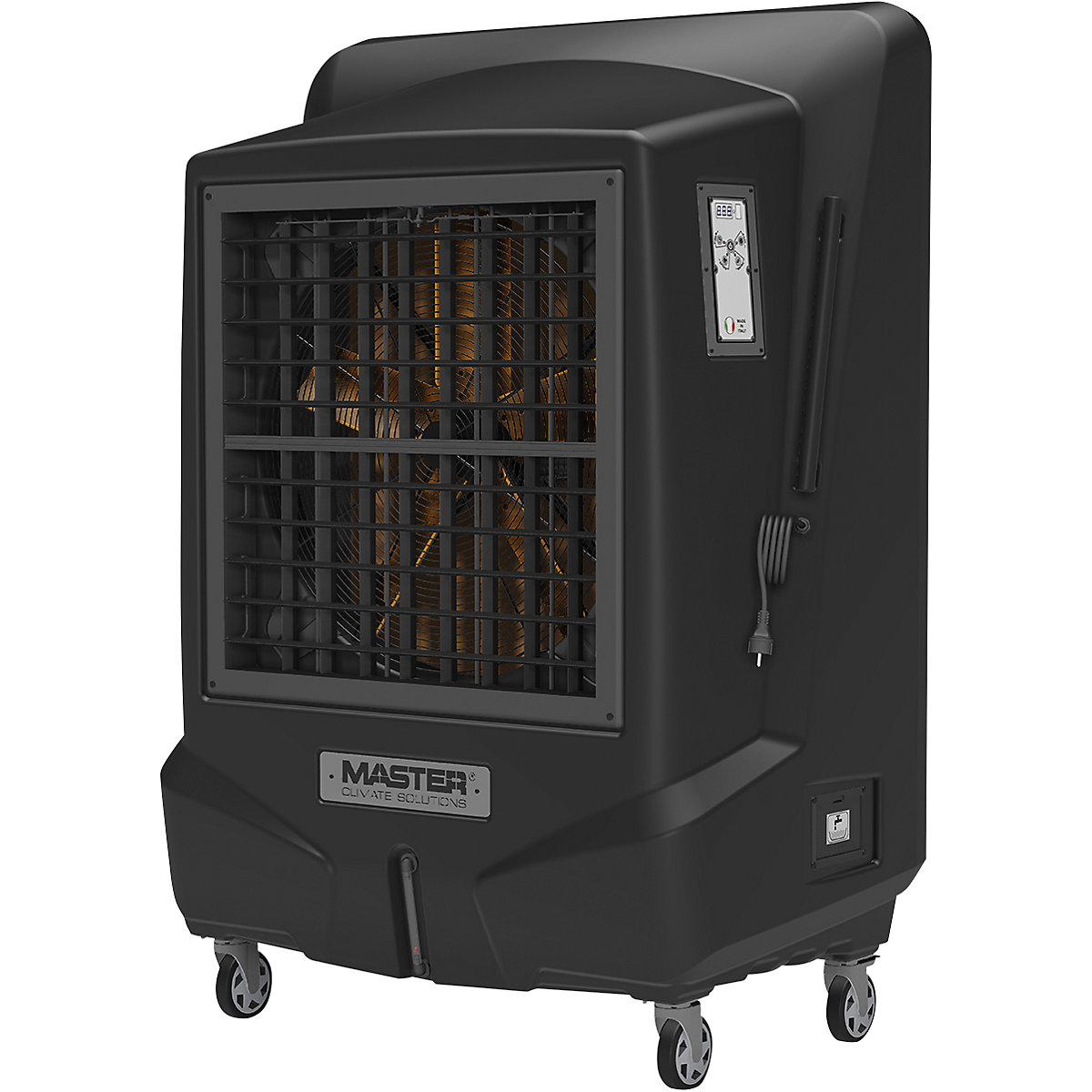

Evaporative cooler BC 221 S – Master 0.8 kW, room size 330 m²

In many working environments, employees suffer from severe heat generation, e.g. in the summer months or due to heat radiation from machines etc. Controlling the temperatures is often difficult here through structural measures or the installation of air conditioning systems. Conventional fans do provide air movement, but do not lower the actual room temperature. Our evaporative cooler provides a remedy here!

The basis of the operation of these air cooling devices is cooling by evaporation, which uses the energy exchange between water and air. The air conditioners with evaporation cool the air by using the natural process of water evaporation. The air conditioners consist of an evaporation plate, a fan and a cascade system for distributing the water. The fan draws in the air from outside and guides it through the evaporation plate, which consists entirely of cellulose and is kept constantly wet by a suitable system that pumps the water. The device is filled with tap water. A powerful fan distributes the air cooled in this way over a large area in the room. There is a choice of three speeds for increasing or decreasing the fan speed. The pump and fan can also be operated independently of each other.

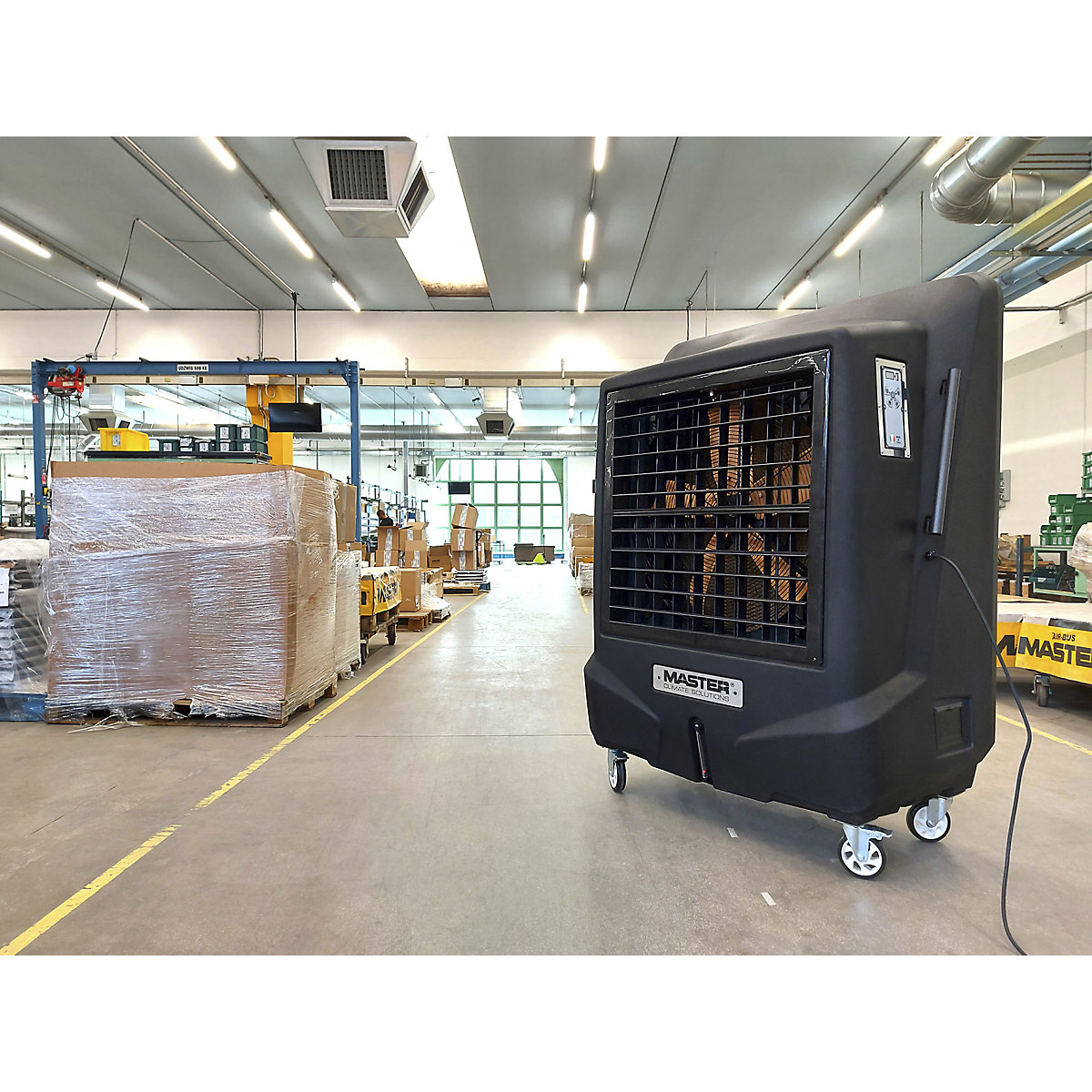

Efficient and durable cooler for industrial applications. Corrosion-resistant plastic housing, including an air filter for easy maintenance. Remote control for easy speed adjustment, UV lamp that disinfects the water. As an inexpensive additional model to air conditioning systems, evaporative coolers are easy to maintain, require no installation and consume very little energy. Simply connect the water supply or fill up the water tank and users can enjoy permanently effective cooling. Further applications are also possible in paint shops, hangars, the aviation sector, agriculture and greenhouses.

The current generation of devices features a certified UV lamp for water disinfection in accordance with directive (EU) 2020/2184. Improved internal wiring with high-quality cable glands protects electrical components from water ingress. Additionally, the device is equipped with a newly developed, removable metal fan guard on the front. All four wheels feature brakes and ensure stable positioning during operation.

Cooling filter: 180 dm³
Max. area: 250 m²
Energy consumption: 750 W
Water consumption: 10 – 15 l/h
Appliance class IPX1
