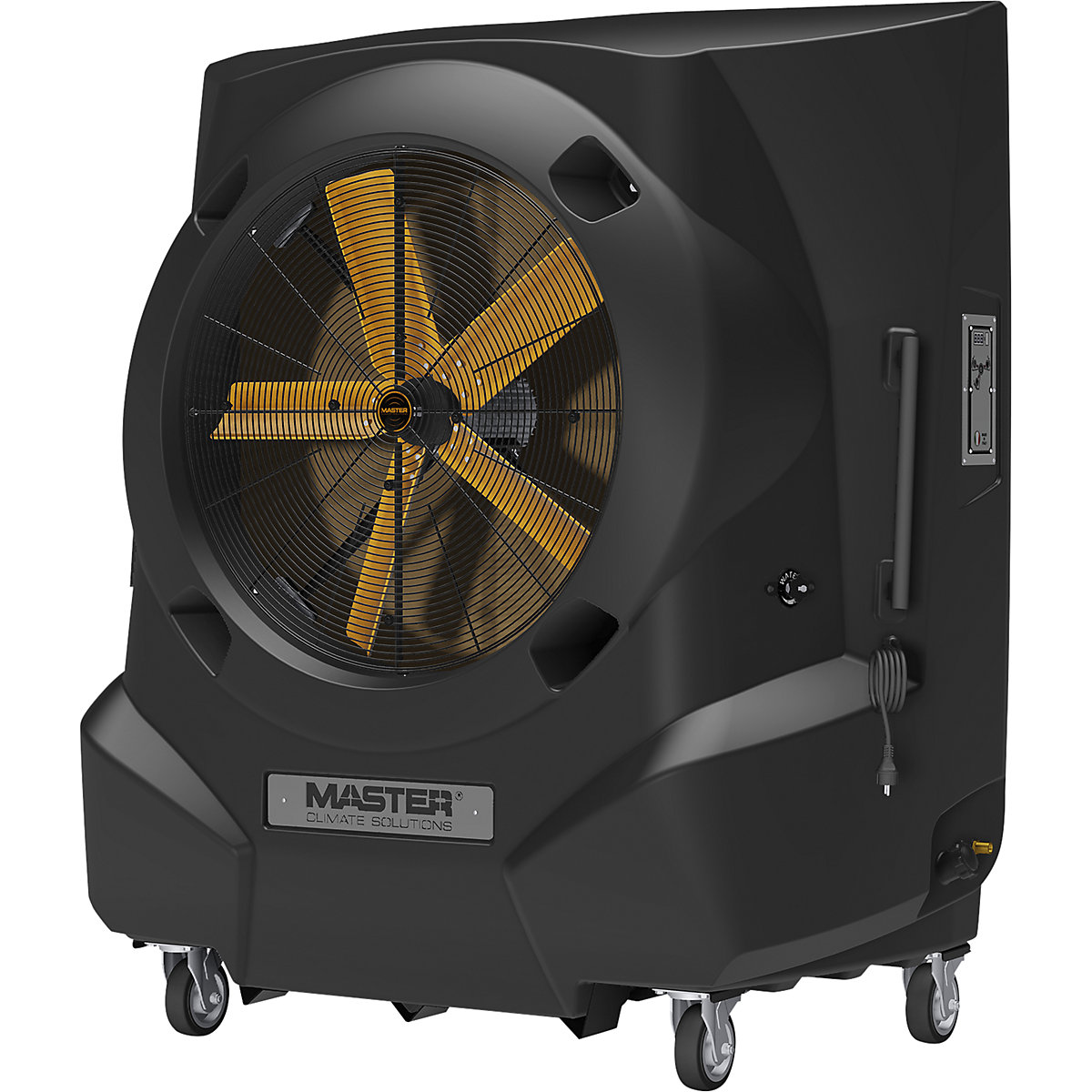

Evaporative cooler BC 341 S – Master 1.05 kW, room size 400 m²

In many working environments, employees suffer from intense heat generation, e.g. in the summer months or due to heat radiation from machines, etc. Controlling temperatures here is often difficult through structural measures or the installation of air conditioning systems. Although conventional fans provide air movement, they do not lower the actual room temperature. Our evaporative cooler provides a remedy here!

The basis of operation of these air conditioners is cooling by evaporation, which uses the energy exchange between water and air. The air conditioners with evaporation cool the air by using the natural process of water evaporation. The air conditioners consist of an evaporative panel, a fan and a cascade system for water distribution. The fan draws in air from the outside and guides it through the evaporative panel, which consists entirely of cellulose and is kept constantly wet by a suitable system that pumps the water. The device is filled with tap water. A powerful fan distributes the air cooled in this way over a large area in the room. There are three speeds to choose from for increasing or decreasing the fan speed. The pump and fan can also be operated independently of each other.

Efficient and durable cooler for industrial applications. Corrosion-resistant plastic housing, including air filter for easy maintenance. Remote control for easy speed setting, UV lamp that disinfects the water. As budget-friendly additional models to air conditioning systems, evaporative coolers are easy to maintain, require no installation and consume very little energy. Simply connect the water supply or fill up the water tank and users can enjoy permanently effective cooling. Further applications are also possible in paint shops, hangars, in the aviation sector, in agriculture and in greenhouses.

The current generation of devices features a certified UV lamp for water disinfection in accordance with Directive (EU) 2020/2184. Newly developed evaporation panels reduce pressure loss and improve airflow guidance for more efficient cooling performance. The newly designed metal fan protection grille on the front is removable and facilitates maintenance work. Improved internal wiring with high-quality cable glands protects electrical components from water ingress. All four wheels are equipped with brakes and ensure a secure stand during operation.

Cooling filter: 340 dm³
Max. area: 400 m²
Energy consumption: 1300 W
Water consumption: 15 – 20 l/h
Appliance classes IPX1
