Vertical baling press – HSM handwheel door lock, loading flap

Vertical baling press – HSM

pressing force 178 kN

on request
Price / item (Ex. VAT)
Availability: 10-12 weeks
Product description

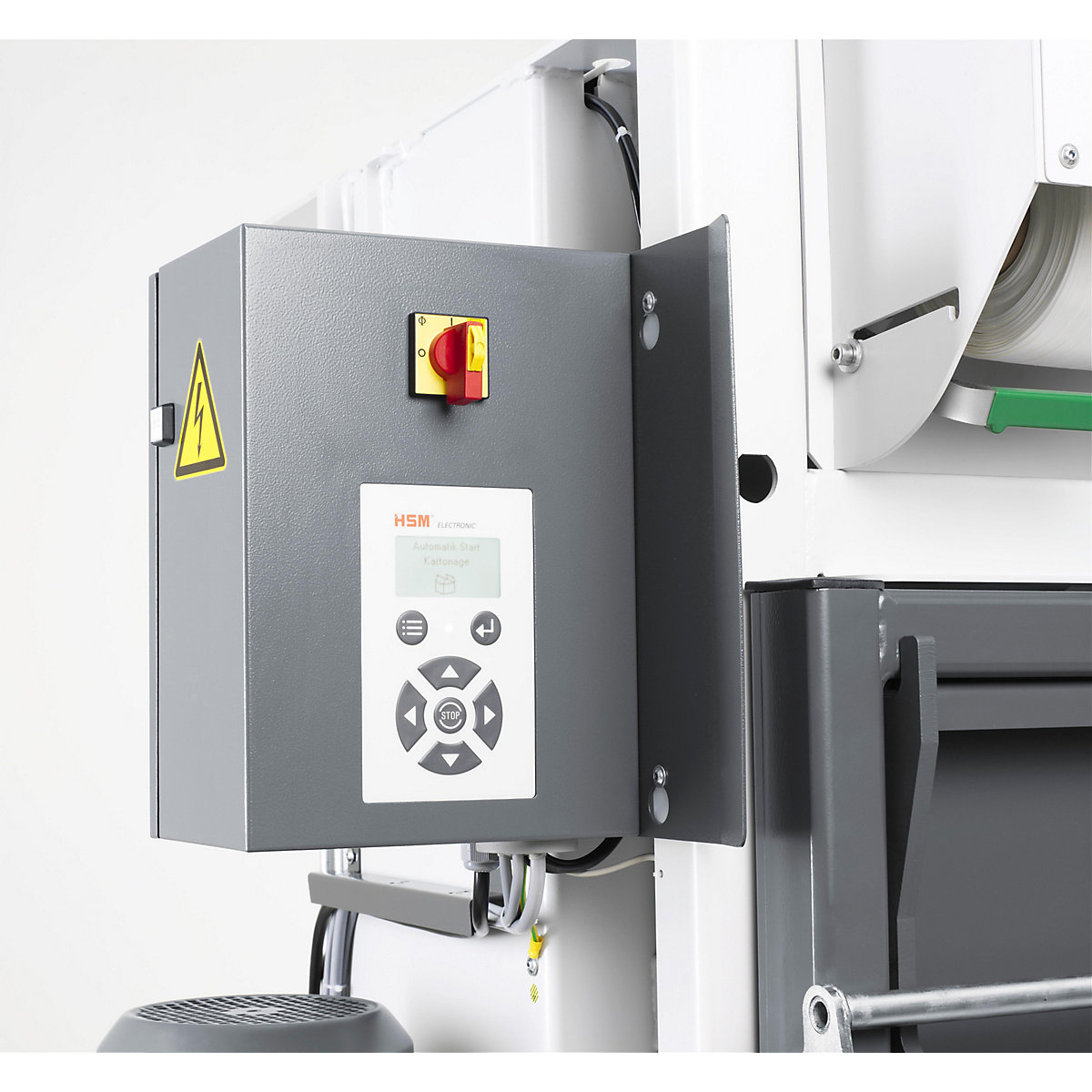

  • Modern microprocessor control and membrane keypad with LED display and text display
  • Special retaining claws optimise the compaction of the pressing material
  • Quick and easy assembly of the press

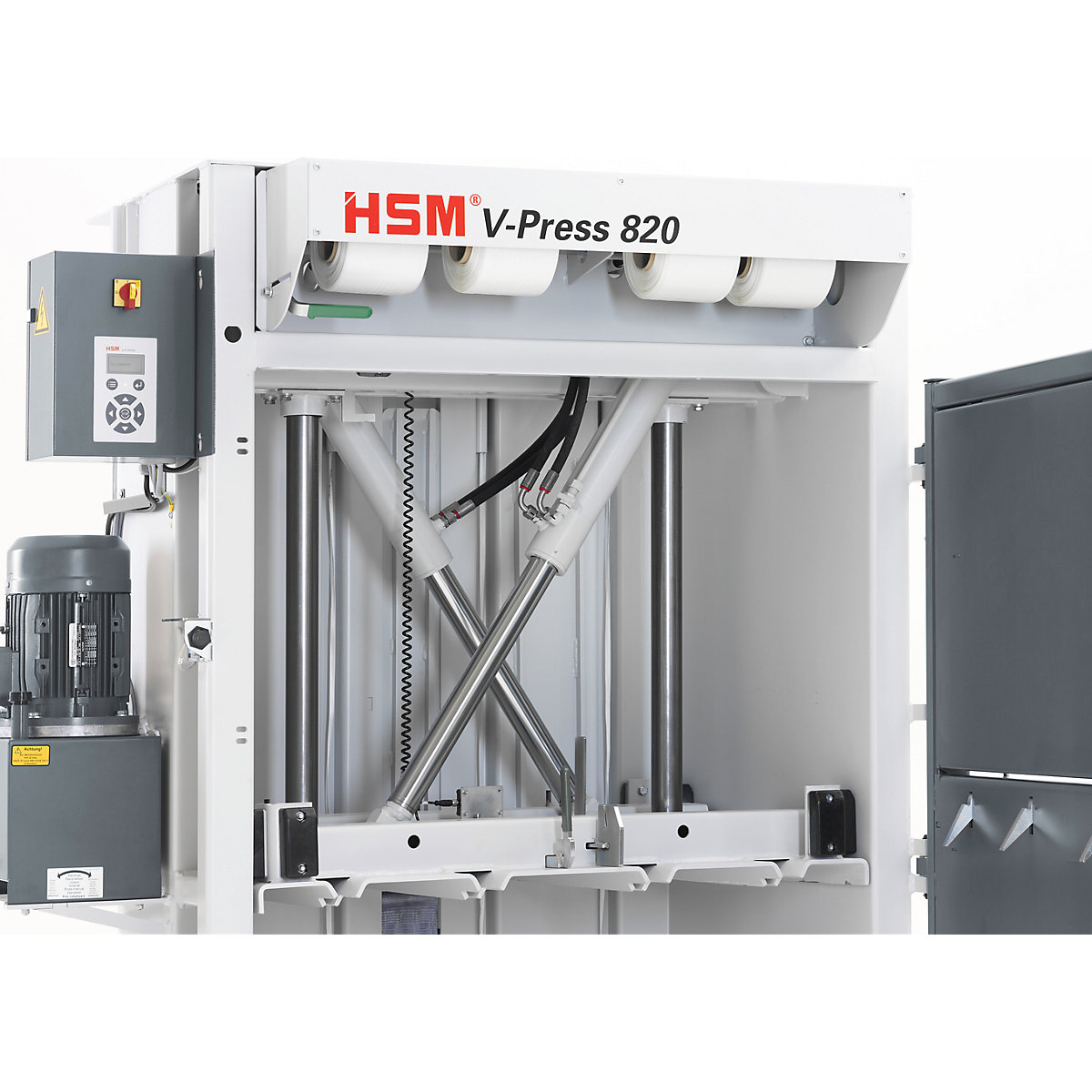

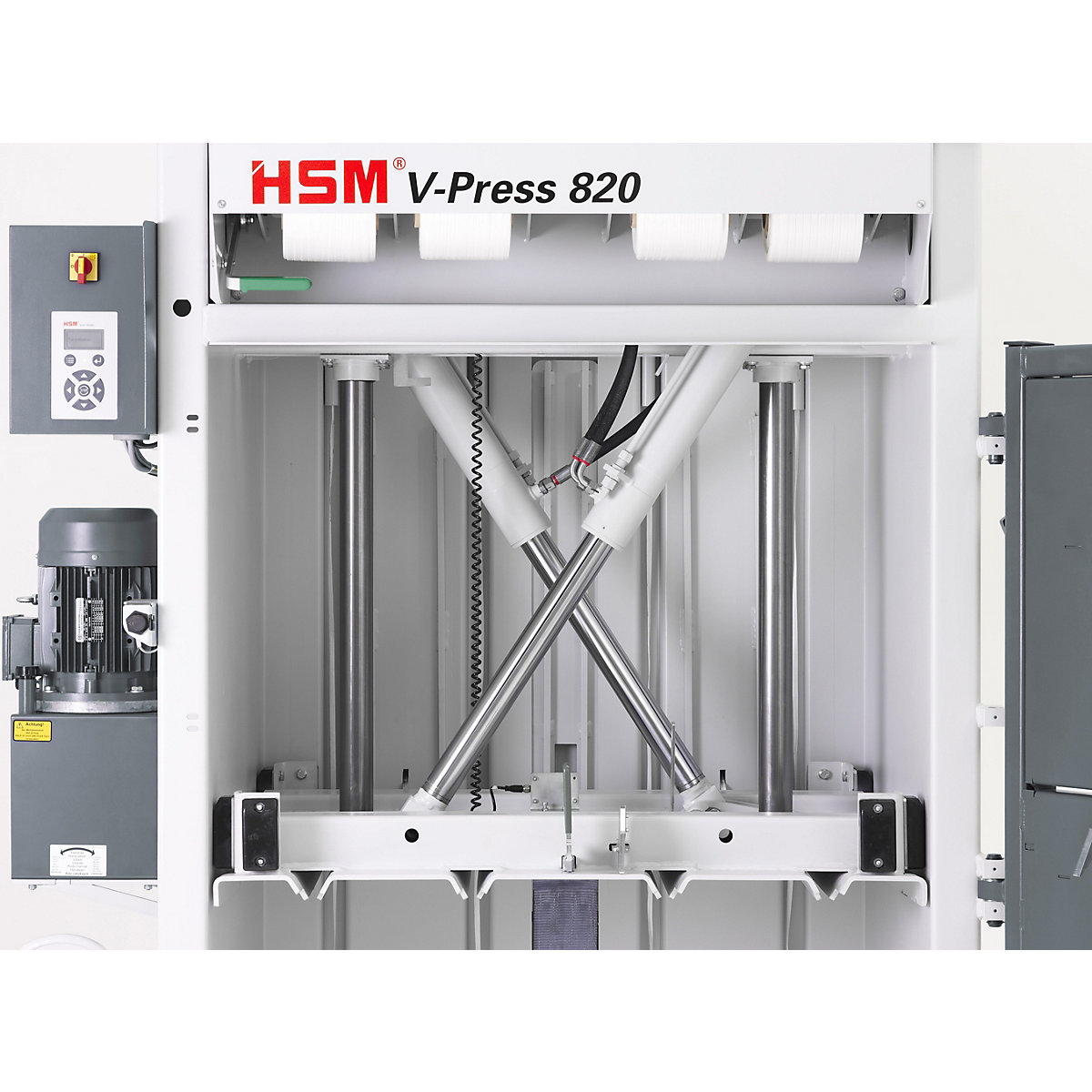

  • Particularly low overall height due to crossed cylinders
The baler is characterised by its powerful motor, space-saving design and sophisticated and innovative technology.
Technical data
Pressing force178 kN
Drive power4 kW
Voltage400 V
Filling opening (WxH)1195 x 558 mm
Bale weight max.250 kg
Bale size (LxWxH)1200 x 780 x 1000 mm
Number of bales per hour2 – 5 pcs.
Dimensions of machine (HxWxD)2470 x 1700 x 1075 mm
Weight1300 kg
For strap type4-fold polyester strapping
Door versionloading flap
Door latchhand wheel
Press capacity when idling205 m³/h
Cycle time when idling23 sec
Frequency50 Hz
Cutting performance / stack height928 mm
Press chamber dimensions (HxWxD mm)1400 x 1200x 780 mm
Product typebaling presses
Suppliedassembled
