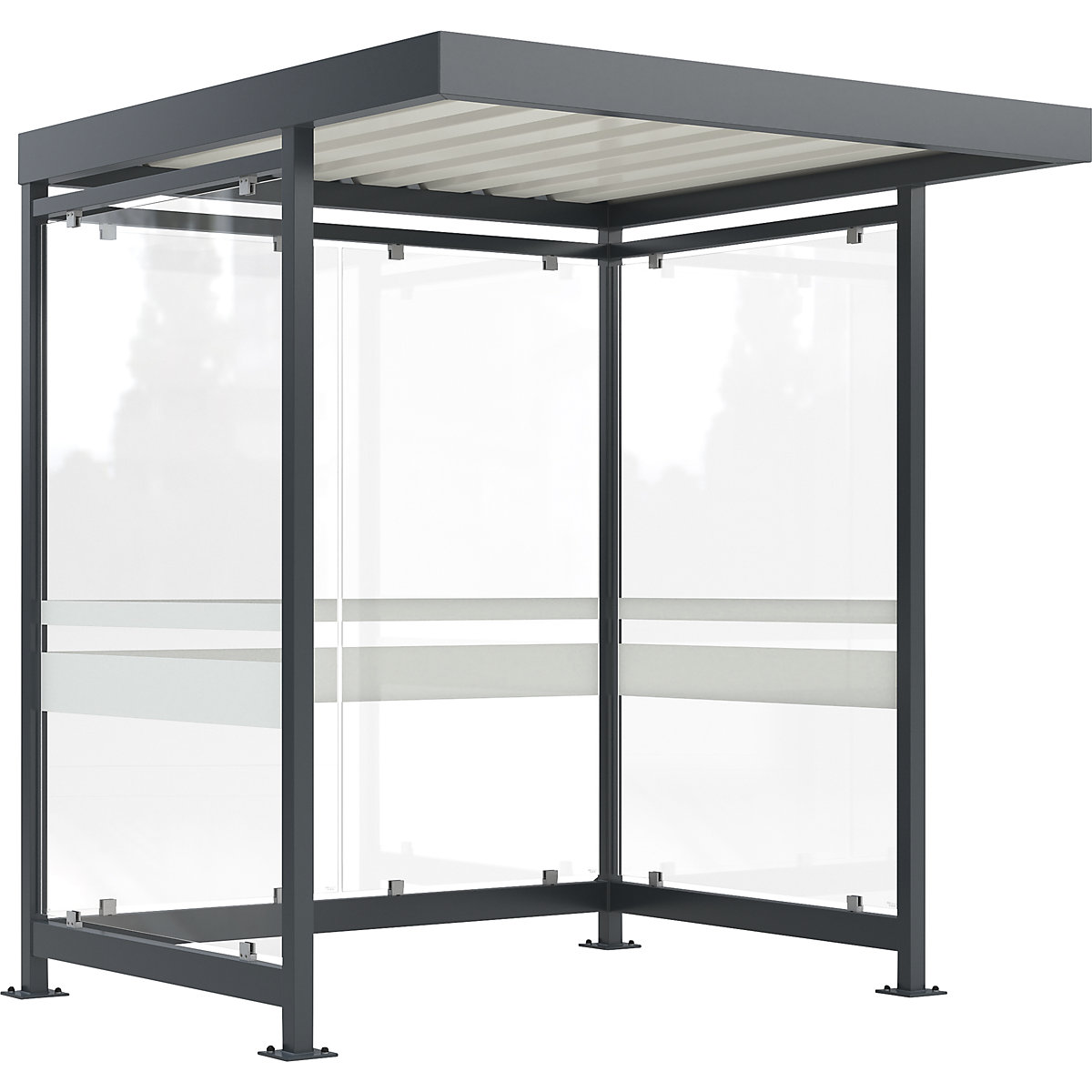

Canopy Köln with steel roof – WSM 4 glass units, open, fully assembled

Shelter for persons in a modern design, glass with two stylish screen printed stripes.

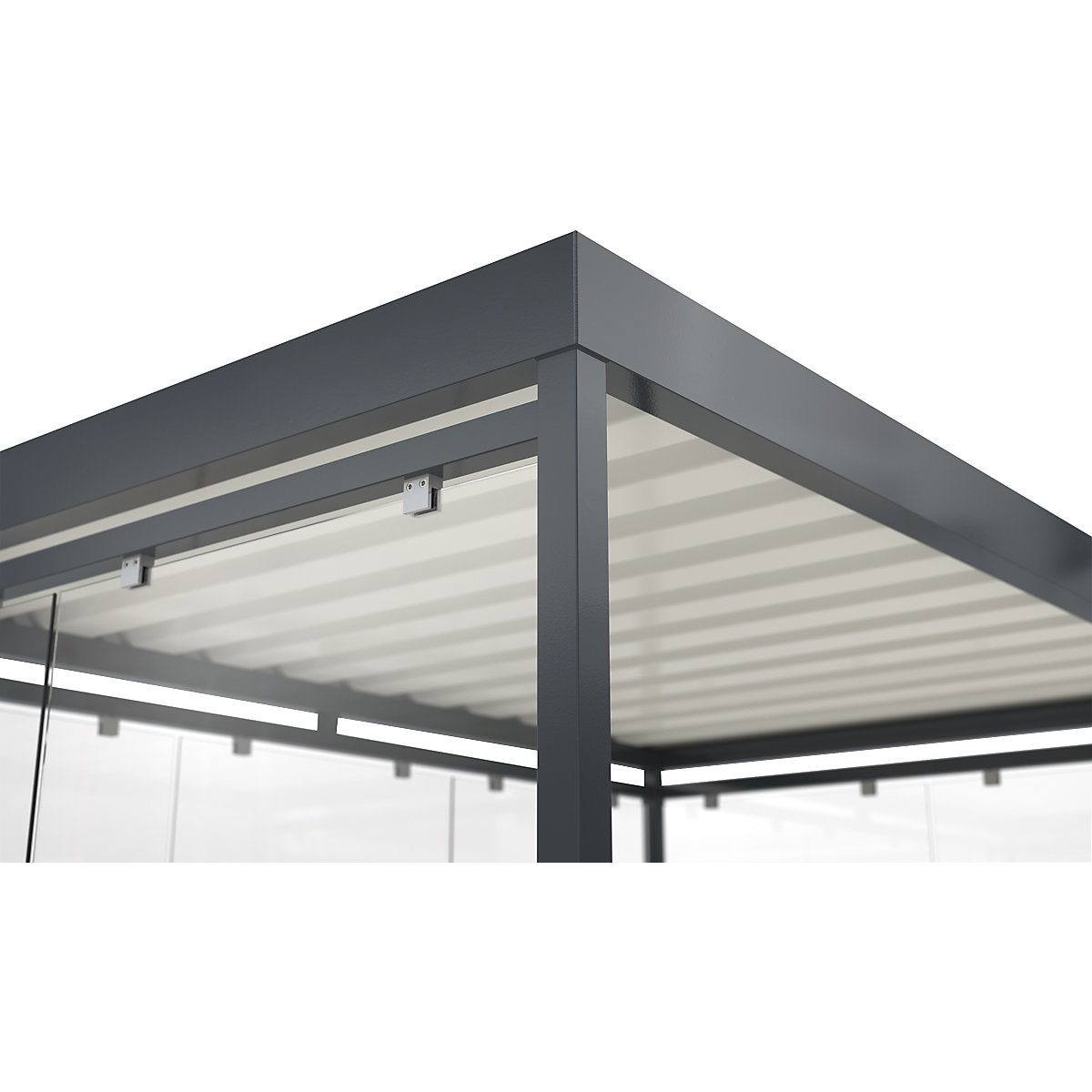

Ceiling always in grey white RAL 9002.

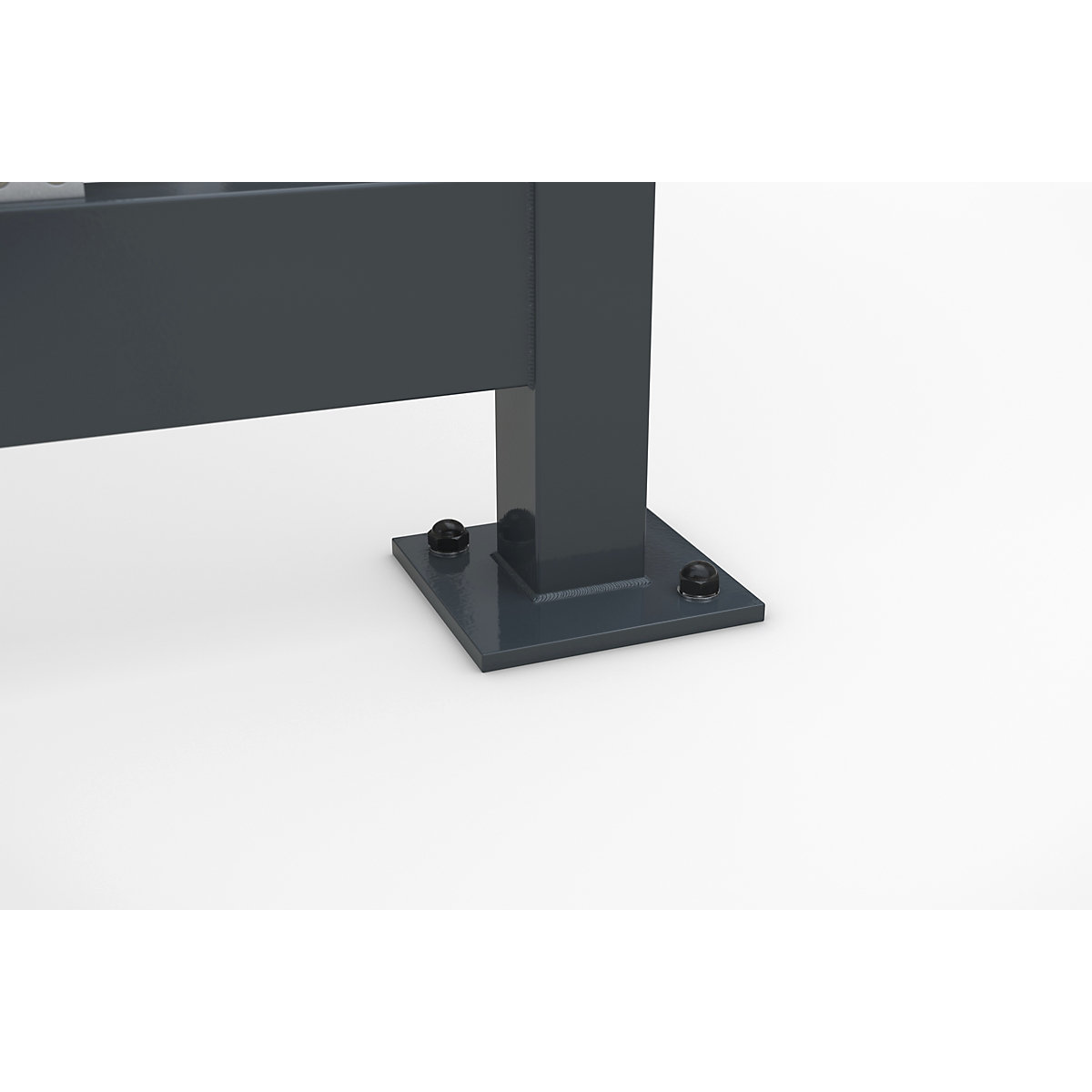

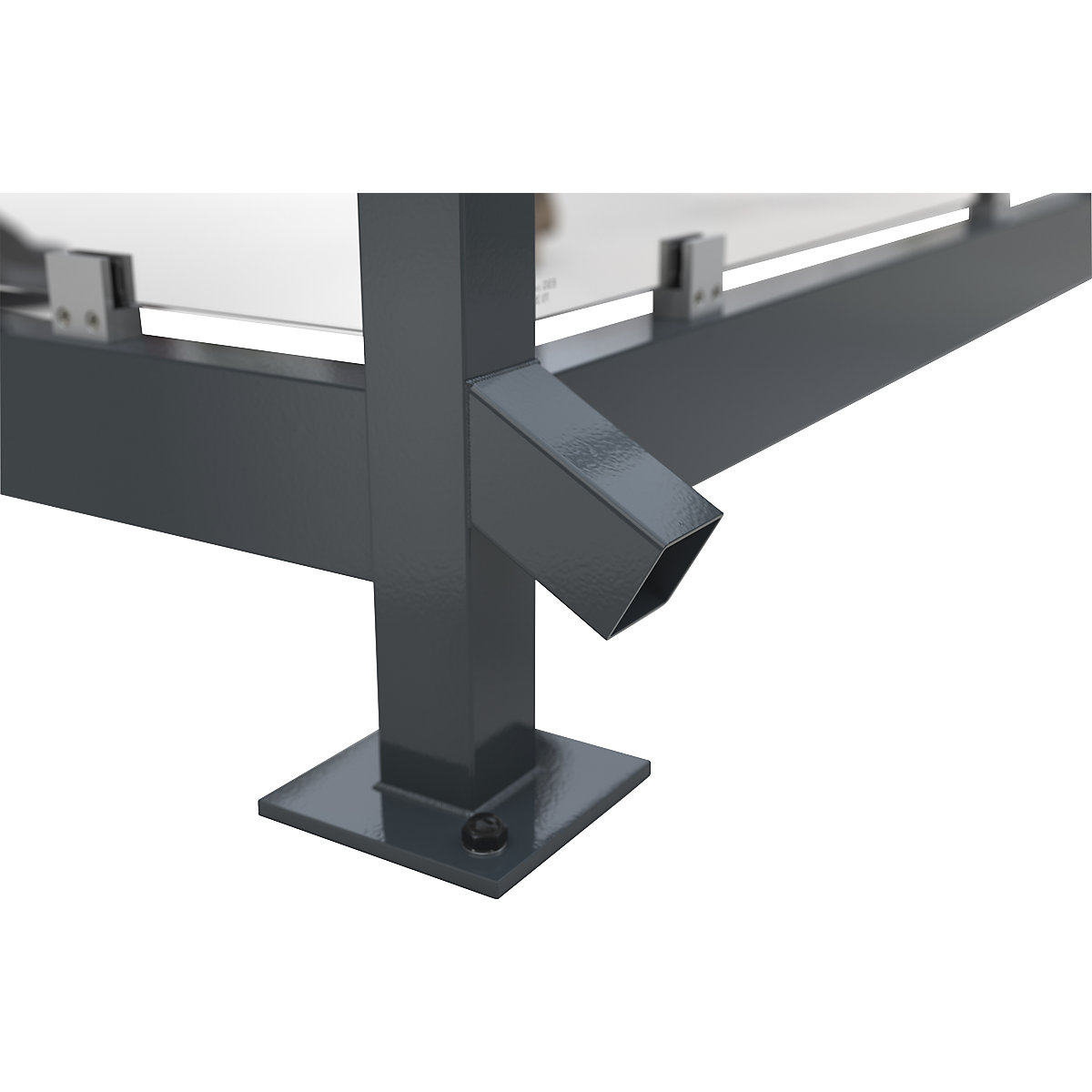

Robust, load bearing steel construction made of tubular profiles with base plates to bolt in place. Max. snow load 110 kg/m².
Rear, side and front glazing (width x height 1000 x 2000 mm) made of 8 mm single pane safety glass.

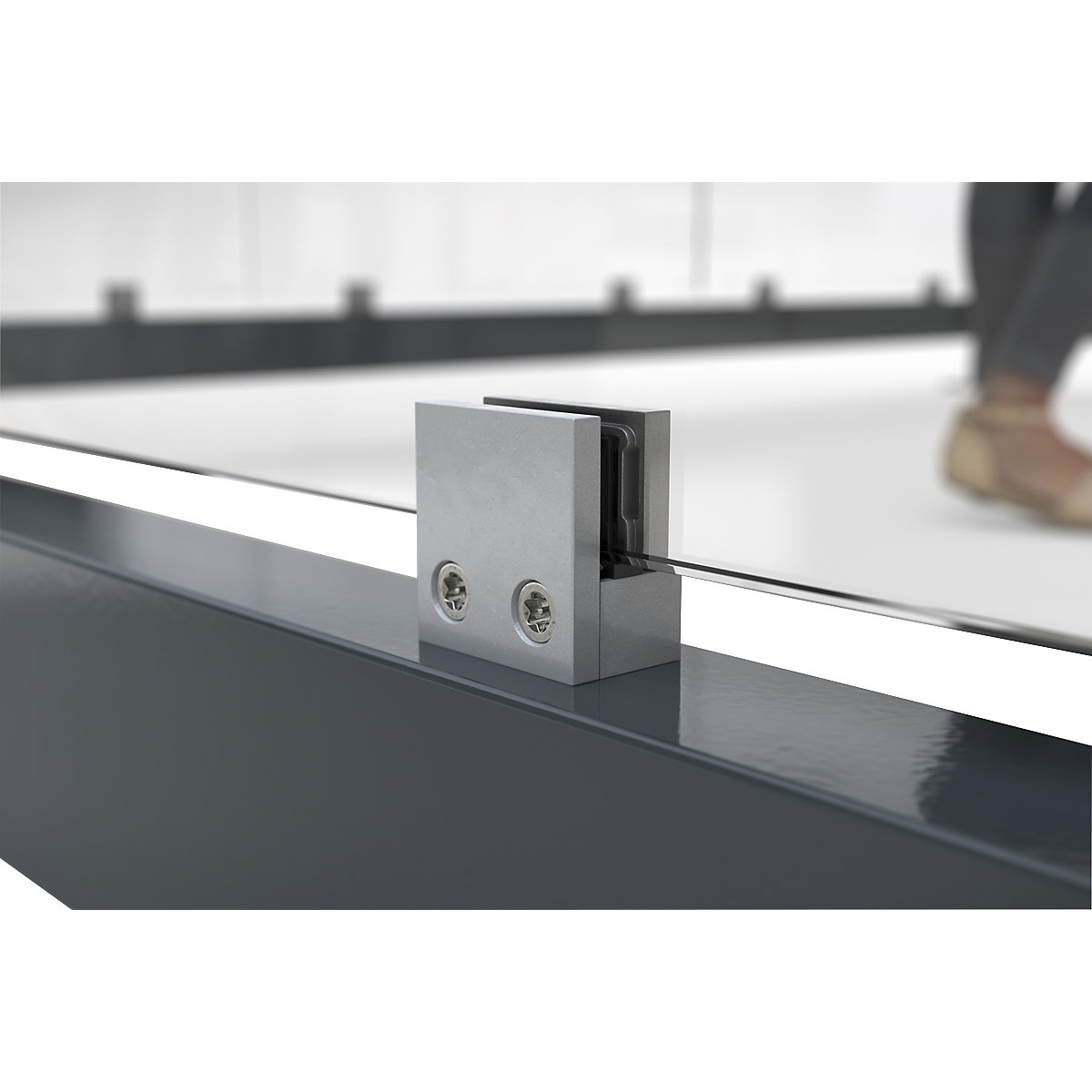

Fastened directly to the steel construction by glass holders.

The shelters must be anchored to a level, firm foundation provided by the customer.

Note: this product is made to order and the right of return is therefore excluded.

Available on request:
– Paintwork in additional RAL colours
– Custom screen printing on glass
– Custom designs
– Higher max. snow loads

Delivery instructions:
A stacker or crane with a lifting capacity of up to 2000 kg and 2.4 metre long forklift pockets or a corresponding crane harness is required for unloading.
Ordering crane/stacker unloading under Accessories is also recommended. Materials for fixing the shelter to the foundation can also be ordered here as an accessory.

Delivery is carried out by articulated lorry (40 t) as standard, which is why a clearance of 3 x 4 metres and a manoeuvring area of 3 x 19 metres must be available – see checklist. Delivery is made to the foundation provided by the customer, provided it is accessible for the articulated lorry.
