Ref.: 747614 10

Workis 10 LED lamp with articulated arm 10 W, 830 lm, IP65

Workis 10 LED lamp with articulated arm
Workis 10 LED lamp with articulated arm, 10 W, 830 lm, IP65, 6000 K, daylight white-0
Workis 10 LED lamp with articulated arm (Product illustration 2)-1
Workis 10 LED lamp with articulated arm (Product illustration 3)-2

6000 K, daylight white

529,00 €
Price / item (Ex. VAT)


Product description

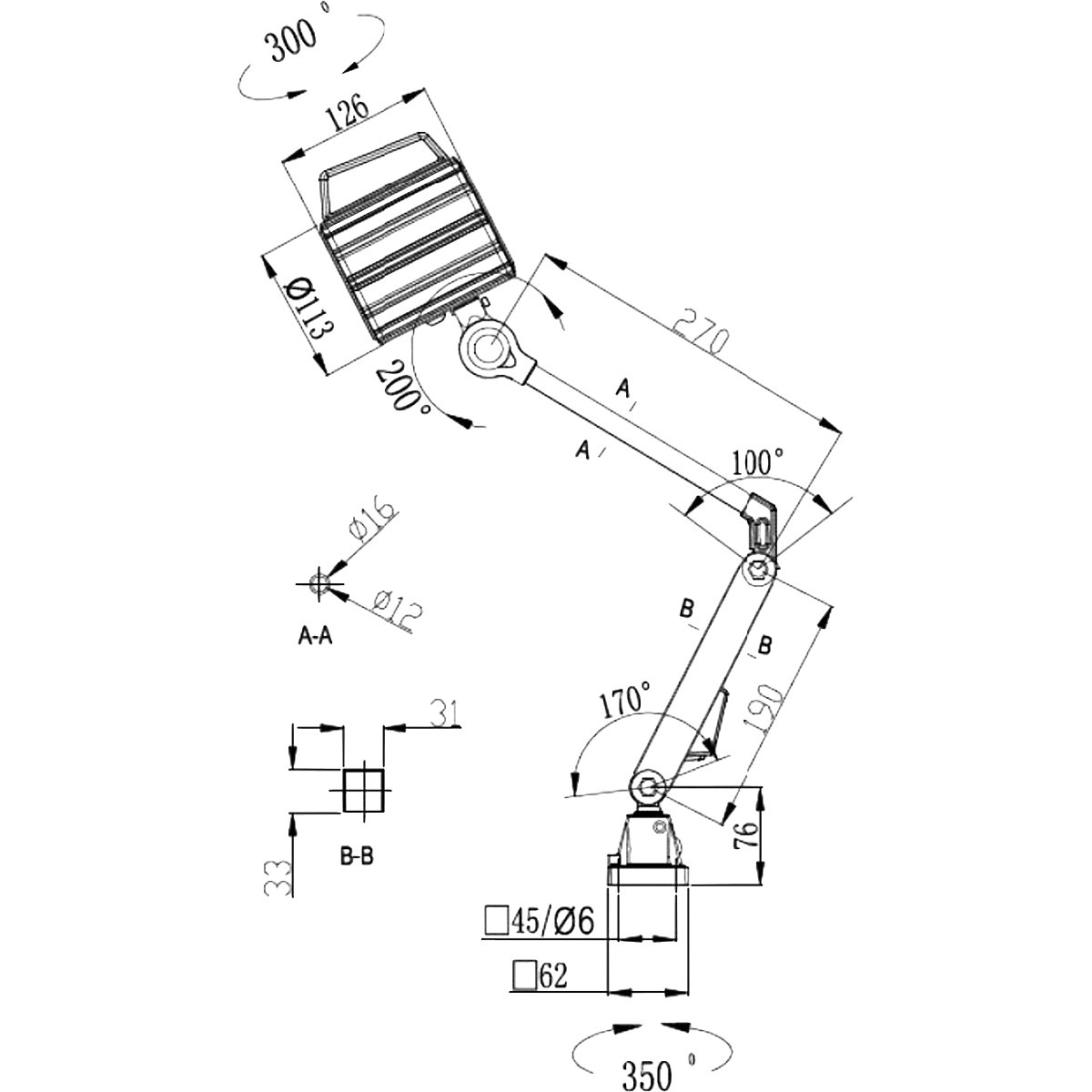

Whether it's being used at the workbench or for checking a machine, the LED lamp with an articulated arm is made for demanding applications in industry. The LED lamp with an articulated arm provides support with the task at hand by providing selective illumination. Articulated arm length 270 mm at the top, 190 mm at the bottom. The lamp features robust housing made of anodised aluminium, and the lens is made of hardened plastic which is oil resistant. Corrosion and high temperature resistant, IP65 waterproof, suitable for a wide range of environments and applications. The high efficiency LED chip with a PC lens, high lumen output and uniform illumination, the articulated arm that allows the lamp to be positioned conveniently and the direction in the which the light shines to be controlled exactly are the distinguishing features of this lamp. The lamp is used at CNC machine workstations, engraving machines, eroding machines, etc., for assembly and repair work, and in laboratories. The magnetic base ensures stability of the lamp. However, the magnets can also be removed if necessary and the screw holes provided can then be used to secure the lamp in position (4 fastening points) on a surface. The base of the lamp can be fitted with magnets to enable versatile use. On/Off switch on lamp. Ambient operating temperature: –10 °C to +60 °C. Built-in electronic LED driver for operation at 100 – 240 V. Input voltage AC 100 – 240 V (50 – 60 Hz). Open cable ends for direct connection or a plug connection, 1.5 m 3 x 0.75 H05RN-F cable.
  • Dust and splash water protection IP65
  • Focussed, powerful light spot
  • Lamp head rotates 300° and tilts 200°
  • Stable and flexible arm with magnetic base
  • Resistant to high temperatures and oil
  • Powder coated lamp head for high corrosion resistance
  • Silicone seals for a long service life
Technical data
Power10 watt
BulbLED
Mains voltageAC 100 – 240 V
Colourgrey
silver
black
Protection typeIP65
Energy consumption9.5 kWh/1000h
Mains cable1.5 m
Lens diameter108 mm
Light head materialanodised aluminium
Light head diameter113 mm
Service life50000 hrs
Luminous flux830 lumen
Lamp head height126 mm
Weight1.5 kg
Luminous colourdaylight white
Colour temperature6000 K
Base width62 mm
Base depth62 mm
Arm length460 mm
Materialanodised aluminium
plastic
Beam angle35 °
Energy efficiency class for each light sourceF (spectrum A to G)
Colour reproduction index80
Overall height656 mm
Product typemachine lamps
Suppliedassembled
