Ref.: 871454 10 (PN454490N)

Emba-Swing® membrane packaging pack of 50

Emba-Swing® membrane packaging

internal dimensions 450 x 440 x 90 mm

New
pack of 50 only
on request
Price / pack (Ex. VAT)
You will receive 50 items
Availability: 3-4 Working Days
Ref.
871459 10 PN171770N
871463 10 PN251880N
871485 10 PN281880N
871469 10 PN302080N
871466 10 PN282380N
871472 10 PN4030100N
871454 10 PN454490N
871475 10 PN5030120N
871479 10 PN5040160N
871482 10 PN5050160N
Packaged items max. LxWxH [mm]
Max. load [kg]
Height [mm]
Width [mm]
Length [mm]
Quantity on pallet [pcs.]
Film thickness [µm]
170 x 170 x 70 mm
3
230
226
236
250
75
250 x 180 x 80 mm
4
246
300
340
250
75
280 x 180 x 80 mm
6
256
180
280
250
75
300 x 200 x 80 mm
6
270
300
400
100
100
280 x 230 x 80 mm
8
288
334
422
100
75
400 x 300 x 100 mm
10
270
300
400
50
100
450 x 440 x 90 mm
15
228
400
500
50
100
500 x 300 x 120 mm
20
558
404
644
50
100
500 x 400 x 160 mm
25
558
504
648
50
100
500 x 500 x 160 mm
30
558
604
648
50
100
Price / pack (Ex. VAT)
Select
Product description
  • Suspended product protection through flexible membrane cushions
  • High shock and vibration damping
  • Reusable and recyclable
  • No additional padding material required
  • Fast packaging and easy handling
  • Suitable for sensitive products up to approx. 35 kg

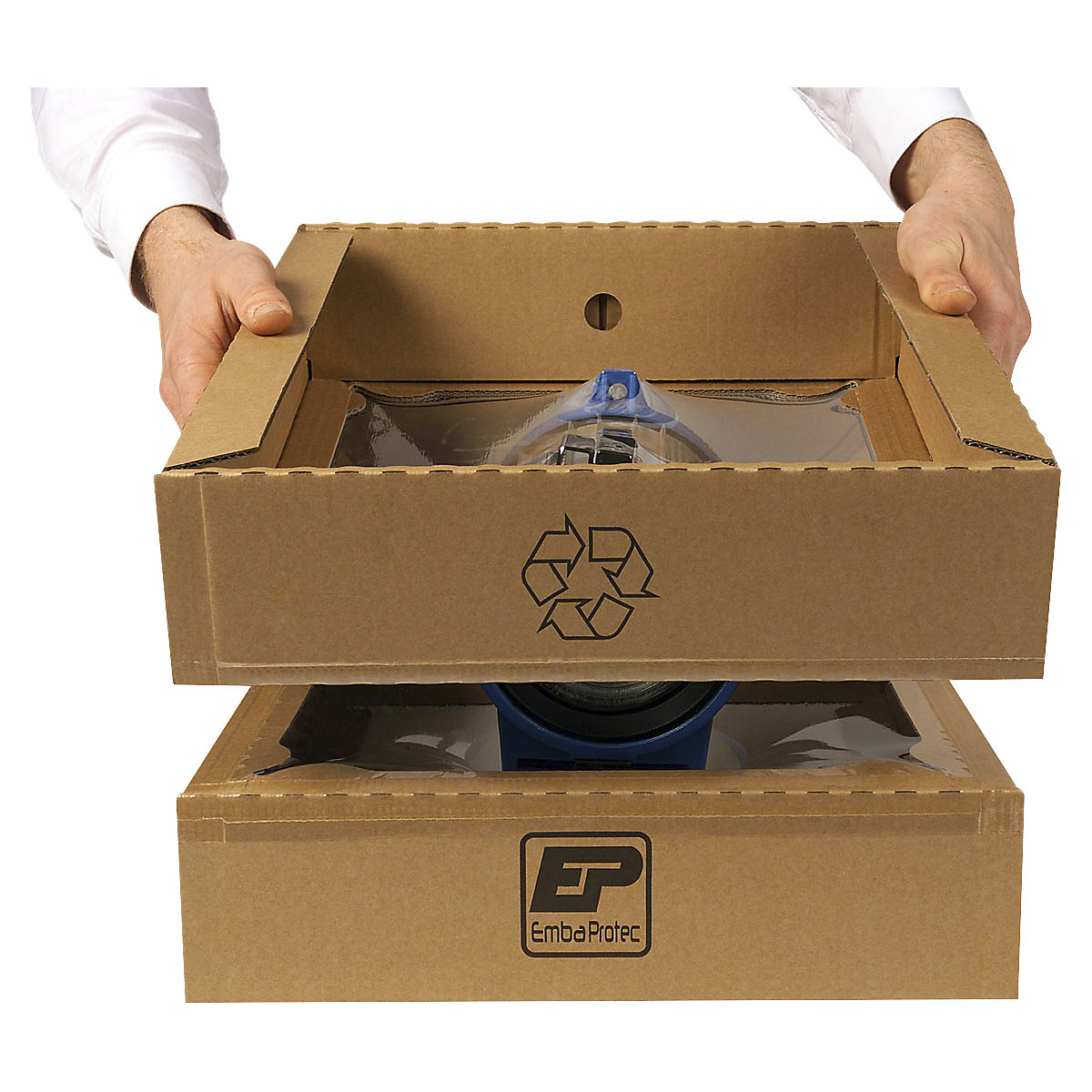

The Emba-Swing® membrane packaging is ideal for the safe shipping of sensitive and shock-sensitive products. The goods to be shipped are securely fixed between two highly flexible membrane cushions and transported 'floating' inside the box. This reliably absorbs shocks, impacts and vibrations – even under demanding transport conditions. The flexible, yet extremely tear-resistant film adapts optimally to different product contours and ensures a firm hold without additional cushioning material.

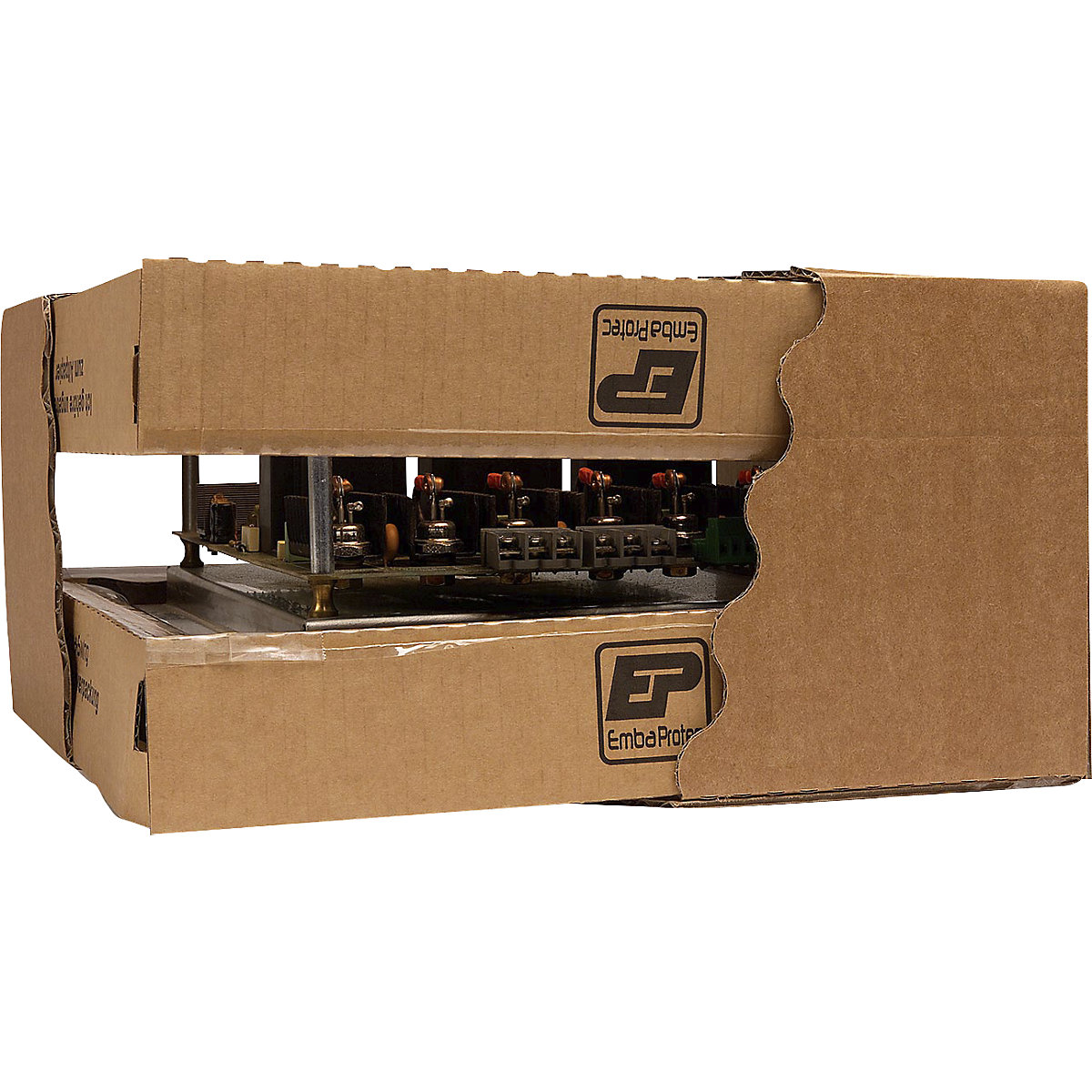

The protective packaging is particularly suitable for electronics, measuring instruments, sensitive components, spare parts or high-quality products with varying geometries. Thanks to the flexible membrane technology, multiple product variants can often be shipped using just one packaging size. This reduces storage effort and simplifies packaging processes. At the same time, the membrane packaging impresses with its quick handling and professional product presentation for the customer.

Compared to classic foam solutions, Emba-Swing® requires less storage space and does not require loose-fill material. The packaging is reusable and can be disposed of with waste paper after use. It thus offers an efficient and resource-saving solution for the safe shipping of sensitive products.

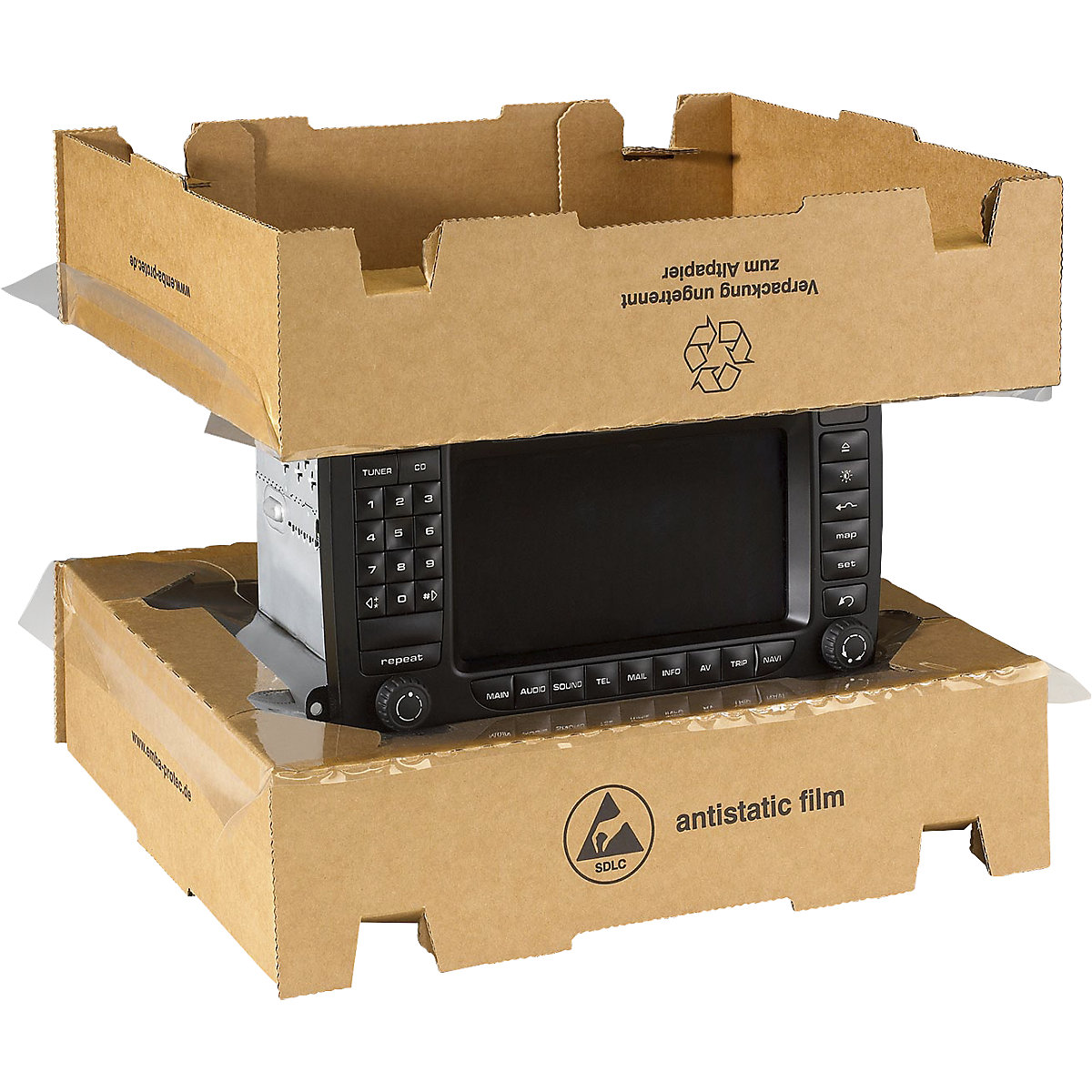

Available with VCI or ESD film on request.
Technical data
Colourbrown
Materialfilm
Gradebetter
FEFCO code0201
Product typeretention packaging
Weight1 kg
Packaged items max. LxWxH450 x 440 x 90 mm mm
Max. load15 kg
Height228 mm
Width400 mm
Length500 mm
Quantity on pallet50 pcs.
Film thickness100 µm
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.
FSC® certification
FSC® – the symbol for responsible forestry management
FSC® is an independent certification awarded for responsible forest management and sustainable forestry practices. FSC certified products are produced by companies that are committed to ensuring the protection of forests and the environment, and to respecting the rights and needs of employees, communities and indigenous peoples.
‌
‌
‌
