Ref.: 860418 10 (ESD05N)

ESD-CORproTRONIC® foam packaging corrugated cardboard, single fluted

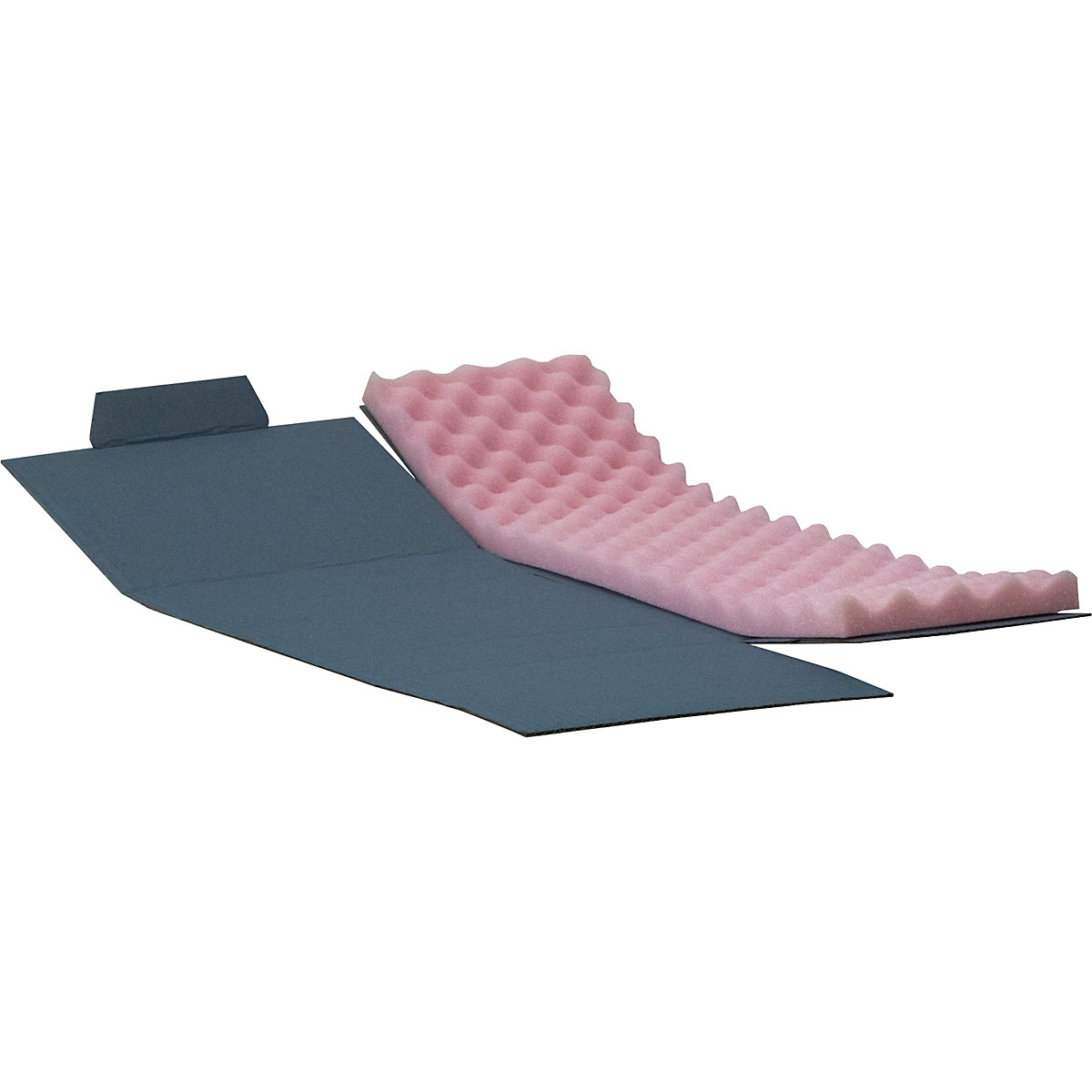

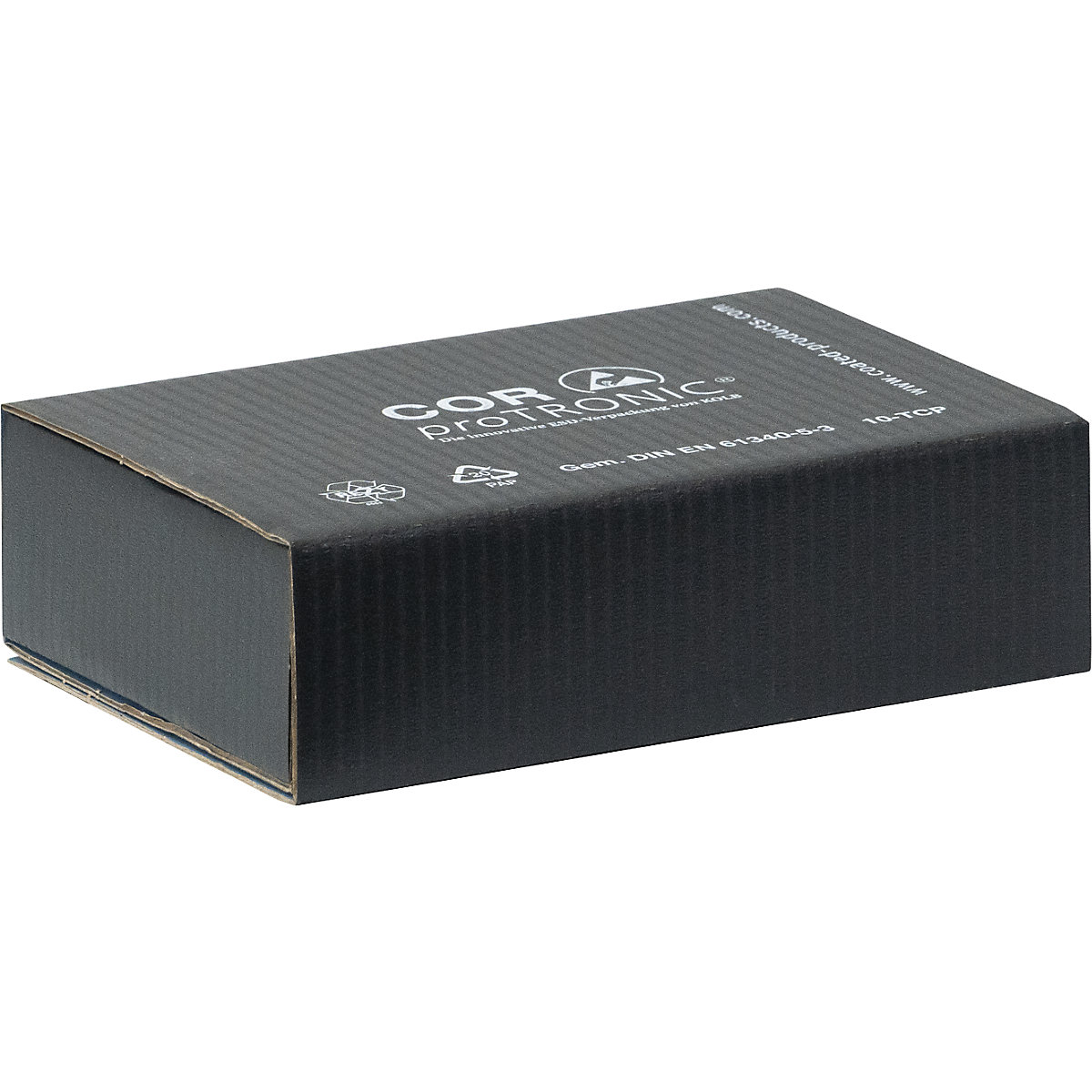

ESD-CORproTRONIC® foam packaging

LxWxH 150 x 115 x 40 mm, 10+ items

New
on request
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Or
Ref.
860418 10 ESD05N
860423 10 ESD10N
860427 10 ESD20N
Colour
Packaged items max. LxWxH [mm]
Height [mm]
Width [mm]
Length [mm]
black
125 x 90 x 15 mm
40
115
150
black and blue
175 x 115 x 25 mm
50
140
200
black and blue
255 x 115 x 75 mm
100
140
280
Price / item (Ex. VAT)
Select
Product description
  • Electrically conductive coating on the inside and outside
  • ESD protection for sensitive components in all dispatch areas
The ESD-CORproTRONIC® foam packaging is the functionally revised and visually modernised successor model of the proven conductive foam box with shielding function. It offers reliable, compact and robust protection for electronic components and is ideally suited for shipping electrostatically sensitive products – both in controlled ESD areas and in uncontrolled environments.

Thanks to its internally and externally conductive coating, electrical fields are effectively shielded and electrostatic voltages are safely discharged. The box can be assembled quickly and easily, is delivered flat to save space and is provided with a clearly visible ESD warning symbol – for maximum safety and clear ESD identification.

Surface resistance (Ohm):
– Outside < 104
– Inside 107-9

Energy Bag Test < 10nJ
according to ANSI/ESD STM 11-31
IEC 61340-4-8
Technical data
Corrugated cardboardsingle fluted
Lock typeplug fastener
Materialcorrugated cardboard
Product typeESD Cortronic packaging
Colourblack
Packaged items max. LxWxH125 x 90 x 15 mm mm
Height40 mm
Width115 mm
Length150 mm
Weight0.06 kg
