Ref.: 871004 10
Power module for industrial workstations – RAU 6 sockets 230 V, 2 x compressed air
width 1000 mm
Fittings
Width [mm]
Ref.: 871004 10
Power module for industrial workstations – RAU 6 sockets 230 V, 2 x compressed air
width 1000 mm
width 1000 mm
Fittings
Width [mm]
New
on request
Price / item (Ex. VAT)
Availability: 3-4 weeks
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Efficient order processes for business customers
We will be happy to help you
export@kaiserkraft.com
Do you have any questions about this product?on request
Price / item (Ex. VAT)
Product description
- Practical power supply at the workplace
- Delivered completely wired and earthed
- Includes 5-pin mains cable with plug

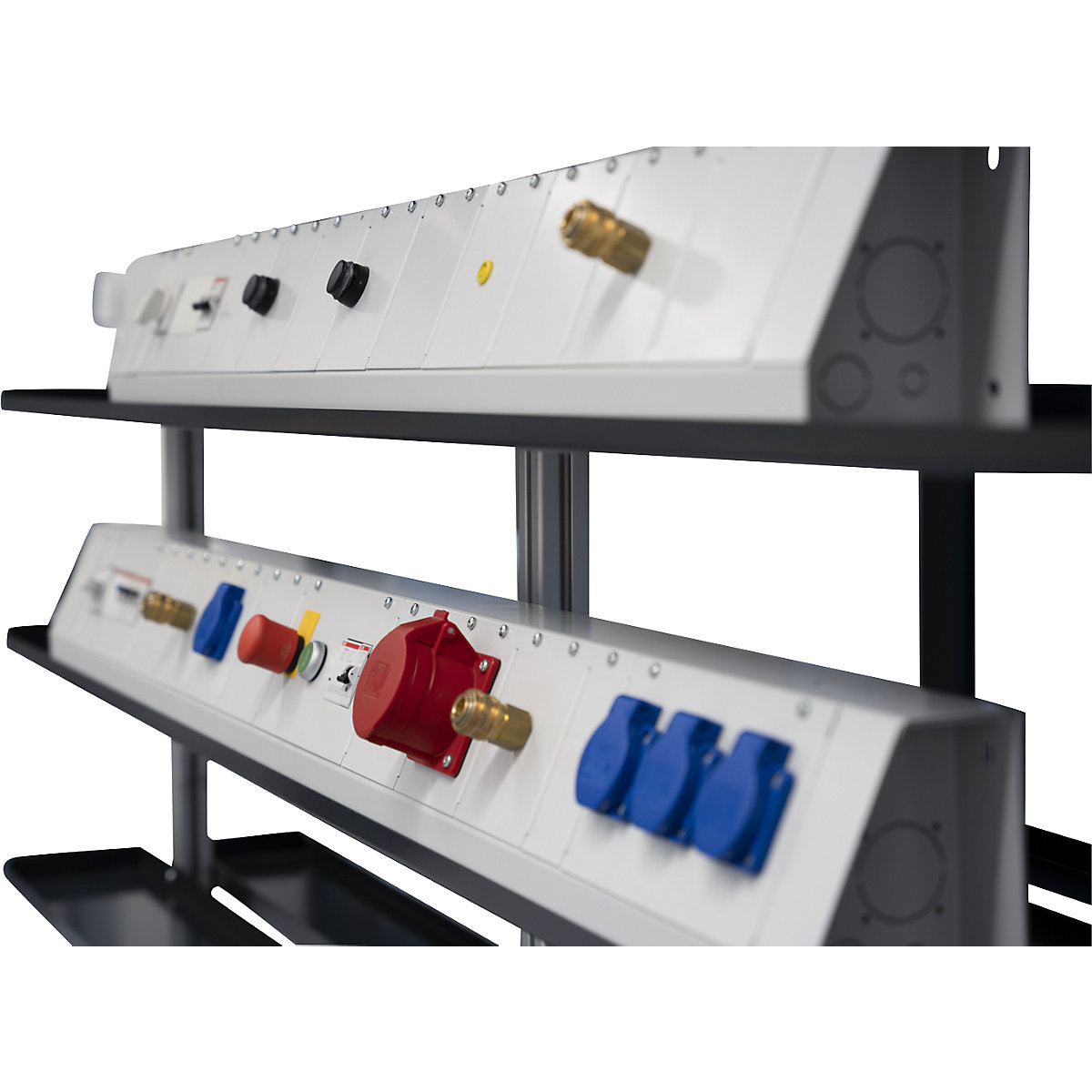

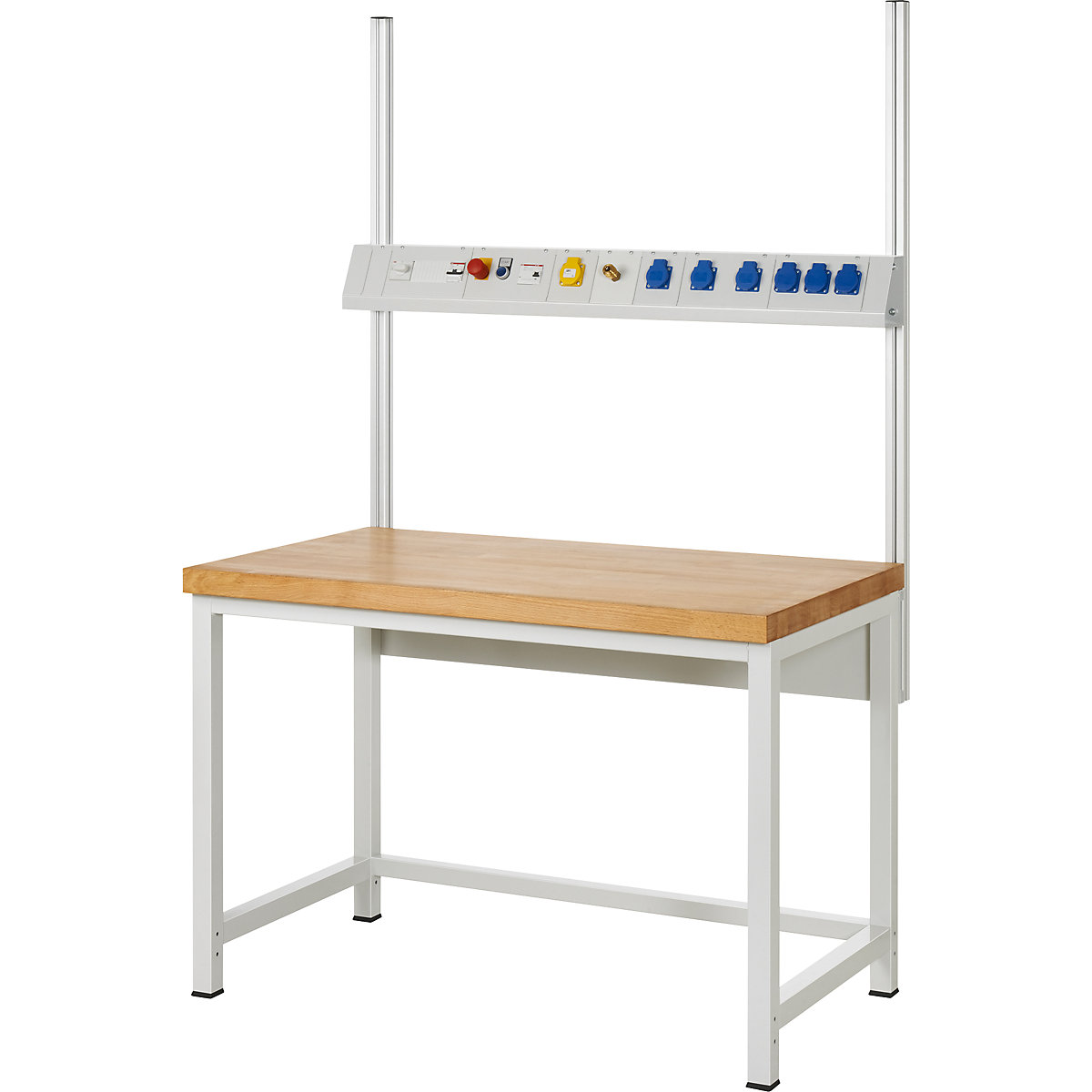

- Mounting on workbench top or on RAU system supports

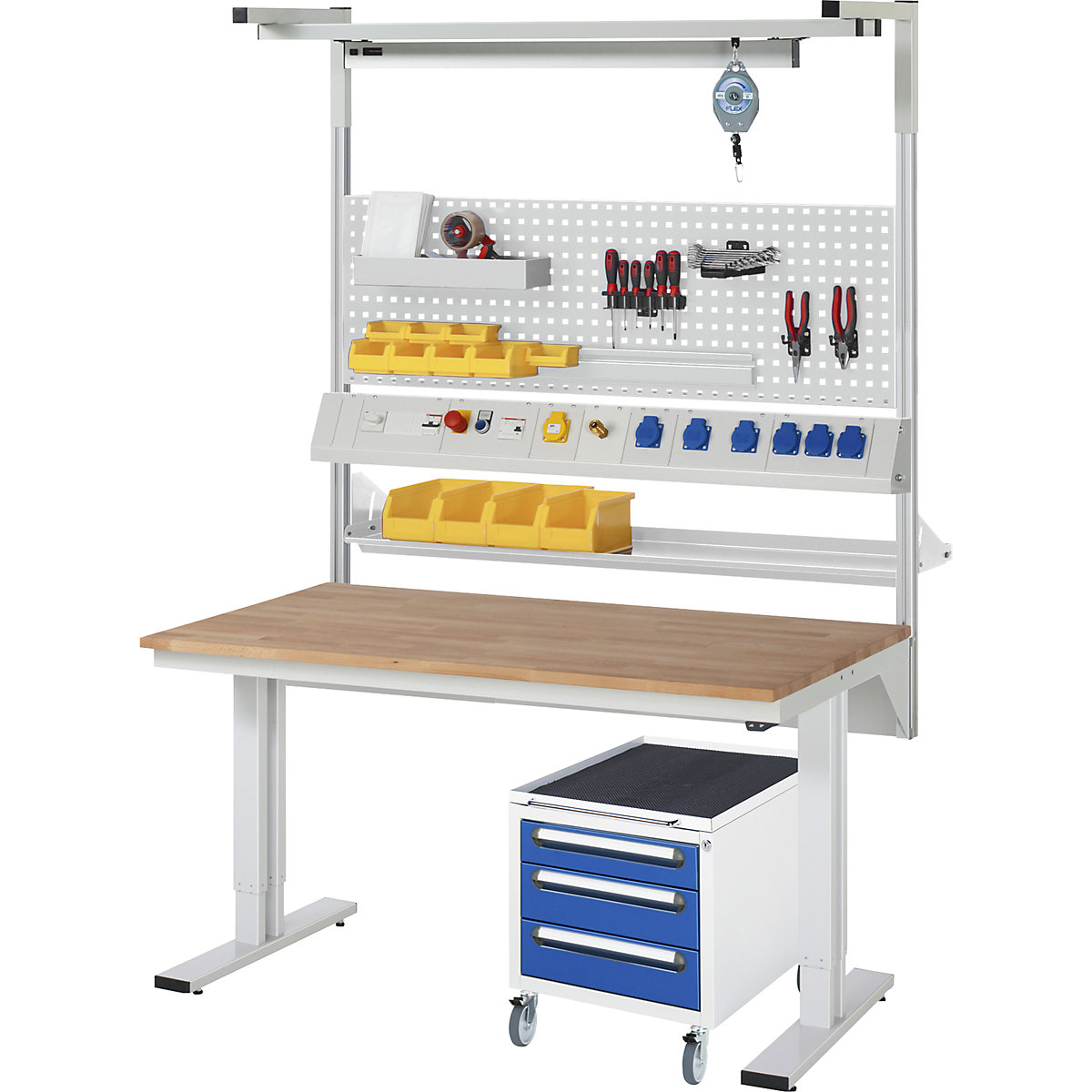

The power module is a practical solution for direct power supply at the workstation and was developed especially for use on the work surface. it enables the convenient and safe provision of important media exactly where they are needed, and thus supports efficient workflows in industry, workshop and assembly.
the focus is on the central supply of electricity (230 / 400 volts) and compressed air. depending on the model, USB mains connections and an RJ45 mains connection for data cables are also available. this reduces transit times, simplifies work processes and ensures significantly improved ergonomics at the workstation.
the stable and robust model made of steel ensures high load capacity and durability even under demanding conditions. at the same time, the media channel contributes to clear and clean cable routing, minimising the risk of damage and faults.
the media channel can be seamlessly integrated into existing workstation concepts and offers an economical solution for companies wishing to equip their workstations in a modern, safe and efficient way. the assembly material is enclosed for mounting on a worktop or on RAU system supports.
media channel including mains connection cable as well as preparation for supply of air or, if applicable, data cable (depending on the model). cable cross-section per core 1,5 mm², total load up to 3,6 kW.
version 1 (3 x 230 V, 1 x 400V, 1 x compressed air):
3-compartment sockets with hinged lid 230V/16A, compressed air quick coupling G1/4 NW7.
version 2 (6 x 230 V, 1 x compressed air, 2 x USB, 1 x RJ45):
compressed air quick coupling G1/4 NW7, 6 sockets with hinged lid 230V/16A, 2-compartment USB 3.0 high-speed socket 5V / 3,5A, 1-compartment network socket 1 x CAT-6
supply cable top left 3000 mm with plug as well as compressed-air mains connection and mains connection for data cable.
version 3 (6 x 230 V, 2 x compressed air):
6 sockets with hinged lid 230V/16A, 2 x compressed air quick coupling G1/4 NW7.
note: the arrangement of the mains connections from left to right is standard as shown. other arrangement requests must be communicated in writing with the order.
the focus is on the central supply of electricity (230 / 400 volts) and compressed air. depending on the model, USB mains connections and an RJ45 mains connection for data cables are also available. this reduces transit times, simplifies work processes and ensures significantly improved ergonomics at the workstation.
the stable and robust model made of steel ensures high load capacity and durability even under demanding conditions. at the same time, the media channel contributes to clear and clean cable routing, minimising the risk of damage and faults.
the media channel can be seamlessly integrated into existing workstation concepts and offers an economical solution for companies wishing to equip their workstations in a modern, safe and efficient way. the assembly material is enclosed for mounting on a worktop or on RAU system supports.
media channel including mains connection cable as well as preparation for supply of air or, if applicable, data cable (depending on the model). cable cross-section per core 1,5 mm², total load up to 3,6 kW.
version 1 (3 x 230 V, 1 x 400V, 1 x compressed air):
3-compartment sockets with hinged lid 230V/16A, compressed air quick coupling G1/4 NW7.
version 2 (6 x 230 V, 1 x compressed air, 2 x USB, 1 x RJ45):
compressed air quick coupling G1/4 NW7, 6 sockets with hinged lid 230V/16A, 2-compartment USB 3.0 high-speed socket 5V / 3,5A, 1-compartment network socket 1 x CAT-6
supply cable top left 3000 mm with plug as well as compressed-air mains connection and mains connection for data cable.
version 3 (6 x 230 V, 2 x compressed air):
6 sockets with hinged lid 230V/16A, 2 x compressed air quick coupling G1/4 NW7.
note: the arrangement of the mains connections from left to right is standard as shown. other arrangement requests must be communicated in writing with the order.
On request, we also offer you a media duct configured individually for your needs.
CE marking in accordance with the directives:
2014/35/EU – electrical equipment for use within certain voltage limits.
2014/30/EU – electromagnetic compatibility of equipment.
The delivery is completely wired and earthed, with a complete configuration in accordance with the standards
DIN VDE 0701-0702 (general requirements for electrical safety),
DIN EN 60529 / VDE 0470-1 – dust protection Gehäuse IP40.
DIN EN 61140 (VDE 0140-1) – appliance class I.
DIN EN 61000-6-1 (VDE 0839-6-1) – electromagnetic compatibility.
Note: please note that the media duct must not be opened.
2014/35/EU – electrical equipment for use within certain voltage limits.
2014/30/EU – electromagnetic compatibility of equipment.
The delivery is completely wired and earthed, with a complete configuration in accordance with the standards
DIN VDE 0701-0702 (general requirements for electrical safety),
DIN EN 60529 / VDE 0470-1 – dust protection Gehäuse IP40.
DIN EN 61140 (VDE 0140-1) – appliance class I.
DIN EN 61000-6-1 (VDE 0839-6-1) – electromagnetic compatibility.
Note: please note that the media duct must not be opened.
Technical data
| Number of sockets | 6 pcs. |
|---|---|
| Cable length | 3000 mm |
| Height | 150 mm |
| Depth | 110 mm |
| Colour | light grey RAL 7035 |
| Material | sheet steel |
| Product type | power supply for workstations |
| Supplied | assembled |
| Fittings | 6 x socket with hinged lid 230 V / 16 A, 2 x compressed air quick-release coupling G1/4 NW7.2, 1 x supply line top left 3000 mm with 230 V plug and compressed air connection |
| Width | 1000 mm |
| Weight | 8 kg |
| Instructions |
