Ref.: 851644 10

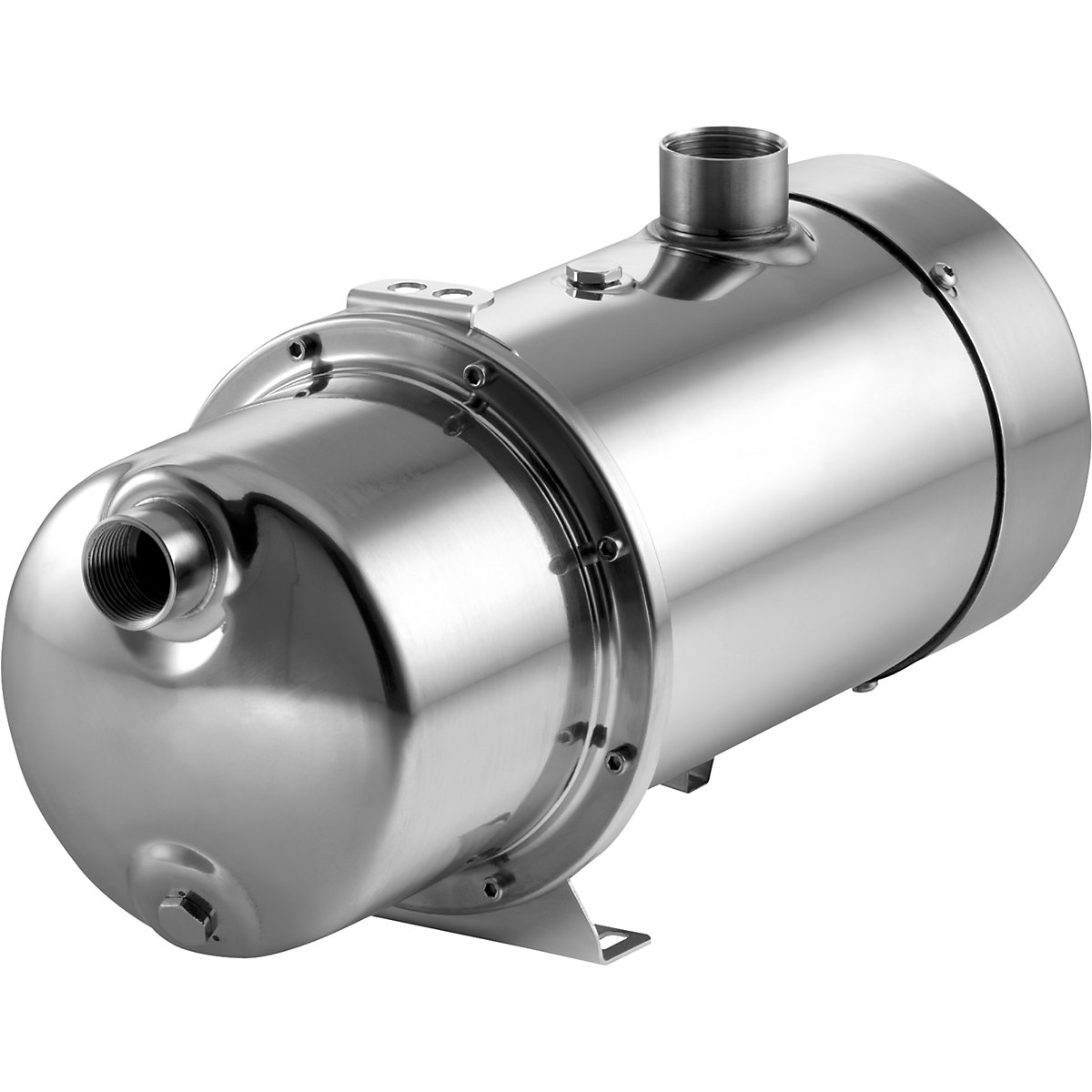

Fully automatic jet pump system X-AJE self-priming, stainless steel
max. 40 m, 0.6 kW
Power [kW]
Ref.: 851644 10
Fully automatic jet pump system X-AJE self-priming, stainless steel
max. 40 m, 0.6 kW

max. 40 m, 0.6 kW
Power [kW]
on request
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Efficient order processes for business customers
We will be happy to help you
export@kaiserkraft.com
Do you have any questions about this product?on request
Price / item (Ex. VAT)
Product description
- Can be used dry or submerged
- Fully automatic operation
- With anti-blockage system and dry run protection
- Integrated microprocessor control, flow sensor, pressure sensor
- Maximum housing pressure 10 bar
- Max. pump rate 50 l/min.
Automatic, self-priming pump, whether installed dry or as a submersible pump. The water pumps always operate reliably. In addition to dry-running protection and an anti-blocking system, the high-quality workmanship is responsible for this. For example, pump motor housings and impellers are made of stainless steel, and the diffusers are made of technopolymer. The water-cooled motors feature thermal motor protection and are therefore suitable for continuous operation. The maximum casing pressure is 10 bar, the maximum media temperature is +2 to +37 °C. The maximum ambient temperature is +45 °C. Pumped medium: clean water without abrasive or fibrous components.
The pumps can be used
- as dry-installed pumps/pump systems
- as submerged pumps/pump systems
- in damp rooms, shafts, and cisterns
Applications:
- Water supply
- Irrigation systems
- Rainwater harvesting systems
- Emptying of tanks and basins
- Supplying water tanks from wells
- Fountains and water features
The pumps can be used
- as dry-installed pumps/pump systems
- as submerged pumps/pump systems
- in damp rooms, shafts, and cisterns
Applications:
- Water supply
- Irrigation systems
- Rainwater harvesting systems
- Emptying of tanks and basins
- Supplying water tanks from wells
- Fountains and water features
Technical data
| Pump rate | max. 50 l/min |
|---|---|
| Max. speed | 2900 rpm |
| Voltage | 230 V |
| Immersion depth | 5000 mm |
| Height | 226 mm |
| Width | 200 mm |
| Length | 447 mm |
| For liquids | water |
| Material of pump | stainless steel |
| Material | stainless steel |
| Cable length | 10 m |
| Protection type | IP68 |
| Colour | silver |
| Product type | immersion pumps |
| Supplied | assembled |
| Power | 0.6 kW |
| Pumping height | 40 m wc |
| Weight | 14.5 kg |
| Instructions |
