Ref.: 851654 10

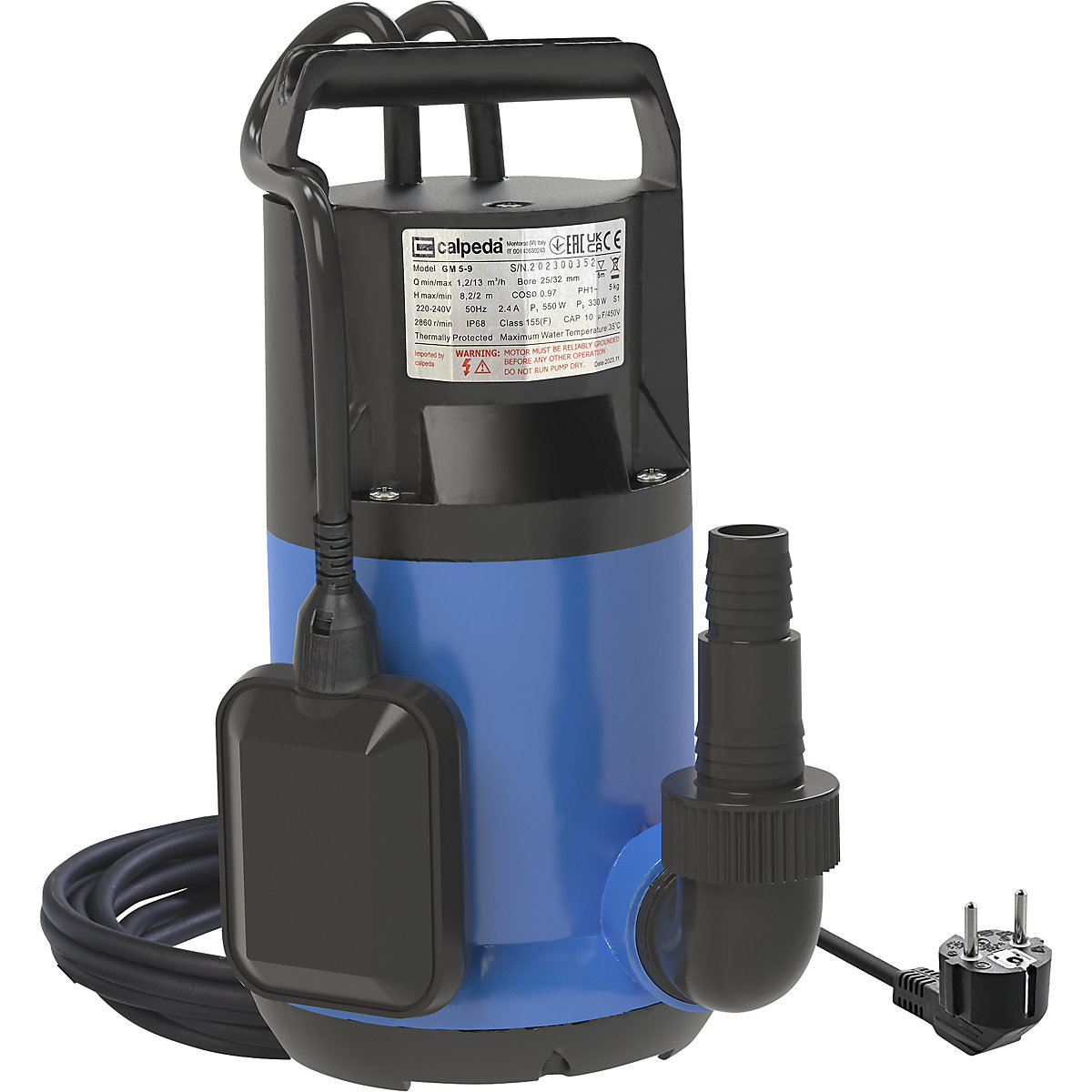

Submersible drainage pump GM 5-9 with float switch, made of plastic

Submersible drainage pump GM 5-9

max. 8.9 m, 0.33 kW

on request
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Product description
  • For emptying flooded rooms or tanks
  • For water extraction from ponds, streams and rainwater collection tanks or irrigation
  • For clean water with solids up to a diameter of 5 mm
  • With float switch for automatic start and stop
  • Maximum liquid temperature: 35 °C (with immersion motor)
  • Immersion depth: max. 5 m
Electric submersible pump for draining wastewater, made from specially developed composite polymers. Double shaft seal with an intermediate oil chamber. Small dimensions and high performance for use in a wide variety of applications, for flow rates up to 217 litres per minute.
Technical data
Power0.33 kW
Pump ratemax. 217 l/min
Pumping height8.9 m wc
Max. speed2800 rpm
Voltage230 V
Immersion depth5000 mm
Height316 mm
Width157 mm
Length222 mm
For liquidswater
Material of pumpPVC
Materialplastic
Cable length10 m
Protection typeIP68
Colourblue black
Product typeimmersion pumps
Suppliedassembled
Weight5 kg
