Ref.: 851664 10

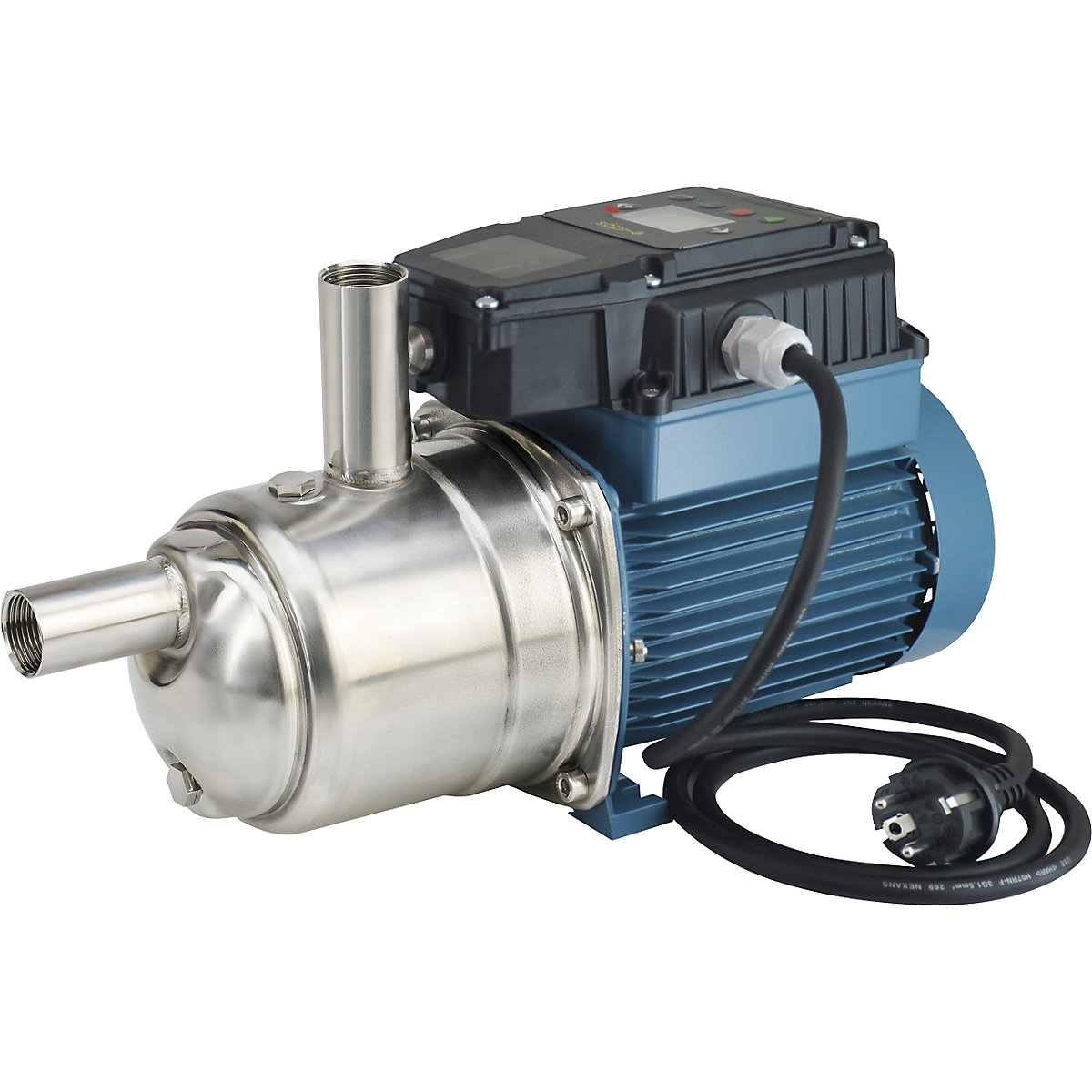

META speed-regulated pump with integrated pressure control

META speed-regulated pump

max. 48 m, 1.35 kW

on request
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Product description
  • For water supply, for the house, for gardens and for irrigation
  • Integrated frequency converter and expansion tank
  • Adjustable operating and switch-on pressure, motor monitoring
  • Monitoring of voltage, motor current and the maximum starting current
  • Direct control and full control via the integrated LCD display
  • Maximum permissible pump end pressure: 8 bar
  • Ambient temperature up to 40 °C
  • Medium temperature: from 0 °C to +35 °C
Digital water supply system with MÉTA pump, self-priming water supply system with integrated frequency converter, in a compact and robust design, with a wide performance range and a motor in efficiency class IE4. MÉTA is an easy-to-install plug and play solution, equipped with a frequency converter, pressure sensor, LCD display, non-return valve, and an integrated expansion tank. The integrated frequency converter allows automatic switching on and off when opening and closing draw-off points, as well as operation with constant pressure.
Technical data
Power1.35 kW
Pump ratemax. 140 l/min
Pumping height48 m wc
Max. speed4500 rpm
Voltage230 V
Height235 mm
Width161 mm
Length440 mm
For liquidswater
Material of pumpstainless steel
Materialstainless steel
Cable length1500 mm
Protection typeIPX4
Colourblue silver black
Product typewater supply systems
Suppliedassembled
Weight13.5 kg
Instructions
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.
‌
‌
‌
