Ref.: 851661 10

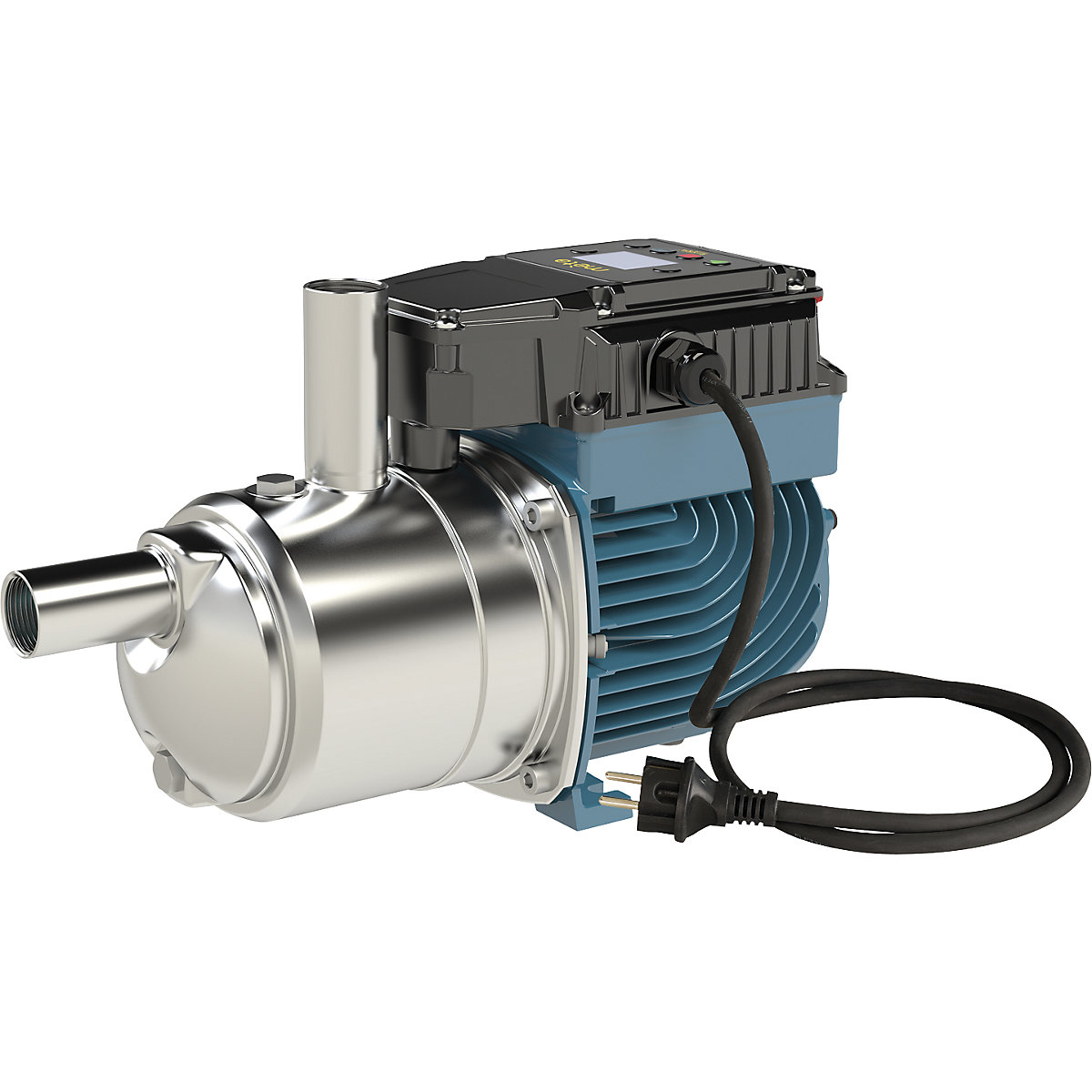

Speed-regulated pump META SMALL with integrated pressure control

Speed-regulated pump META SMALL

max. 50 m, 0.65 kW

on request
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Product description
  • For water supply, for the house, for gardens and for irrigation
  • Integrated frequency converter and expansion tank
  • Adjustable operating and switch-on pressure, motor monitoring
  • Monitoring of voltage, motor current and the maximum starting current
  • Direct control and full control via the integrated LCD display
  • Maximum permissible pump end pressure: 8 bar
  • Ambient temperature up to 40 °C
  • Medium temperature: from 0 °C to +35 °C
Digital water supply system with MÉTA SMALL pump, a self-priming water supply system with integrated frequency inverter, in a compact and robust design, with a large power range and a motor according to efficiency class IE4. MÉTA SMALL is an easy-to-install Plug and Play solution, equipped with a frequency inverter, pressure sensor, LCD display, non-return valve, and an integrated expansion tank. The integrated frequency inverter allows automatic switching on and off when opening and closing tapping points, as well as operation with constant pressure.
Technical data
Power0.65 kW
Pump ratemax. 83 l/min
Pumping height50 m wc
Max. speed4500 rpm
Voltage230 V
Height235 mm
Width161 mm
Length387 mm
For liquidswater
Material of pumpstainless steel
Materialstainless steel
Cable length1500 mm
Protection typeIPX4
Colourblue silver black
Product typewater supply systems
Suppliedassembled
Weight10.5 kg
Instructions
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.
‌
‌
‌
