Ref.: 569831 10

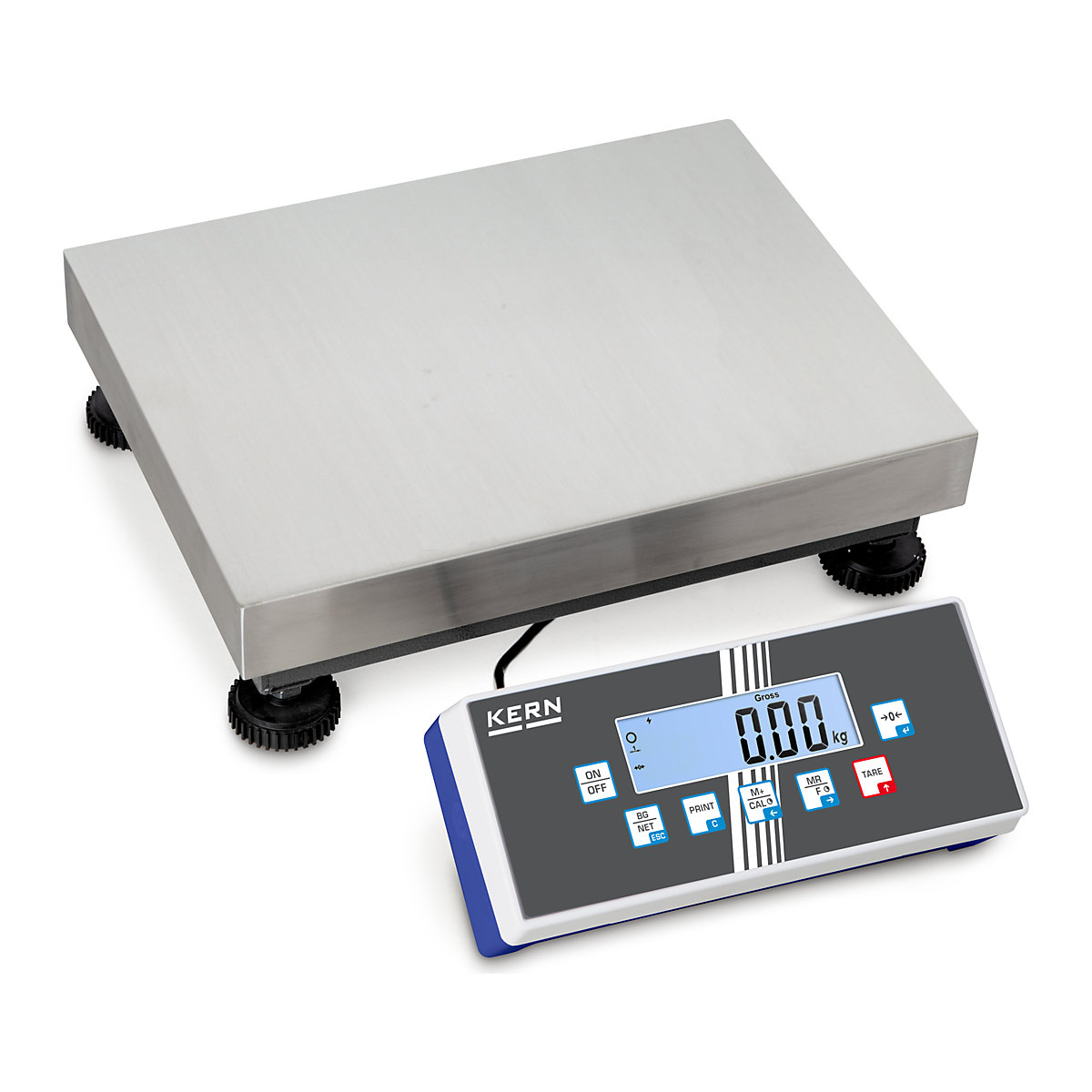

Platform scales – KERN dual range scales, can be calibrated
weighing range up to 15 kg, read-out accuracy 2 / 5 g, weighing plate 300 x 240 mm
Max. weighing range [kg]
Scale division [g]
Weighing platform dimensions [mm]
This label from kaiserkraft evaluates products based on a wide range of sustainability criteria
Ref.: 569831 10
Platform scales – KERN dual range scales, can be calibrated
weighing range up to 15 kg, read-out accuracy 2 / 5 g, weighing plate 300 x 240 mm
weighing range up to 15 kg, read-out accuracy 2 / 5 g, weighing plate 300 x 240 mm
509,00 €
Price / item (Ex. VAT)
Availability: within 3 days
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Fast delivery
We will be happy to help you
export@kaiserkraft.com
Product description
- All round platform scales with a wide range of communications options and calibration class
- Foot screws for exact levelling of the scales as standard, thereby ensuring high precision weighing results

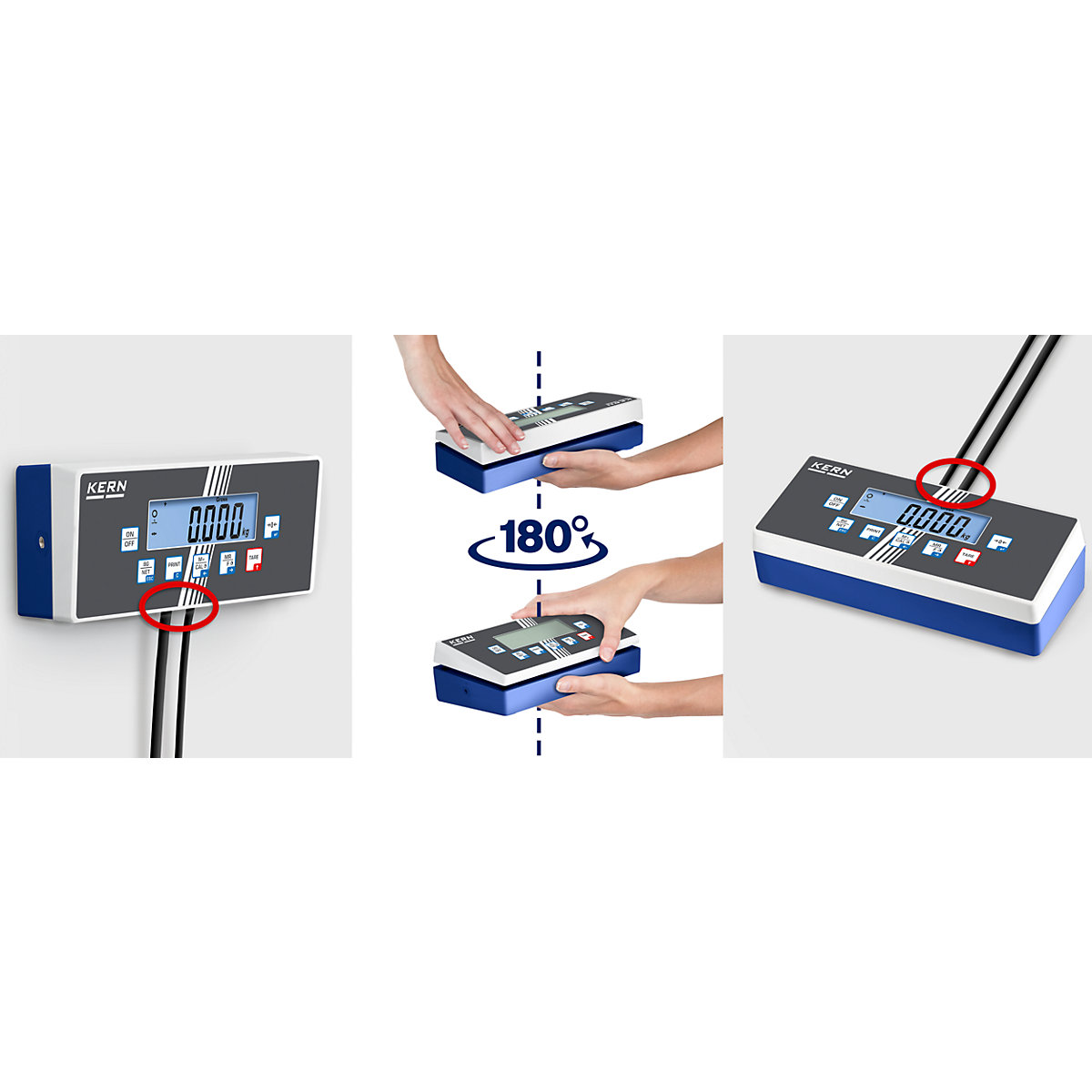

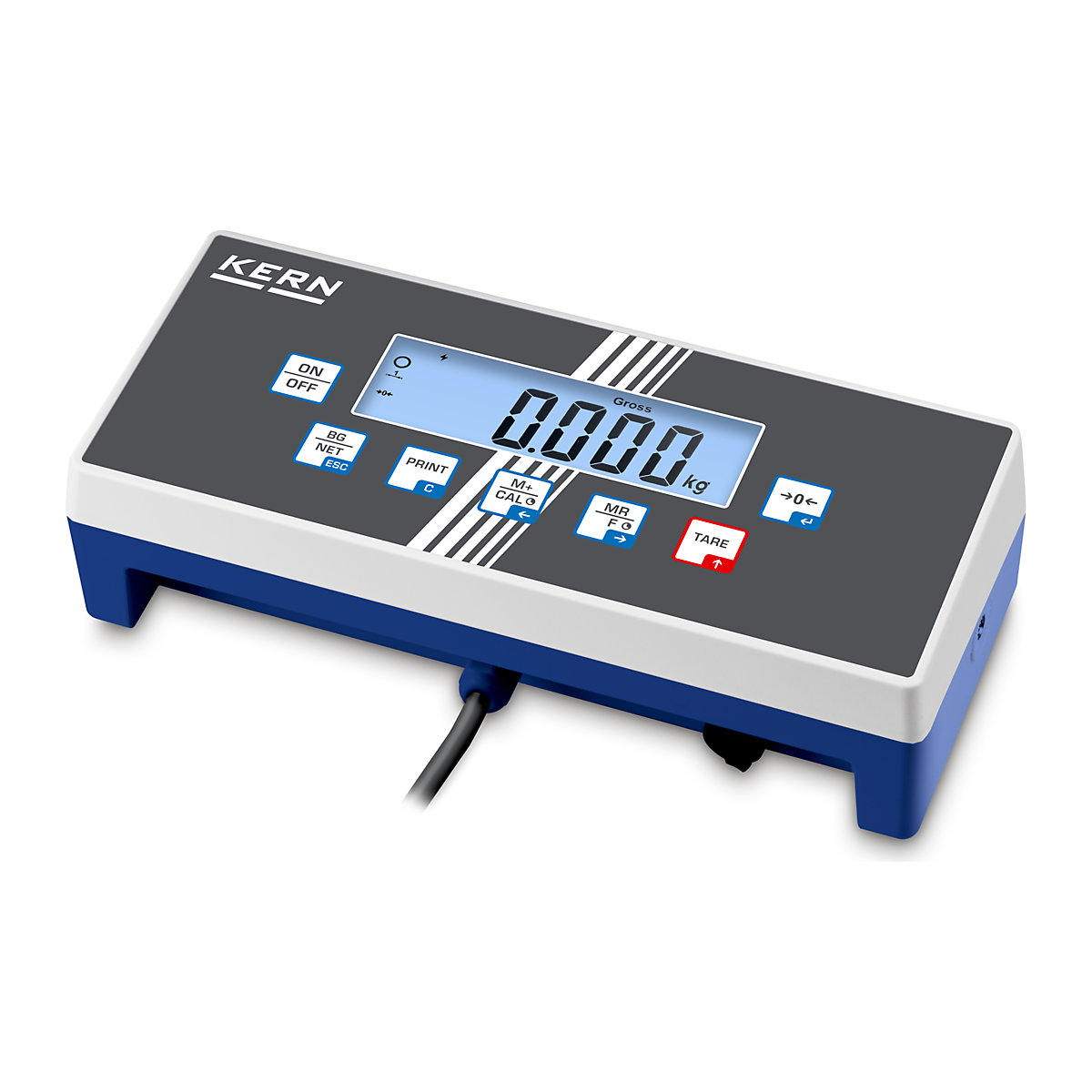

Platform: stainless steel weighing plate, painted steel base, silicon coated aluminium weighing cell, dust and splash water protection IP65. Check weighing: a visual and acoustic signal helps with portioning, metering and sorting. Table foot incl. wall mounting bracket for the evaluation unit as standard. Practical flip-flop evaluation unit allows flexible positioning e.g. free standing or bolted to the wall (optional). Turning the upper housing shell allows the angle of the display and the cable outlet to be determined. Supplied complete with protective cover.
Calibration program (CAL): for adjusting the precision. An external calibration weight is required. Data interface RS-232: for connecting the scales to a printer, PC or network. GLP/ISO protocol: with weight value, date and time. Number of items: optional reference item counting. Display can be switched from items to weight. The weight values of similar goods for weighing can be added up and printed out as a sum. Percentage calculated: displays the difference from the reference weight (100%) in % instead of grams. Weighing with tolerance range (check weighing): upper and lower limit can be programmed, e.g. when sorting and portioning. Vibration-free weighing (animal weighing program): vibrations are filtered out to produce a stable weight value. Protection type IP65 in accordance with DIN EN 60529: suitable for brief contact with liquids. A moist cloth can be used for cleaning. Dustproof. Universal mains adapter: with a universal input and optional input plug adapters for EU, GB, USA. Strain gauges: ribbon shaped electric resistor, which is bonded to an elastic spring element. Measured value determined by change to the resistance. Battery operation: rechargeable set. DAkkS calibration possible. Data interface USB: for connecting the scales to printers, PCs or other peripheral devices. Data interface Wi-Fi: for connecting the scales to printers, PCs or other peripheral devices. Network interface: for connecting the scales to an Ethernet network. Possible for KERN using an RS-232/LAN converter for universal connection. Can be calibrated.
Calibration program (CAL): for adjusting the precision. An external calibration weight is required. Data interface RS-232: for connecting the scales to a printer, PC or network. GLP/ISO protocol: with weight value, date and time. Number of items: optional reference item counting. Display can be switched from items to weight. The weight values of similar goods for weighing can be added up and printed out as a sum. Percentage calculated: displays the difference from the reference weight (100%) in % instead of grams. Weighing with tolerance range (check weighing): upper and lower limit can be programmed, e.g. when sorting and portioning. Vibration-free weighing (animal weighing program): vibrations are filtered out to produce a stable weight value. Protection type IP65 in accordance with DIN EN 60529: suitable for brief contact with liquids. A moist cloth can be used for cleaning. Dustproof. Universal mains adapter: with a universal input and optional input plug adapters for EU, GB, USA. Strain gauges: ribbon shaped electric resistor, which is bonded to an elastic spring element. Measured value determined by change to the resistance. Battery operation: rechargeable set. DAkkS calibration possible. Data interface USB: for connecting the scales to printers, PCs or other peripheral devices. Data interface Wi-Fi: for connecting the scales to printers, PCs or other peripheral devices. Network interface: for connecting the scales to an Ethernet network. Possible for KERN using an RS-232/LAN converter for universal connection. Can be calibrated.
Please include calibration with your order.
Calibration cannot be done at a later stage.
Calibration cannot be done at a later stage.
Technical data
Product type | platform scales |
---|---|
Scale model | dual range scale can be calibrated IP65 |
Min. weighing range | 0 g |
Material of weighing platform | plastic |
Material | stainless steel |
Figures height | 25 mm |
Function | item counting total checkweighing |
Interfaces | RS-232 |
Power supply | multiple power supply unit |
Supplied | assembled |
Max. weighing range | 6 / 15 kg |
Scale division | 2 | 5 g |
Weighing platform dimensions | 300 x 240 mm |
Calibration value | 2 / 5 g |
Height | 110 mm |
Width | 300 mm |
Depth | 240 mm |
Lowest item weight for item counting | 5 g |
Weight | 5.41 kg |
