Ref.: 583109 10

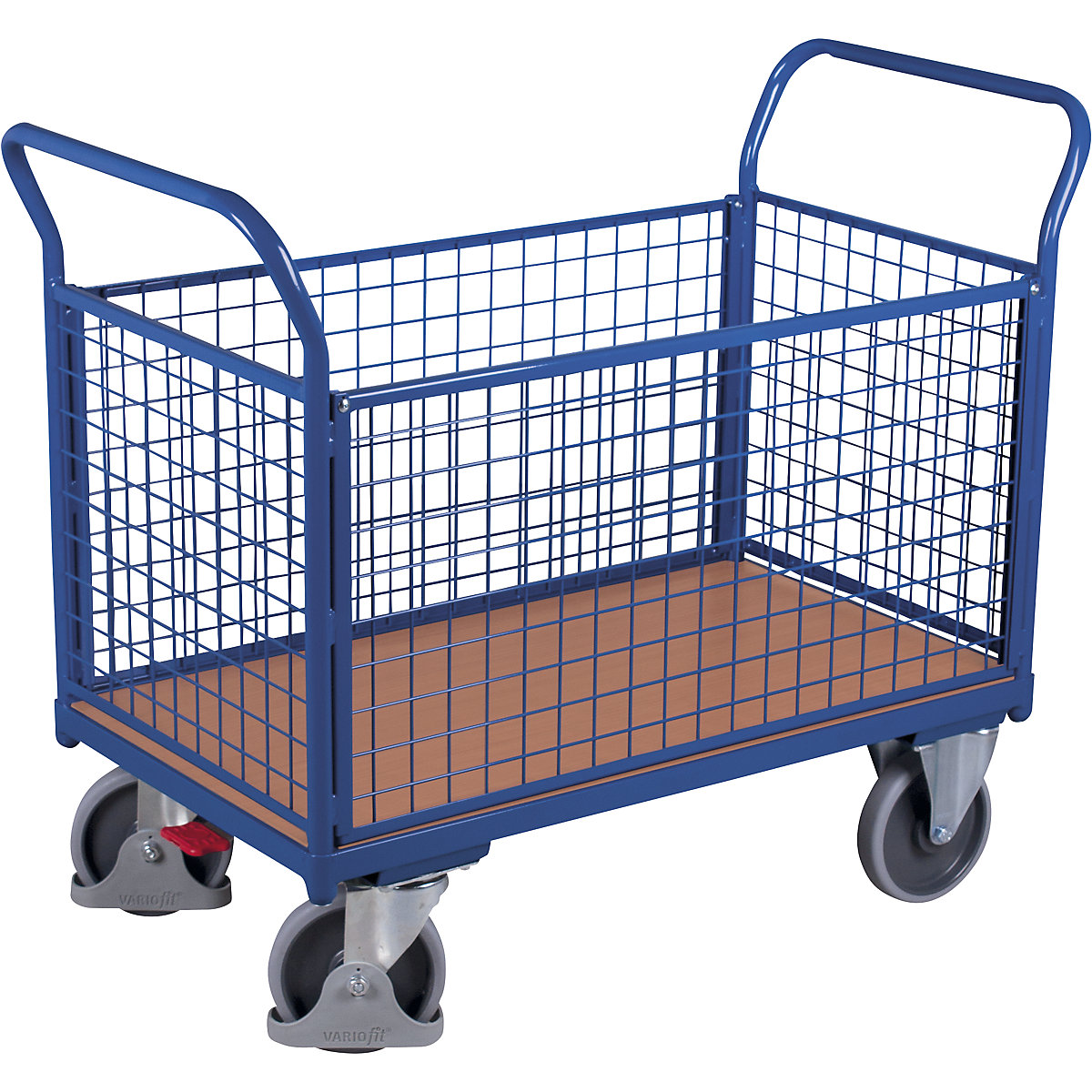

Platform truck, 4 side panels LxWxH 1390 x 800 x 1015 mm

Platform truck, 4 side panels
Platform truck, 4 side panels, LxWxH 1390 x 800 x 1015 mm, max. load 500 kg-0
Platform truck, 4 side panels (Product illustration 2)-1
Platform truck, 4 side panels (Product illustration 3)-2

max. load 500 kg

Ref.: 583109 10
Product description
External dimensions WxDxH 1390 x 800 x 1015 mm. Platform WxD 1200 x 750 mm. Platform height 295 mm. End and side panel height 515 mm (from top edge of the platform).
End and side panels made of wire mesh, 50 x 50 mm. Platform made of MDF panel, surface in beech finish. Powder coated in gentian blue RAL 5010.
Tyres made of thermoplastic rubber on plastic rims with high-precision deep groove ball bearings, grey, non-marking, Ø 200 mm, 2 swivel castors with central EasySTOP brake and 2 fixed castors, swivel castors with foot protection.
Max. load 500 kg.
  • Central EasySTOP brake
  • Foot protection
  • Side panels secure the goods being transported
Technical data
Max. load500 kg
Length1390 mm
Width800 mm
Height1015 mm
Internal length1200 mm
Internal width750 mm
Internal height515 mm
Panel materialsteel
Finishpowder coated
Colourbeech finish
gentian blue RAL 5010
Wheel typethermoplastic rubber
Wheel fittings2 swivel castors, 2 fixed castors
Wheel diameter200 mm
Wheel bearingprecision deep groove ball bearing
Product typeplatform trucks
Suppliedpartially assembled
Weight53 kg
‌
‌
‌
‌
