Ref.: 583104 10

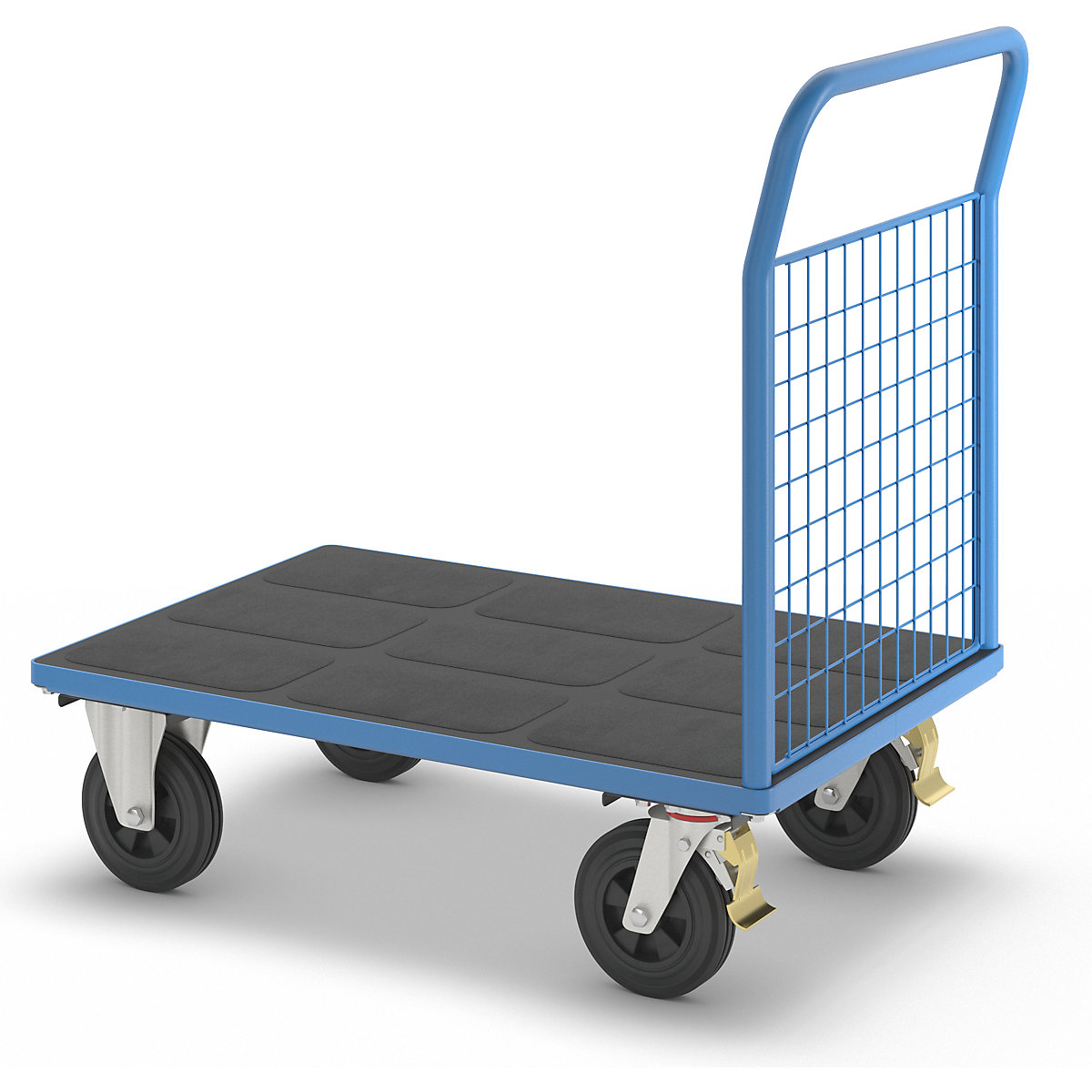

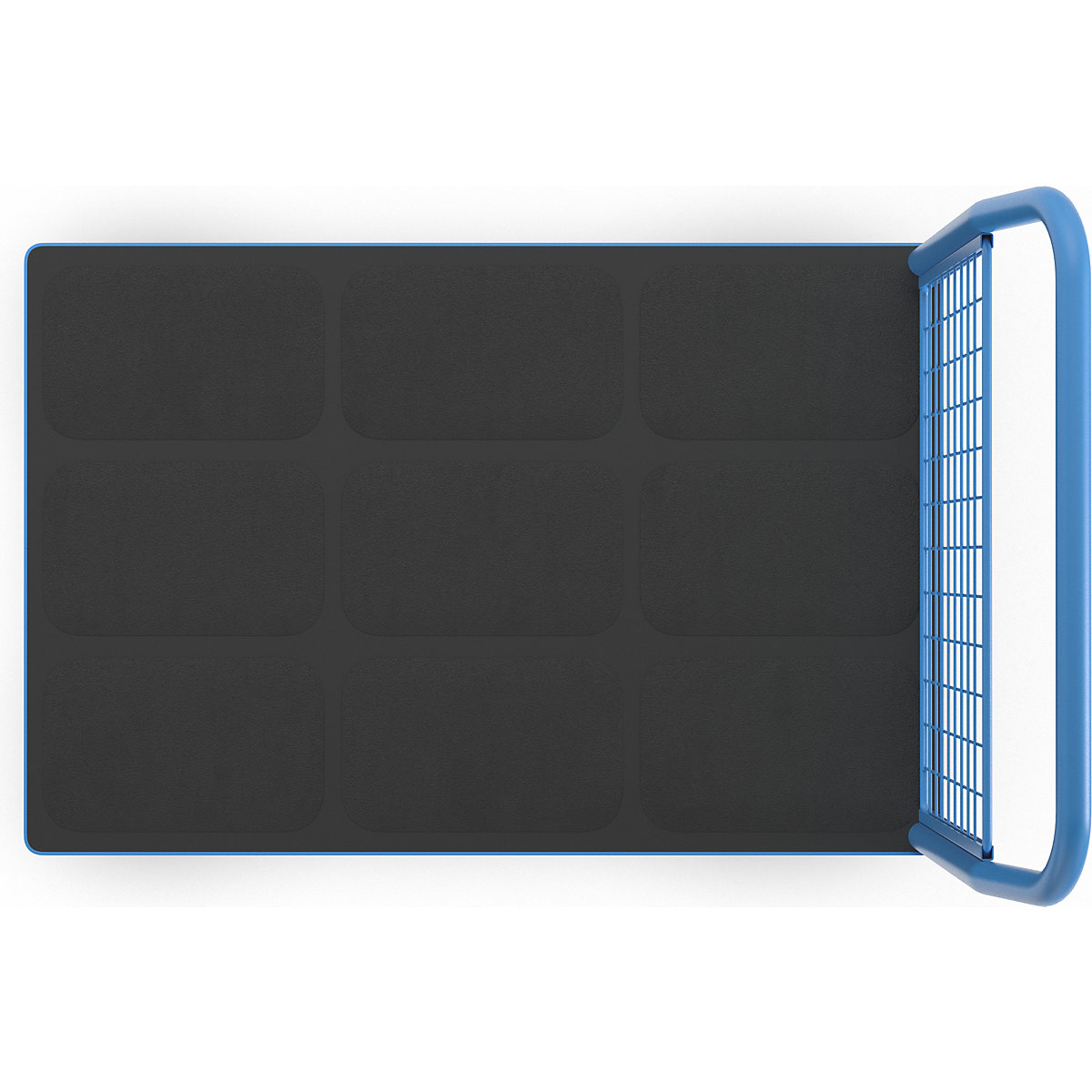

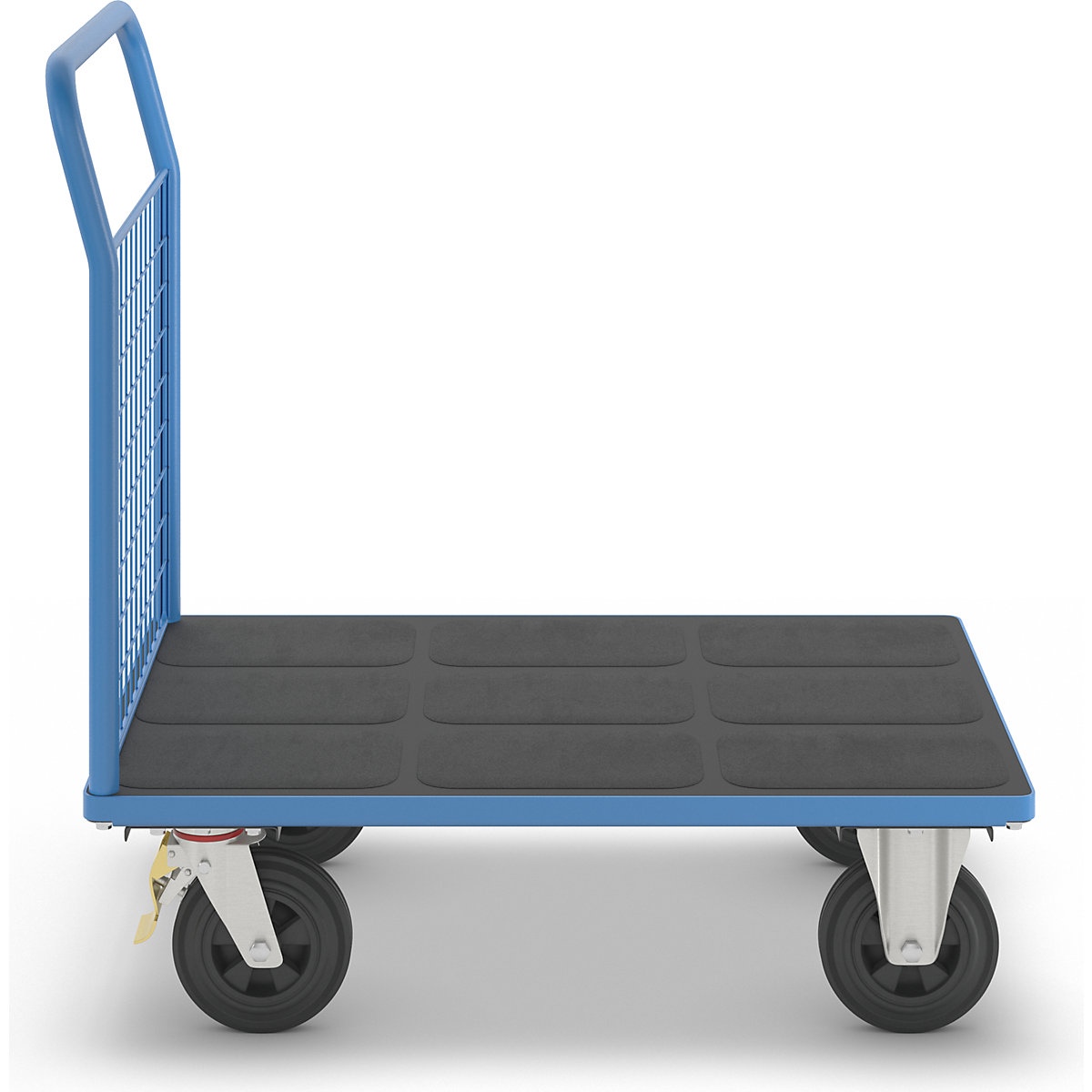

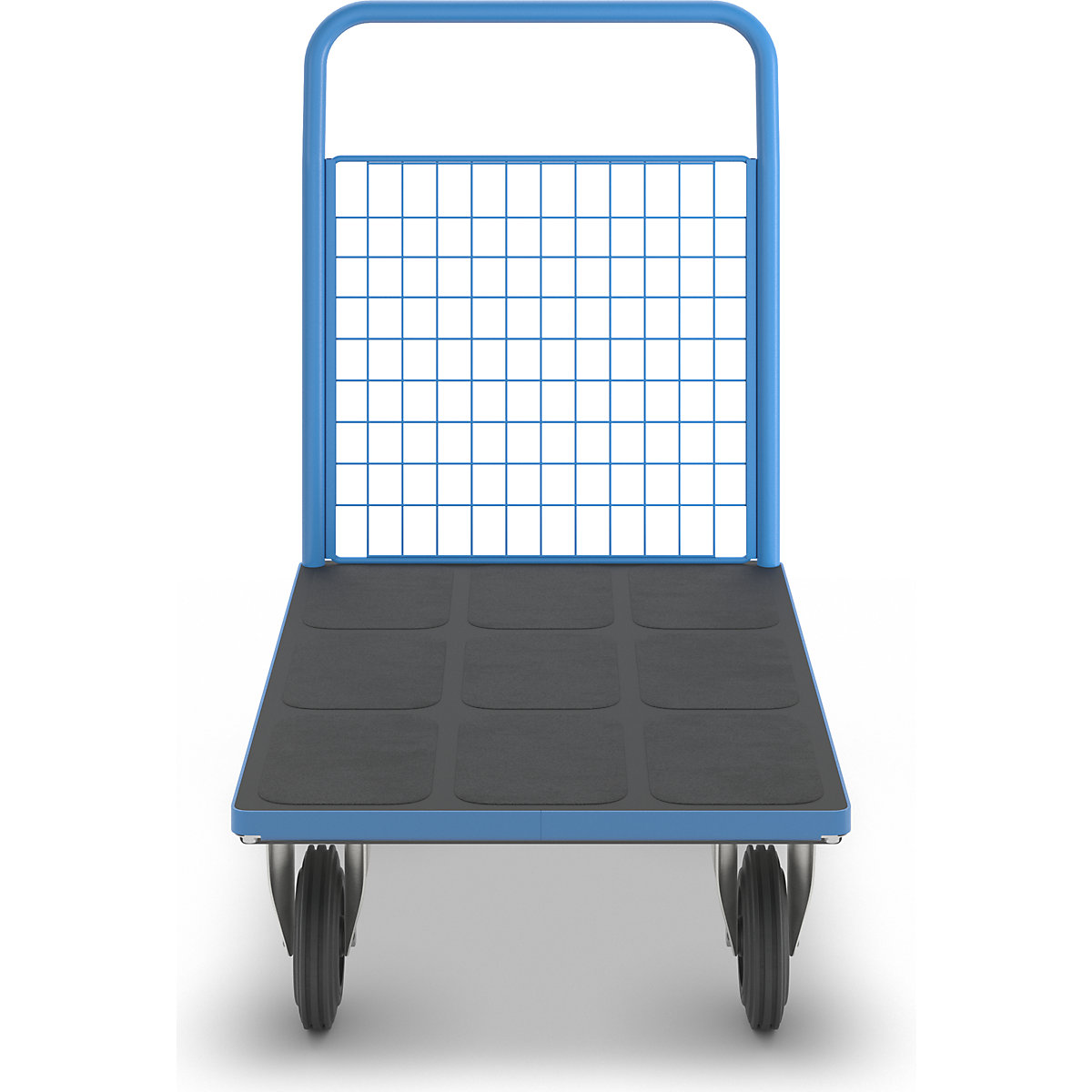

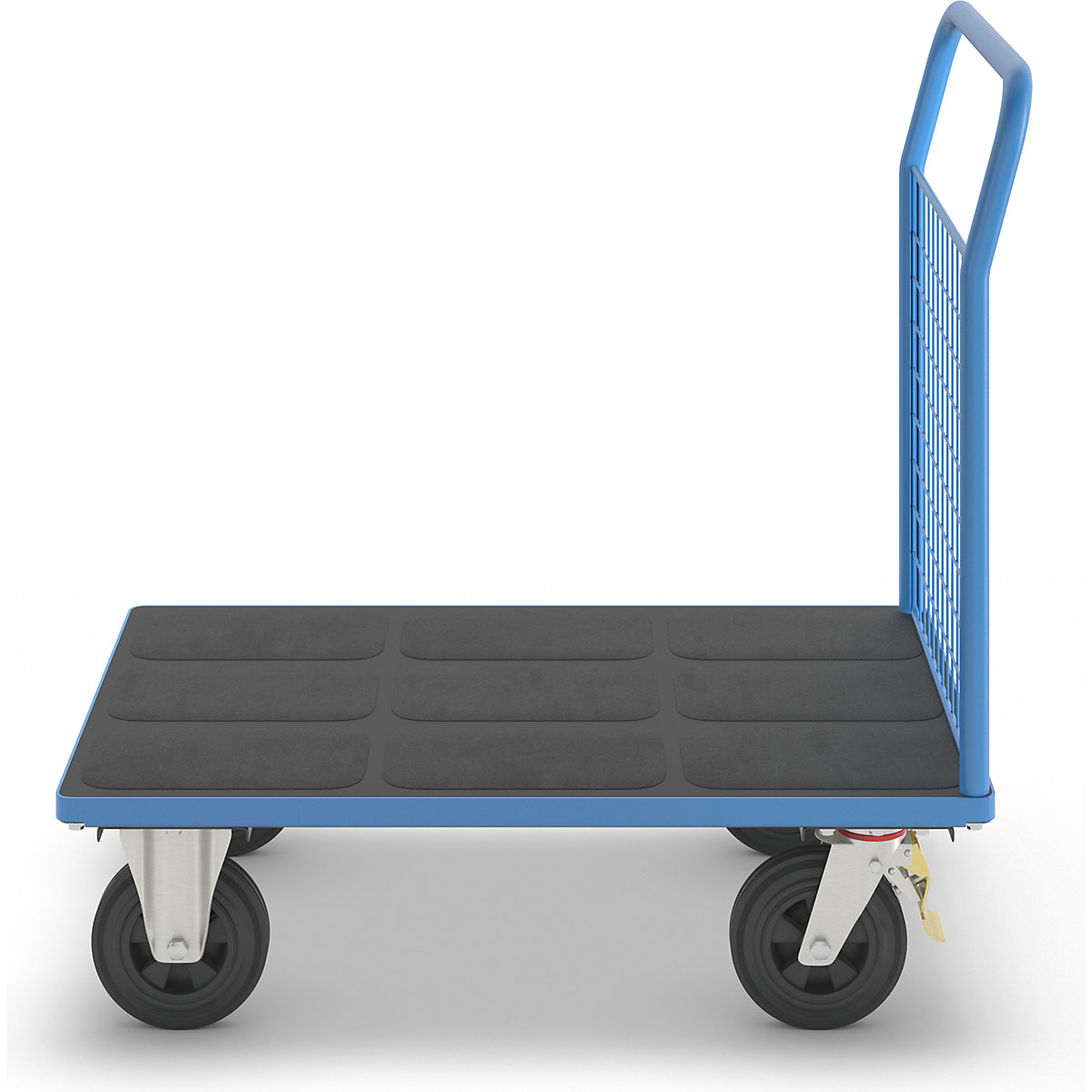

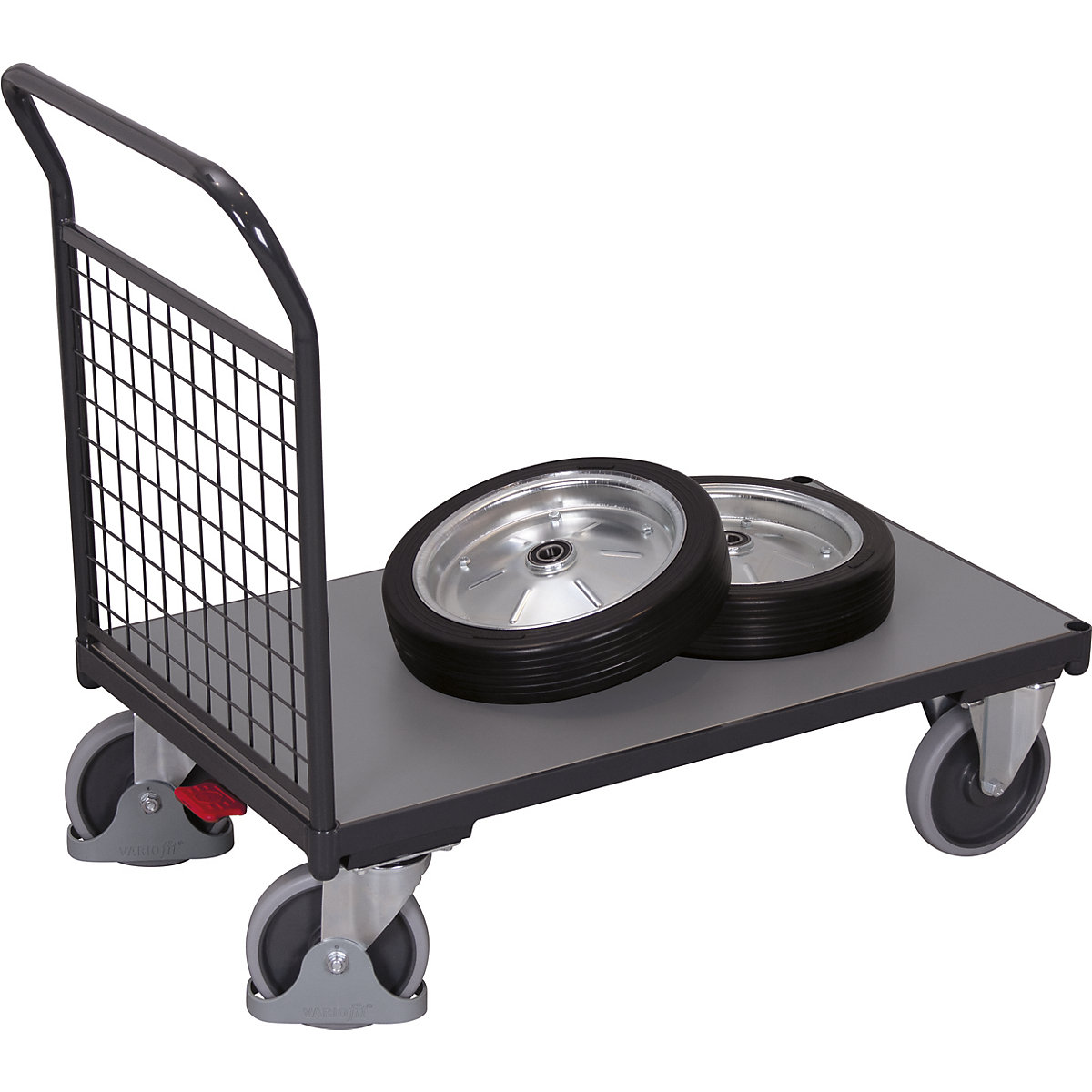

Platform truck with end panel LxWxH 975 x 500 x 975 mm
max. load 400 kg
Ref.: 583104 10
Platform truck with end panel LxWxH 975 x 500 x 975 mm
max. load 400 kg
max. load 400 kg
Ref.: 583104 10
Product not available
Currently not availableProduct description
- Central EasySTOP brake
- Foot protection
- Practical and versatile
External dimensions WxDxH 975 x 500 x 975 mm. Platform WxD 880 x 500 mm. Platform height 255 mm. End panel height 515 mm (from top edge of the platform).
End panel made of wire mesh 50 x 50 mm. Platform made of MDF panel, surface in beech finish. Powder coated in gentian blue RAL 5010.

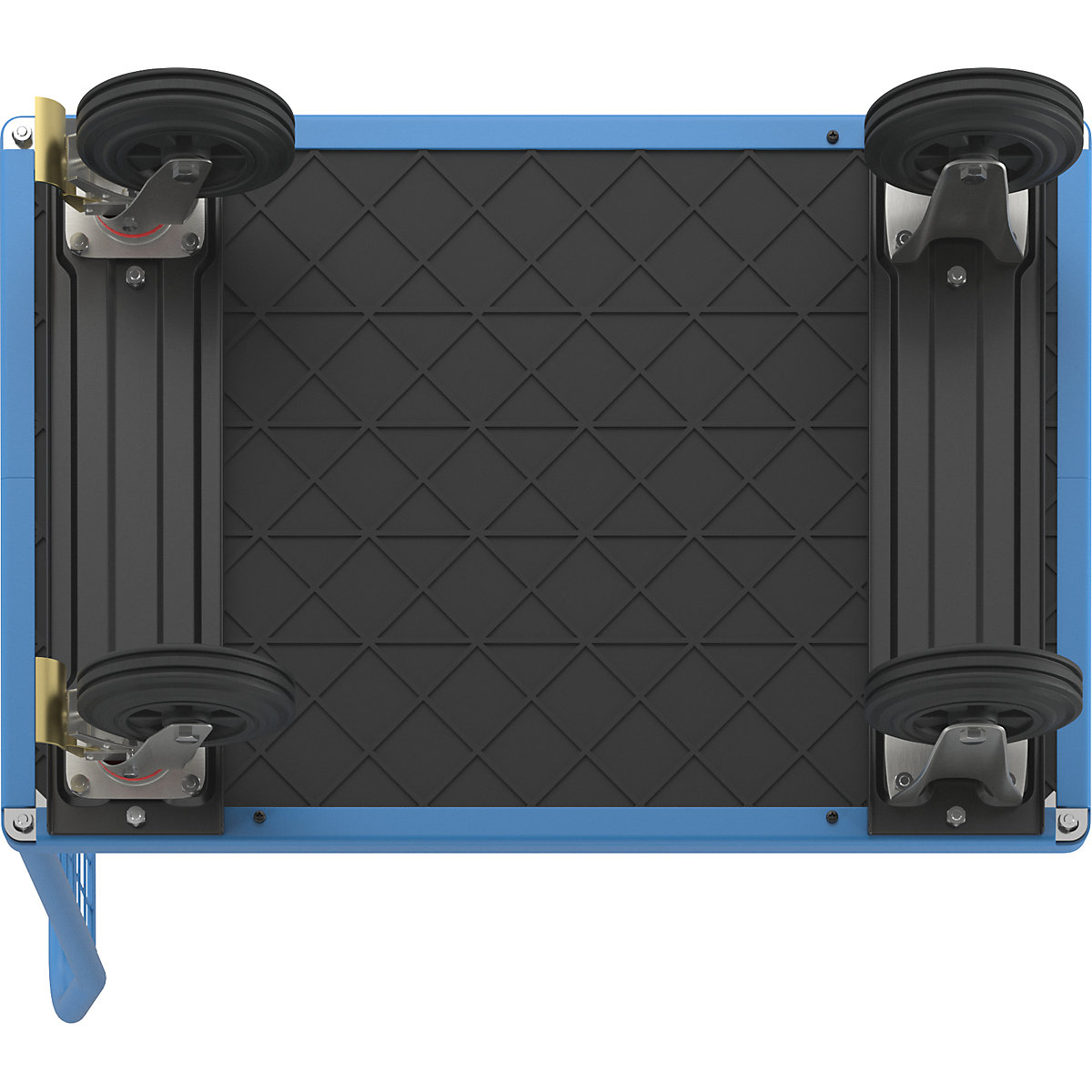

Tyres made of thermoplastic rubber on plastic rims with high-precision deep groove ball bearings, grey, non-marking, Ø 160 mm, 2 swivel castors with central EasySTOP brake and 2 fixed castors, swivel castors with foot protection.
Max. load 400 kg.
End panel made of wire mesh 50 x 50 mm. Platform made of MDF panel, surface in beech finish. Powder coated in gentian blue RAL 5010.
Tyres made of thermoplastic rubber on plastic rims with high-precision deep groove ball bearings, grey, non-marking, Ø 160 mm, 2 swivel castors with central EasySTOP brake and 2 fixed castors, swivel castors with foot protection.
Max. load 400 kg.
Technical data
| Max. load | 400 kg |
|---|---|
| Platform length | 880 mm |
| Platform width | 500 mm |
| Loading height | 255 mm |
| Length | 975 mm |
| Width | 500 mm |
| Height | 975 mm |
| Push handle height | 975 mm |
| Frame colour | gentian blue RAL 5010 |
| Wheel type | thermoplastic rubber |
| Wheel diameter | 160 mm |
| Wheel bearing | precision deep groove ball bearing |
| Wheel fittings | 2 swivel castors, 2 fixed castors |
| Weight | 25 kg |
| Platform material | beech finish |
| Frame material | steel |
| Panel height | 515 mm |
| Mesh size | 50 x 50 mm |
| Product type | platform trucks |
| Supplied | partially assembled |
