PU/PU elastic tyre, brown / green wheel Ø x width 125 x 50 mm, 2+ items
- High maximum load
- Smooth running and non-marking
- Low roll resistance, low rolling resistance, non-marking
- Hardness 75 / 93-95 Shore A
- Temperature resistant from –20 °C to +60 °C
Non-marking
Low rolling resistance
High maximum load
Ref.: 568313 10
PU/PU elastic tyre, brown / green, wheel Ø x width 125 x 50 mm, 2+ items, fixed castor
Properties
Structure: fixed castor, Weight [kg]: 2.01
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Fast delivery
We will be happy to help you
export@kaiserkraft.com
Monday to Friday from 8.00 am to 4.00 pm CET

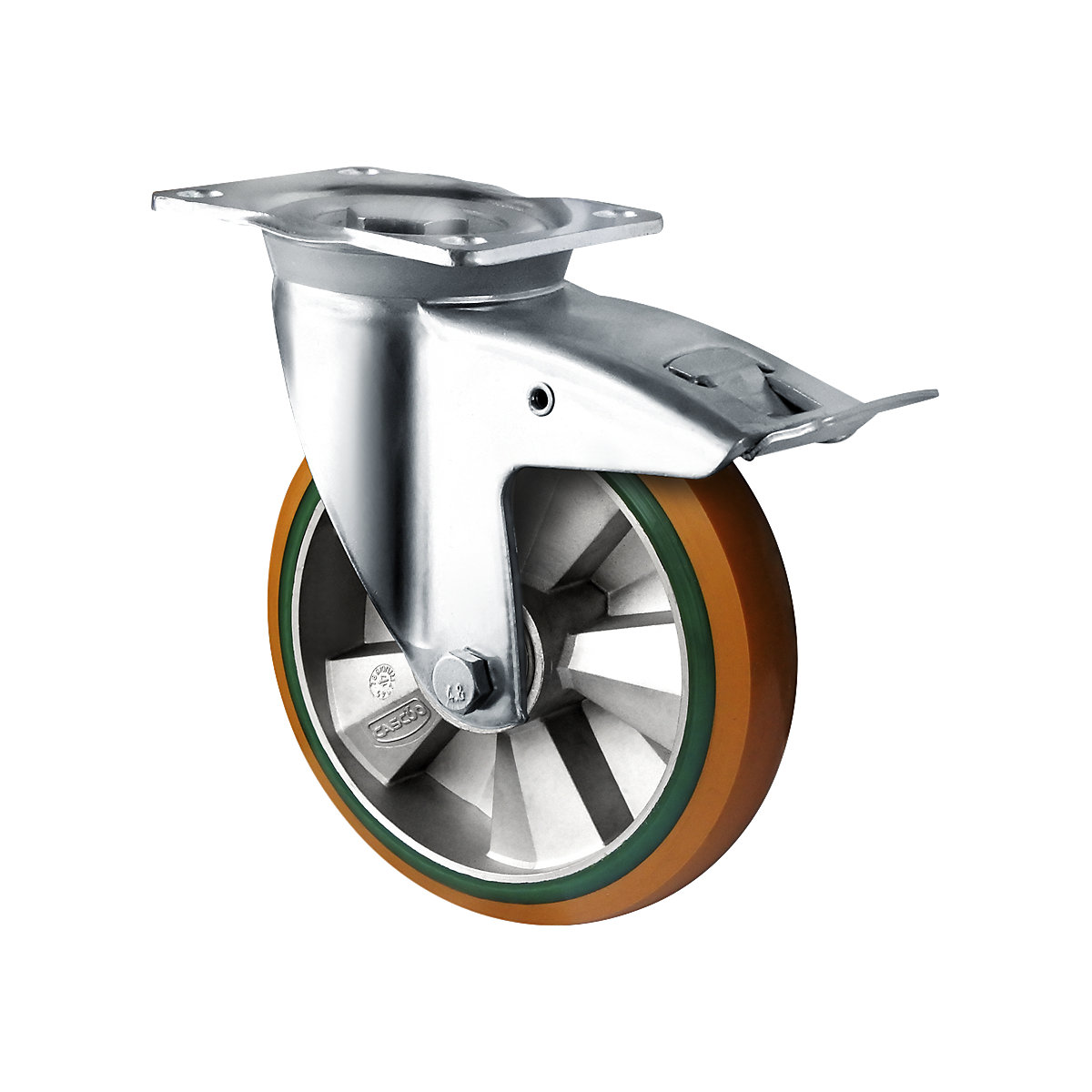

Product description
Sheet steel housing, electrolytically zinc plated in blue. Swivel bearing with dual turntable bearing. Bolted wheel axle. Double ball bearing.
- High maximum load
- Smooth running and non-marking
- Low roll resistance, low rolling resistance, non-marking
- Hardness 75 / 93-95 Shore A
- Temperature resistant from –20 °C to +60 °C
Non-marking
Low rolling resistance
High maximum load
Technical data
| Supplied | assembled |
|---|---|
| Overall height | 170 mm |
| Type of mounting | with top plate |
| Material of rim | aluminium |
| Housing material | steel |
| Housing surface | zinc plated by galvanization |
| Hub bore | 20 mm |
| Hub length | 60 mm |
| Fixed castor plate dimensions | 135 x 110 mm |
| Swivel castor plate dimensions | 135 x 110 mm |
| Product type | heavy duty castors |
| Wheel width | 45 mm |
| Wheel diameter | 125 mm |
| Wheel material | polyurethane (PU) – elastic |
| Screw hole spacing | 105 x 84/76 mm |
| Screw hole diameter | 12 mm |
| Shore hardness | 75 A / 93 – 95 A |
| Temperature resistance | –20 °C to +60 °C |
| Max. load at 4 km/h | 300 kg |
